Mischer HENSCHEL FM1500 / KMH 4500

PVC Compounding Plant – Hot/Cold Mixer
A hot/cold mixing system including accessories is offered.
The control system (PLC) is outdated and needs to be rebuilt.
The plant is still installed and is sold as is from its current location.

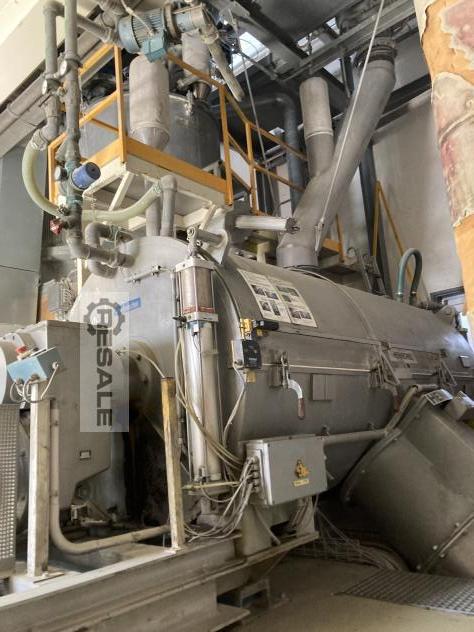

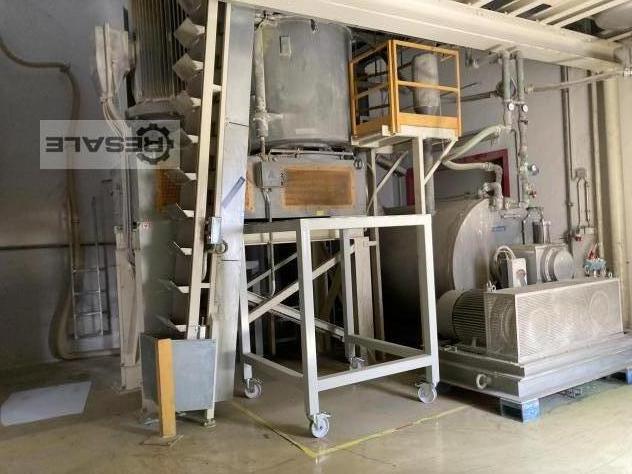

Hot Mixer:
Henschel Fluidizing Mixer FM 1500 A

Motor power: 180/280 kW, 2-speed, 750/1500 rpm

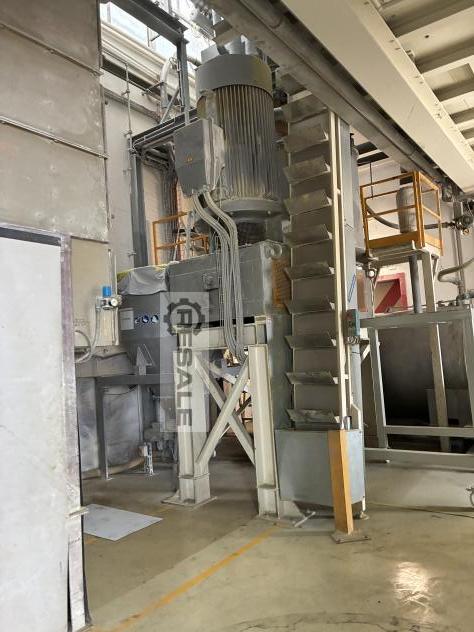

Cold Mixer:
Henschel Cooling Mixer KMH 4500

Double jacket
6 mixing tools
77 rpm
Motor power: 55 kW

Accessories:

Liquid scale 25 kg
Liquid scale 250 kg

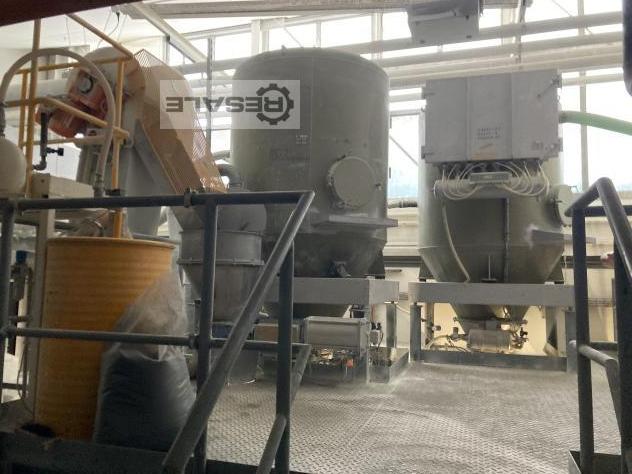

Weighing container for powder materials 650 kg
Conveyor belt for bag feeding

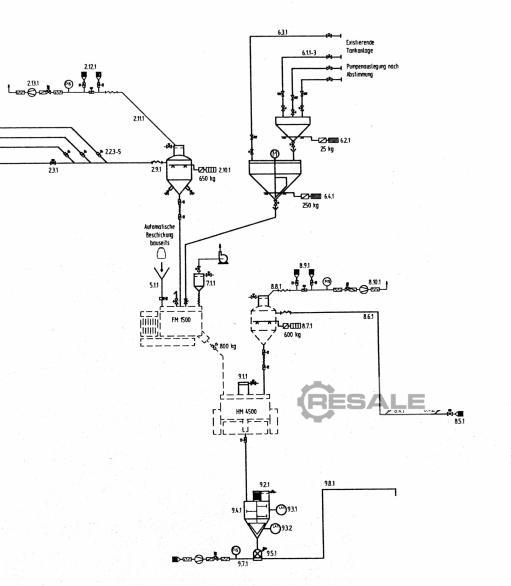

Big bag feeding station with discharge aid and rotary valve (not shown in the P&ID)
Weighing container for plastic regrind 600 kg

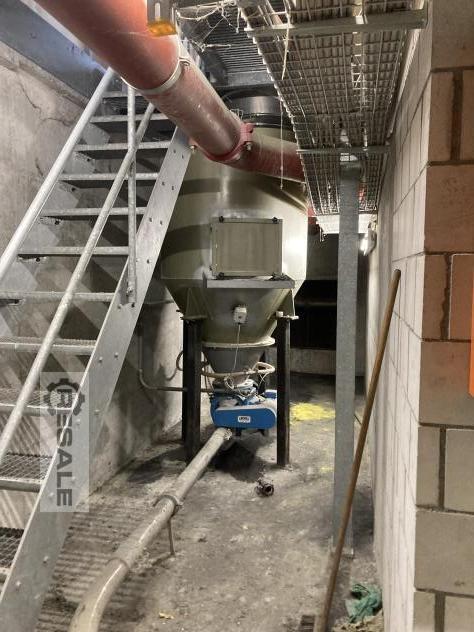

Sender and buffer tank for discharge from the cooling mixer

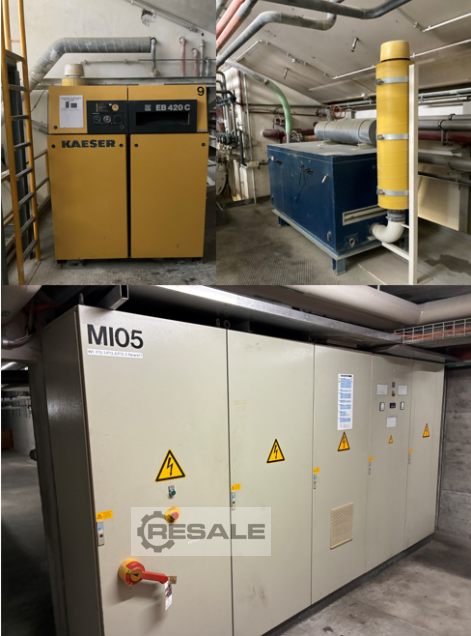

Suction conveying blower Kaeser EB 420 C
Suction conveying blower (blue)
Verkäufer Angebot Nr. resale MI05
