CNC Bearbeitungszentren HERMLE C 600 U

Machine-Details
Stock-No. 1105-03677
Type of machine Machining Center - Universal
Make HERMLE
Type C 600 U
Year of manufacture 2000
Type of control CNC
Storage location HAGUENAU
Country of origin Germany
Delivery time IMMEDIATELY
Freight basis ex site

Technical details
x-travel 600 mm
y-travel 450 mm
z-travel 450 mm

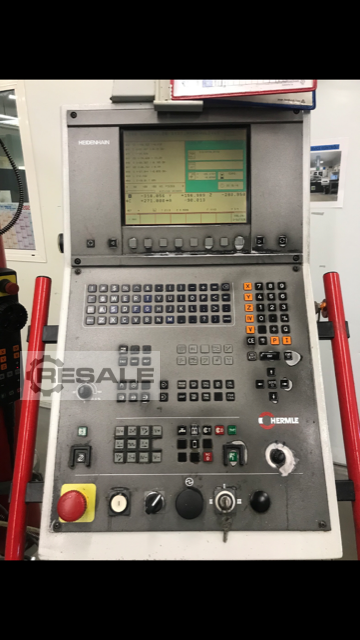

control TNC 430 Heidenhain
turning speed range - main spindle 16000 min/-1
power capacity - main spindel 7 / 9 kW
tool taper SK 40
spindle bearing diameter 70 mm
measuring system direct
Resolution 0,001 mm
table surface area Ø 280 mm
max. table load 250 kg
Swivel range +/- 110 °
rotatable 360000 °
number of toolpositions 30 pos.
max. tool diameter 80 (125) mm
change-time chip to chip 5,5 sec
rapid traverse ( X / Y / Z ) 35 / 35 / 35 m/min
feed speeds 1 - 30.000 mm/min
Feed force 6 kN
total power requirement 30 kVA
weight of the machine ca. 6,5 t
dimensions of the machine ca. 3,5 x 3,5 x 2,8 m
Accessories
Documents
Coolantsystem
hydraulic system
test probe
elektr. hand wheel
Automatic Tool Changer 30 pos.
Additional information
5 Axis CNC - Machining Center Universal
HERMLE - C 600 U
TNC HEIDENHAIN TNC 430

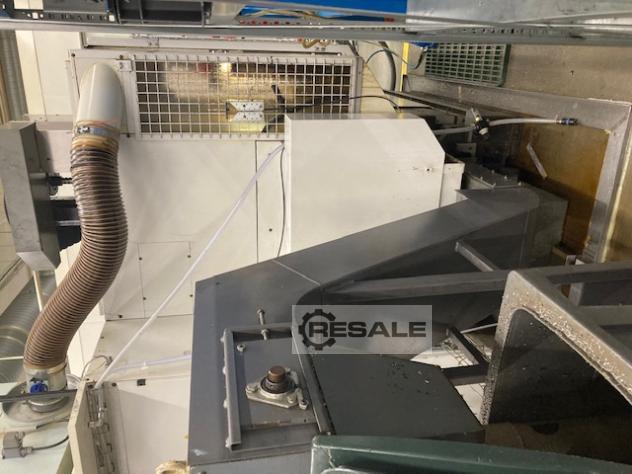

CHIP CONVOYER
16000 RM
MAGASIN 30 POSITIONS
Verkäufer Angebot Nr. resale 160258845
