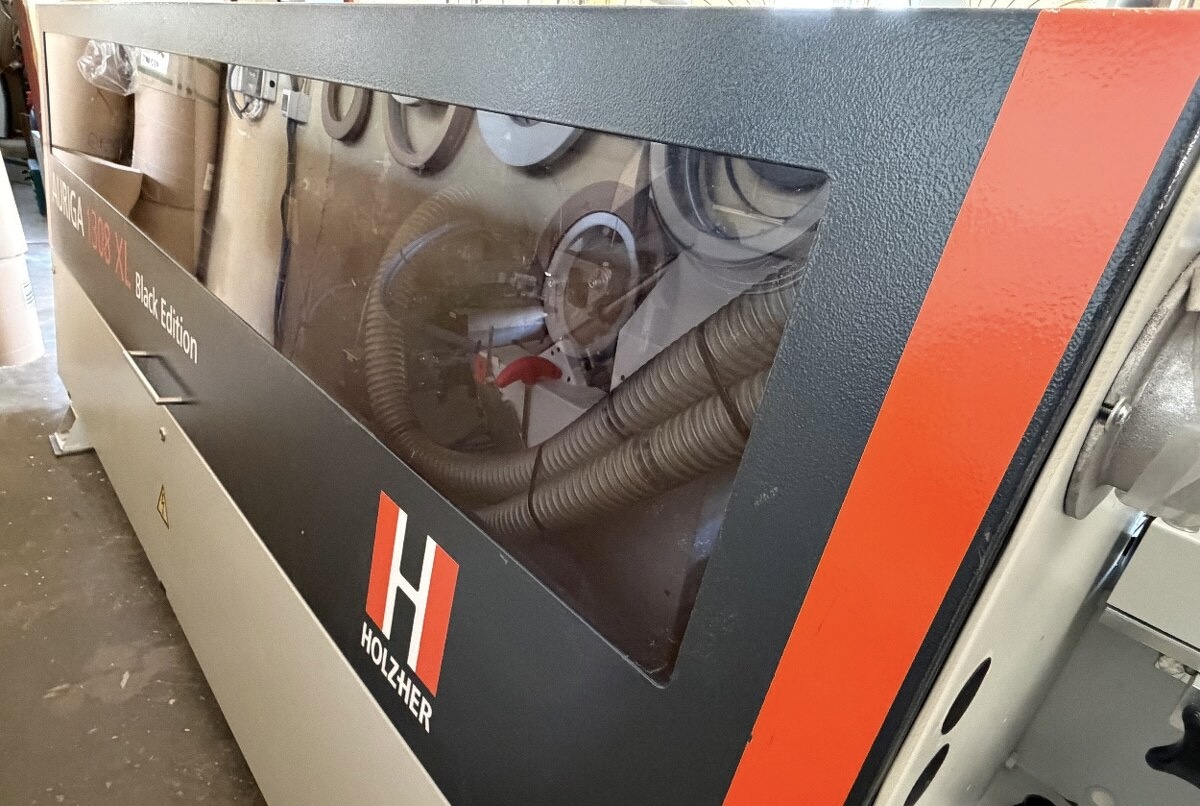

Edge banding machine
Type: AURIGA 1308 XL Black Edition
Manufacturer: Holz-Her
Year: 2018
Avaílable: 7/2026
Edge thickness (rolled material): 0.4 – 3 mm
Edge thickness (strip material): 0.4 – 8 mm
Edge cross-section: max. 6 × 42 mm
Edge height: max. 65 mm
Workpiece thickness: 8 – 60 mm (with corner copying 12 – 60 mm)
Workpiece width: min. 65 mm
Workpiece length: min. 160 mm (without corner copying) / min. 180
mm
Feed speed: 10 m/min
Equipment and control:

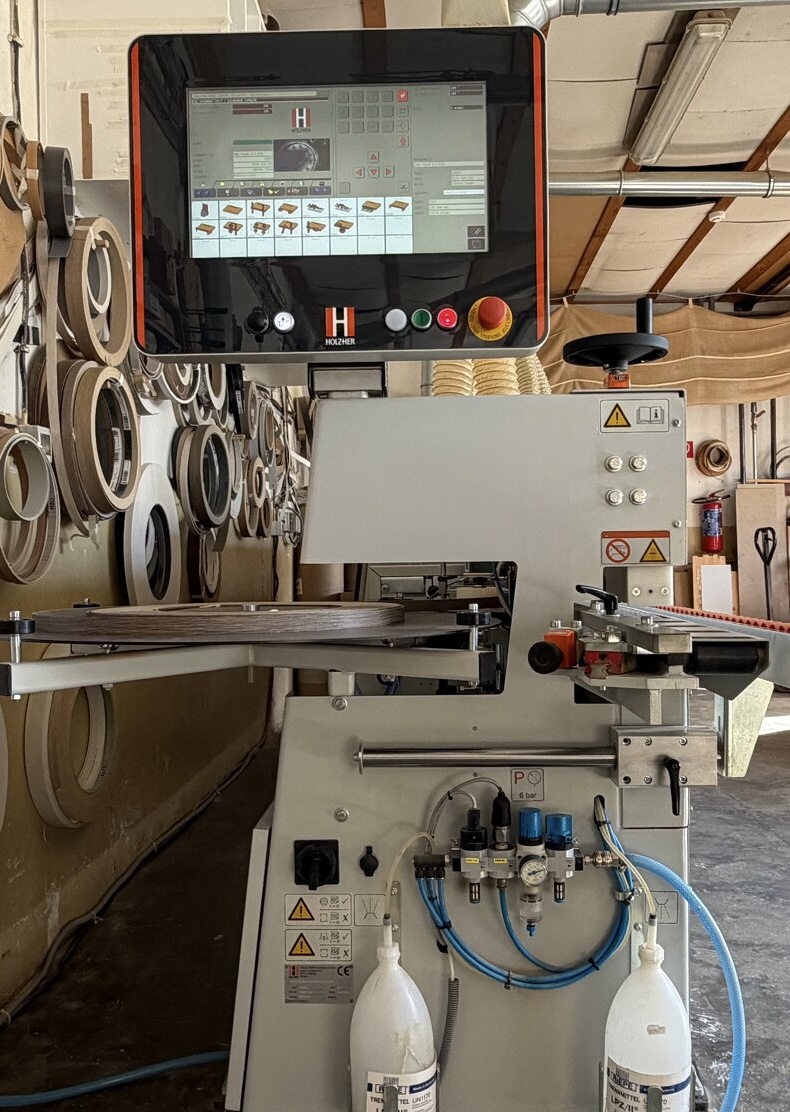

Edge Control 19 control system with 18.5” touch color display
Rotating and tilting control panel at eye level
Motorized adjustable pressure bridge
Gluing technology – iTronic:
Adaptive pressure and glue dosage control
Automatic fine-tuning according to material type
Optimization of edge thickness and glue type for best results
Automation package includes:
Glue quantity control
Adaptive trimming knife
Adaptive pressure unit
Glue remaining indicator
Fully automatic PUR flushing routine
Aggregates and units:
Pre-milling unit FG201: 2 milling heads (counter-rotating and
synchronous), diamond cutters Ø70×64×30 mm (Z2+2).
Edge feeder 1903: automatic strip transport (capacity up to 40 mm).

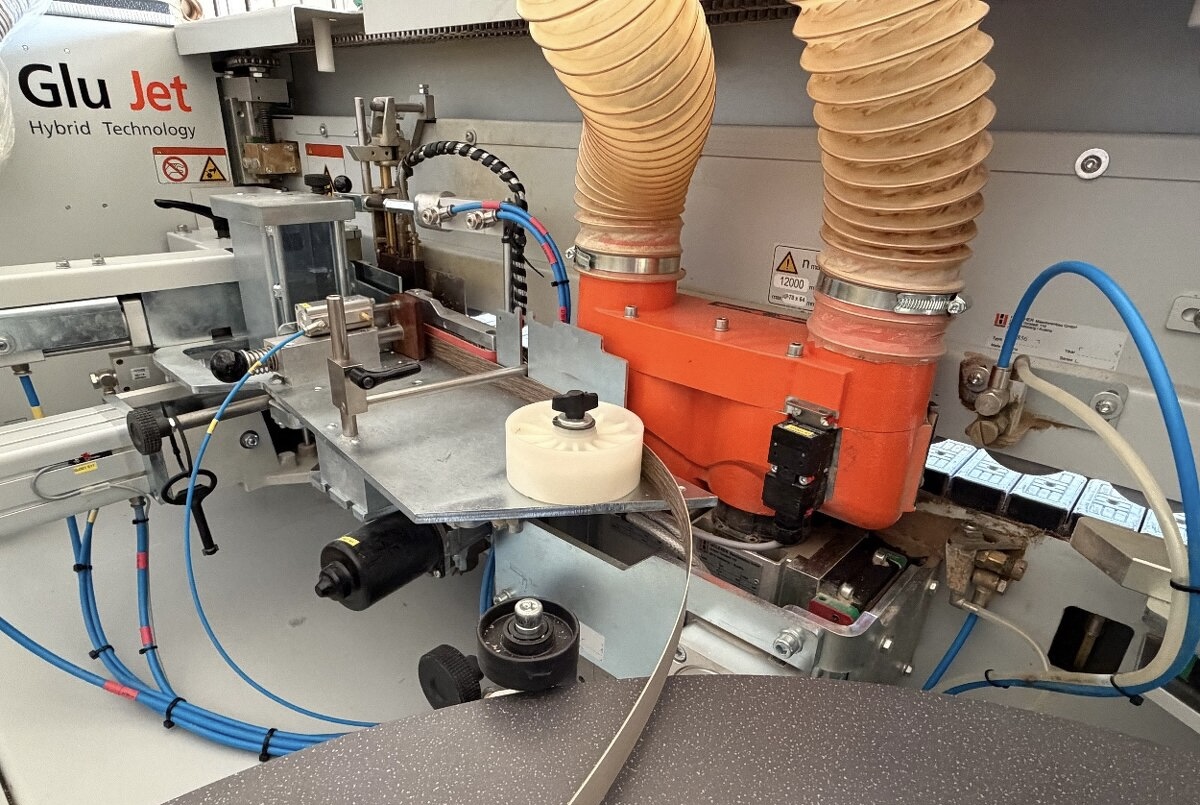

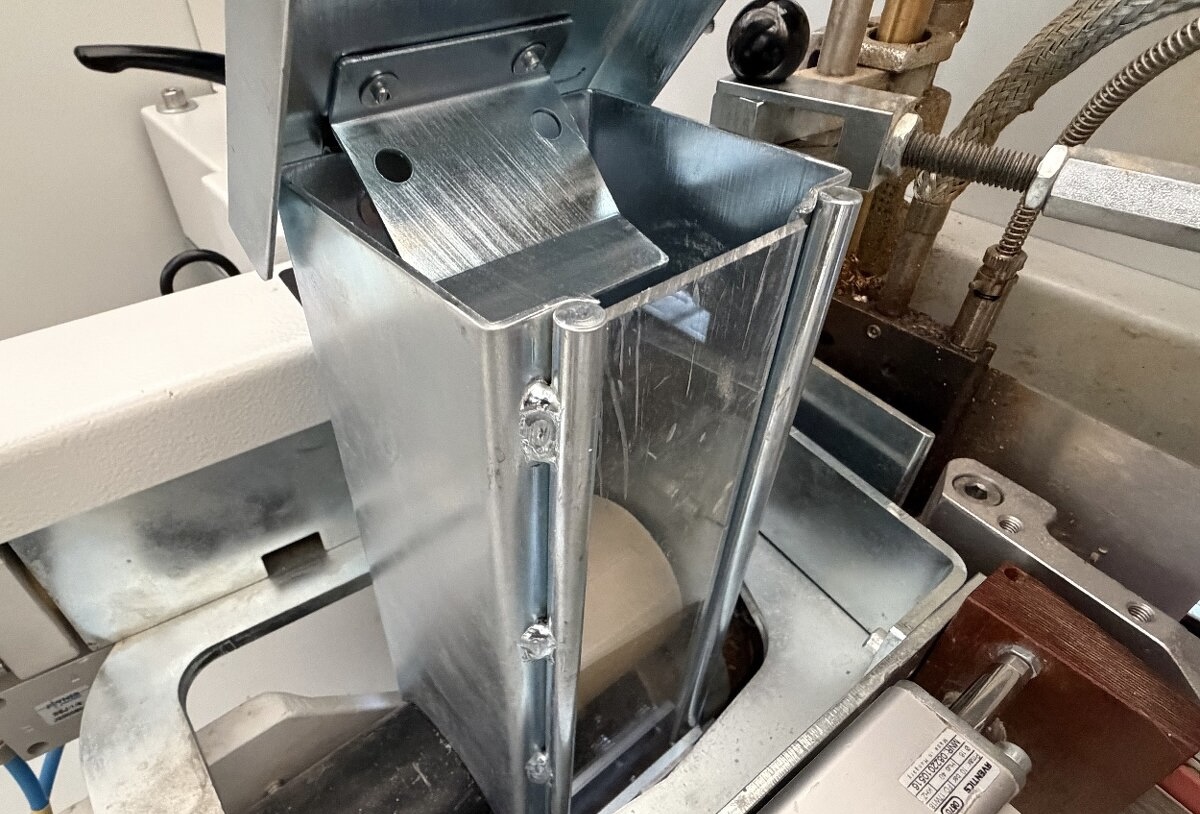

Gluing system Glu Jet GJ301 (2.3 kW):
Hybrid technology for EVA and PUR adhesives.
Possibility of using cartridges and granules (1.4 kg cartridge / 1.5
kg granules).
Clean adhesive joint along the entire length of the board.
Pressure unit 1912-3: pneumatic (1 driven roller + 2 conical
rollers).
Trimming unit 1918: (2 × 0.45 kW, 12,000 rpm), rotating 0/10°.
Multifunctional milling unit 1827 MOT4:
Trimming of the upper and lower longitudinal edge.
Pneumatic rotating mechanism and pneumatic tilting for 15° bevel from
the control unit.
Motorized positioning of the copying shoes and adjustment of the
milling motors.
Pneumatic vertical copying rollers with fine adjustment in 0.1 mm
increments for overlap milling.
Finishing and special units:
Corner rounding unit (1827): (1 × 0.35 kW, 12,000 rpm). Corner
copying function up to an edge thickness of 3 mm, with DIA tool R=2
mm.
Scraping unit 1929 MOT4: including High-Gloss package with motorized
adjustment of the horizontal copying rollers and pneumatic adjustment
(separately up and down).
Surface scraper FK701: with pre- and scraping for perfect removal of
adhesive residues.
Polishing unit 1940: (2 × 0.09 kW, 1,400 rpm) with two textile discs,
tiltable in the range of 0 - 5° for finishing and edge shine.
Accessories: Air nozzles for a clean machining process.
Machine in good condition, fully functional, under power
