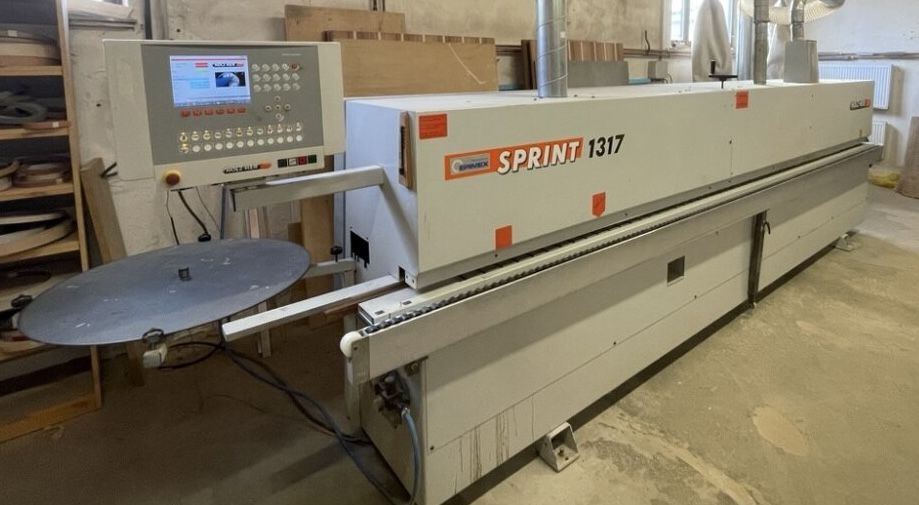

HOLZ-HER SPRINT 1317 Kantenbandmaschine

Edge banding machine

Type: Sprint 1317

Manufacturer: Holz-Her

Year: 2006

Edge Control with 18.5 16:9 color touch screen

rotary control panel,

memory for programs,

motorized adjustment of the pressure beam,

feed using a transport chain,

feed 8–18 m/min

extendable support surface for workpieces

Trimming milling unit 1961,

diamond cutting cutter in right- and left-hand operation,

automatic adjustment to the height of the workpiece

Edge feeding 1903

Pre-cutting up to 3 x 45 mm (depending on the material)

Adhesive system 1905 Multi-System

automatic adjustment of the glue height using the touch nozzle,

Pressure regulator for adjusting cartridge pressure,

the possibility of using PUR adhesives,

pressure device 1913 MOT,

1. cylinder driven

Trimming unit 1918 with pneumatic adjustment

Pneumatic cut-off saw rotating

Multifunctional unit 1824 MOT 4

with a multifunctional cutter with 1, 2, 3 mm radii

Edge copying unit 1832

edge copying function up to an edge thickness of 3 mm

Radius retractor blade 1929 MOT 2

with motorized adjustment of horizontal shaping rollers

with pneumatic adjustment (separately for upper and lower part)

Swarf magazine for radius retracting blade,

Flat draw blade 1964

for removing adhesive residues and a clean adhesive joint

with suction covers

Spraying device 1856 for the entrance and exit area

Polishing unit 1940

for additional cleaning and polishing of edges

Edge thickness from the roll: 3 mm,

Thickness edges in strips: 8 mm,

max. edge thickness for copying: 3 mm,

workpiece thickness: 45 mm,

workpiece thickness for edge copying: 45 mm,

min. workpiece length: 180 mm,

feed speed: 8–18 m/min,

distance of support surface: 470 mm,

diameter of the edge plate: 800 mm,

Cutting knife for the edge from a roll up to: 3 mm,

heating time: 3.5 min,

cutting cutter power: 2 x 2 kW,

power of the trimming saw: 2 x 0.22 kW,

power of the milling station: 2 x 0.35 kW,

edge copying power: 0.22 kW,

diameter of the extraction nozzle of the cutting cutter: 120 mm,

average suction nozzle of the milling unit: 70 mm,

diameter of the extraction throat of the retracting blade: 70 mm,

total length: 5,350 mm,

dimensions: 5,350 x 1,669 x 1,940 mm

Machine in good condition, under power
