A high-performance Homag Edgebanding Line paired with a Ligmatech
Automatic Return System. This combination allows for a "one-man
operation," where the machine applies the edges and then automatically
sends the panels back to the operator for the next pass.
Below is a professional draft for an online listing.
---------------------------------------------------------------

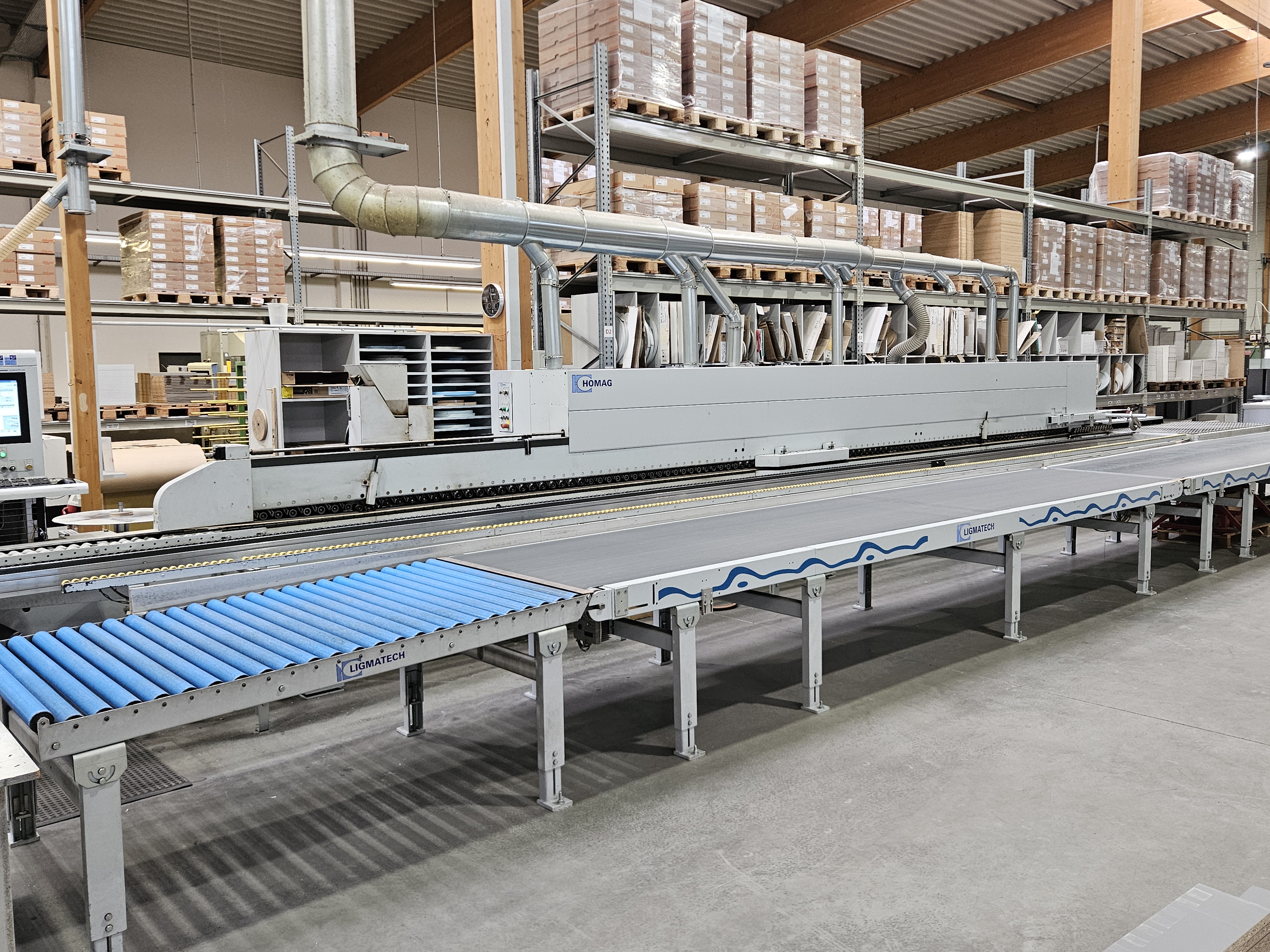

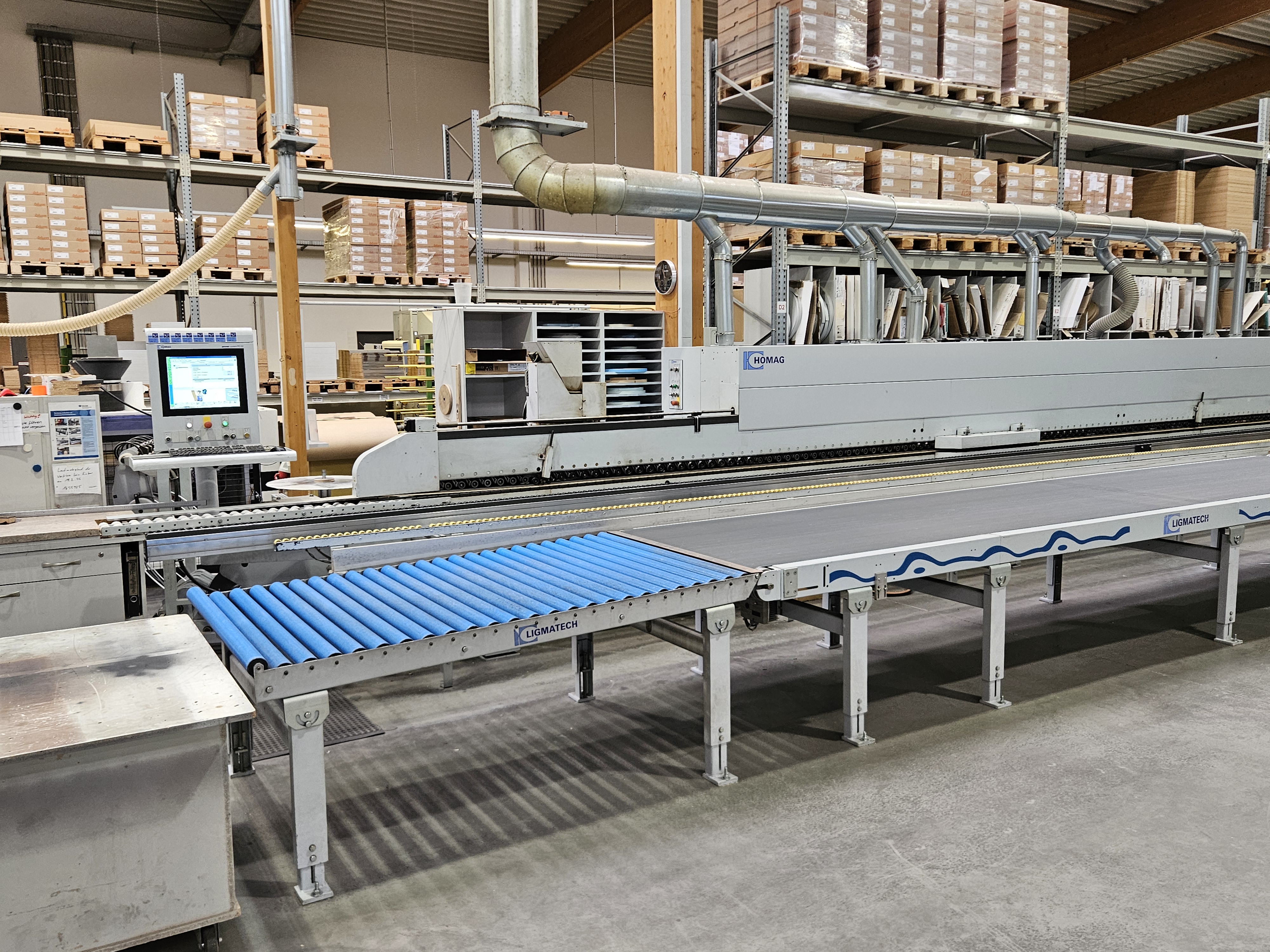

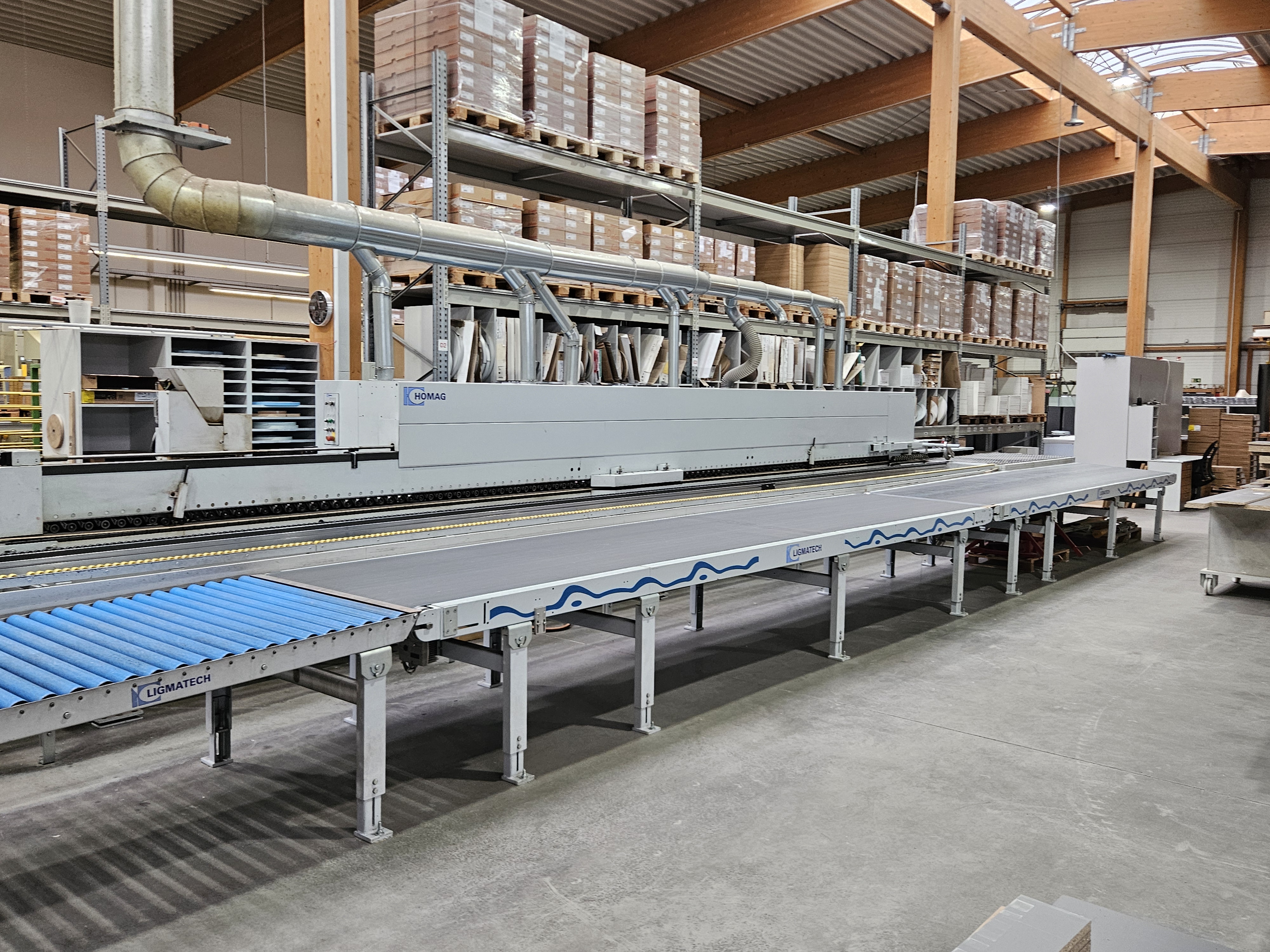

For Sale: 2007 Homag Optimat Edgebanding Cell
Featuring: Homag KAL 310 Edgebander & Ligmatech ZHR 05 Return
System
This is a complete, industrial-grade edgebanding solution manufactured
in Germany. The set consists of a high-speed Homag KAL 310
single-sided edgebander and a Ligmatech ZHR 05 Boomerang return
conveyor. This setup is designed for high-volume production,
significantly reducing labor costs by allowing a single operator to
manage the entire infeed and outfeed process.

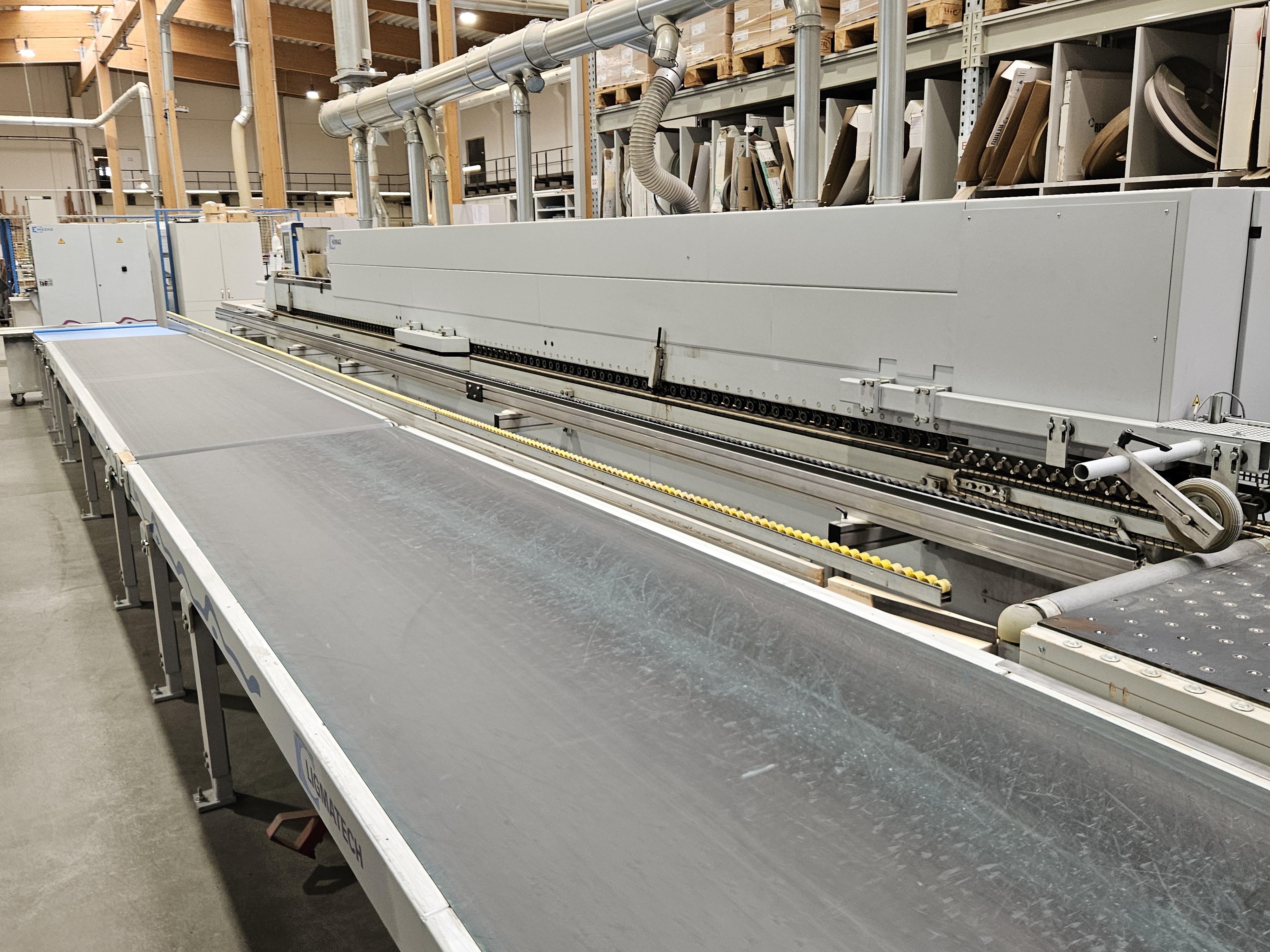

Machine 1: Homag Optimat KAL 310/10/S20/S2
- Type: Professional Single-Sided Edgebander
- Year of Manufacture: 2007
- Feed Speed: Up to 24 m/min (High-speed production)
- Workpiece Thickness: 12 mm – 60 mm
- Edge Thickness: 0.3 mm – 3 mm (Coils) / Up to 20 mm (Solid Wood
Strips)
- Key Features:
- PowerControl PC 22: User-friendly interface for program storage and
unit control.
- Pre-Milling Unit (S2): For a perfect, chip-free joint line.
- Corner Rounding Unit: For finished processing of front and rear
edges.
- Glue System: Hot-melt application (EVA/PUR compatible).
- Finishing Units: Includes scraping, buffing, and cleaning agent
spray units.
- Power: 400V, 50Hz, 3-Phase (59A).
---------------------------------------------------------------
Machine 2: Ligmatech ZHR 05/L/105 "Boomerang"
- Type: Automatic Panel Return System
- Year of Manufacture: 2007
- Configuration: Left-hand return (L)
- Function: Automatically receives panels from the outfeed of the
edgebander and returns them to the operator via a motorized conveyor
belt and air table.
- Max Panel Dimensions: Approx. 2500 mm x 1450 mm
- Weight Capacity: Handles panels up to 1600 kg (system total)
- Benefit: Enables continuous loading by a single person; eliminates
the need for a second worker at the outfeed.
---------------------------------------------------------------
Hours in picture.
Machine in mint condition. Always serviced by Homag.
Spare parts and accessoires included. As seen in pictures.
