ultrafeine Materialien HOSOKAWA Pulvis PV450

Model PV450 from HOSOKAWA ALPINA

dry agitating media mill for ultra fine powders

Capacity is 15kg/h for alumina

Mill drive: 11KW

classifier drive: 3,7 KW

Grinding media: 25 L

air flow rate: 360-520 m3/h

was used for aluminium powder

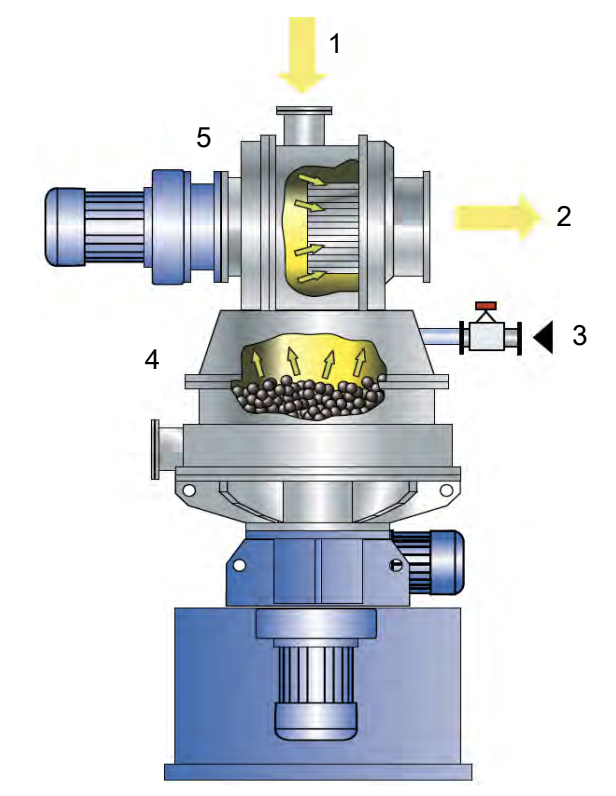

The PULVIS is an energy-optimised grinding system for ultra-fine materials.

The vertical, dry agitator bead mill features an integrated dynamic classifier.

Its strength is the ultrafine and low contamination grinding of hard materials.

Overview of main components :

Supply tank Customer supply

Jaudt 250/300 cellular wheel valve

Dosing screw with Scholz control

WAREX DN150 sequential valve (feed)

Pulvis PV450 with 140ATP Hosokawa Alpine AG

Distribution for rinsing air Kilger GmbH

Cooling water distribution Kilger GmbH

Side-channel compressor for bottom air Gardner Denver

HEPA filter Denco Happel

Complete automatic filter Nedermann Mikropul

Sequential valve DN150 (filter) WAREX

Side channel compressor for process air Gardner Denver

Safety screening machine Customer supplied

Product tank with weighing station Customer supplied

Cooling system for cooling water

supplied by customer

Electrical cabinet Baader Schaltanlagen

Platform Customer supplied
