Manufacturer: Hugo Beck
Model: Super 400 K5
Year of Manufacture: 2010

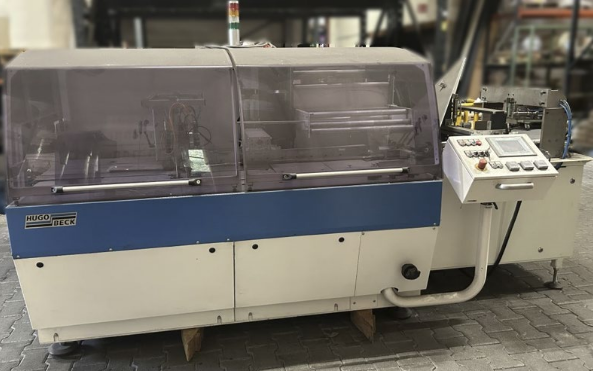

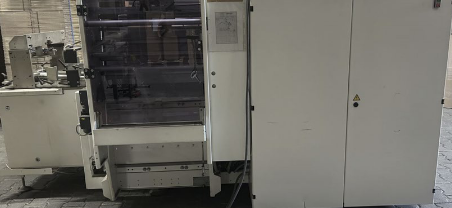

Machine Type : Horizontal Flow Wrapping Machine
Used horizontal flow wrapping machine in good condition. Suitable for
wrapping a wide range of products in polyolefin, PE, or PP film.
- Product dimensions: up to 480 mm wide, 150 mm high, from 40 mm in
length.
- Output: up to 5,000 cycles per hour.
- Working height: 820 to 900 mm
- Machine weight: approx. 2,100 kg.
- Film roll: max. diameter 400 mm, max. width 600 mm.
- Power: approx. 12 kW
- Supply voltage: 3 x 400/230 V, 50 Hz.
Equipment included: film folding device FF700-IN, print mark control,
seal welding with euro slot, longitudinal weld overlap 10 to 30 mm,
press belt, pneumatically controlled press roller.
Full documentation available: operator manual, electrical diagrams,
spare parts lists, maintenance schedule, machine drawings, and
third-party component documentation.
