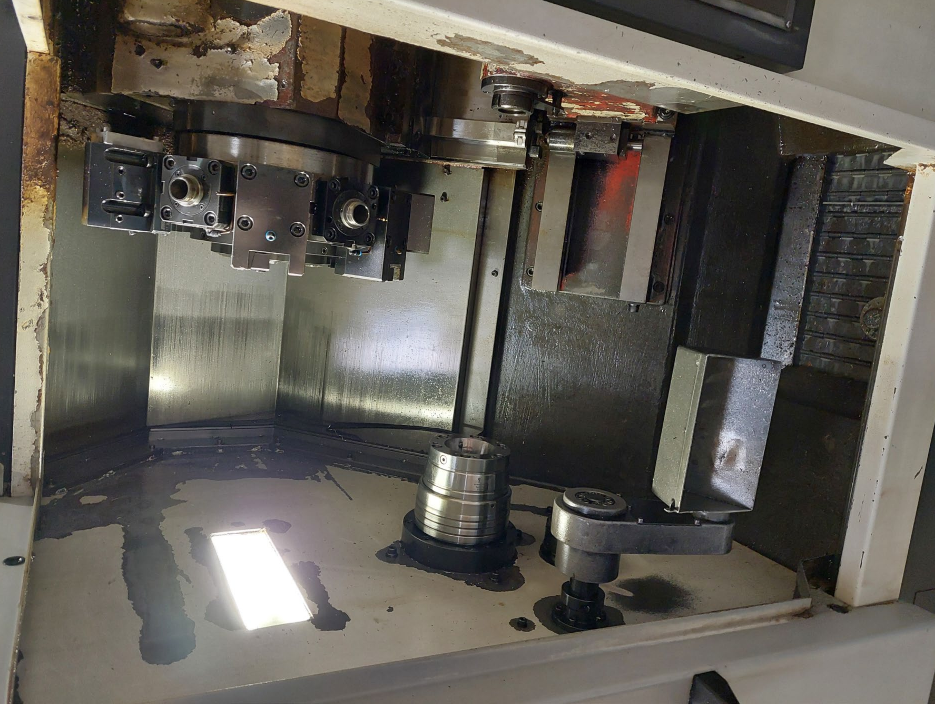

Manufacturer: Hwacheon
Model: CUTEX 160 with bar feeder (Samsys Multi 3000)
Year of Manufacture: 2008
Working Range
- Swing over bed 550 mm
- Max. turning diameter 300 mm
- Standard turning diameter 165 mm
- Max. machining length 300 mm
Spindle
- Standard spindle nose A2-5 (DIN 55026)
- Max. spindle speed 6,000 rpm
- Spindle bore 56 mm
- Main Drive
- Drive power (AC) 100% / 50% ED 5.5 / 7.5 kW
Feed Drives
Rapid traverse 36 m/min
Feed drive power (X/Z) 1.6 kW

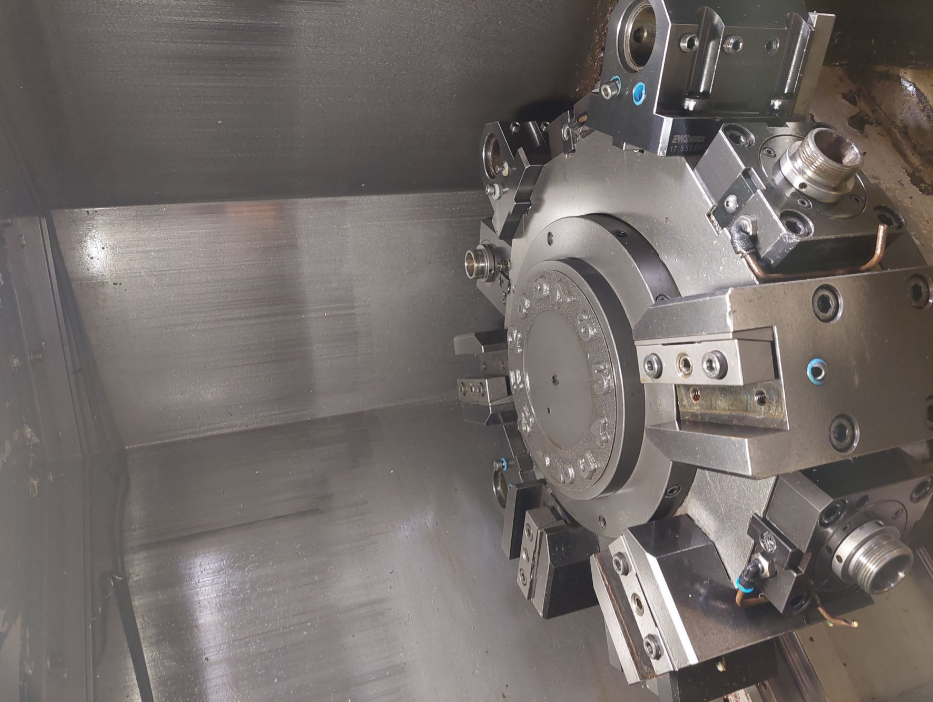

Tool System
Turret with direction logic
Number of tool stations 12
Tool holder size 25 x 25 / 32 mm
Turret disc option VDI 30
Index time station to station 0.2 sec.
Index time chip to chip 1.6 sec.
Clamping System
Hollow clamping cylinder, through-bore draw tube 46 mm
Tailstock
Quill diameter 60 mm
Quill travel 80 mm
Taper MK 4
General Machine Data
Machine weight 3,300 kg
Machine dimensions (L x D x H) 2 x 1.7 x 1.7 m
Electrical connection power 25 KVA
