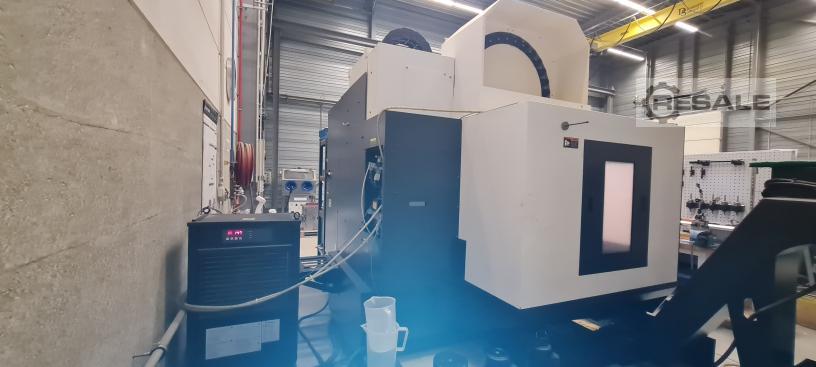

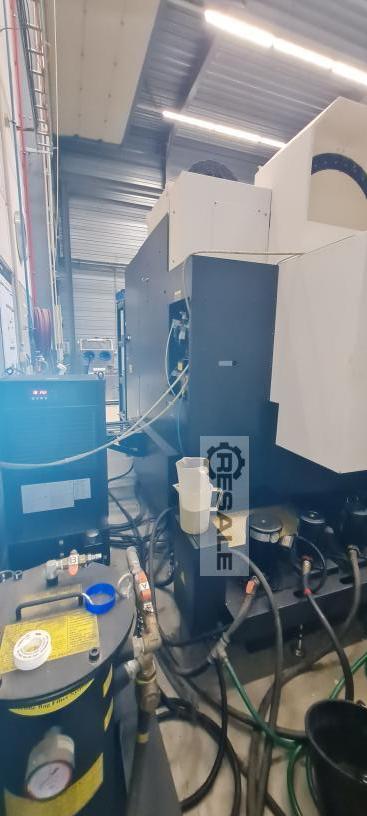

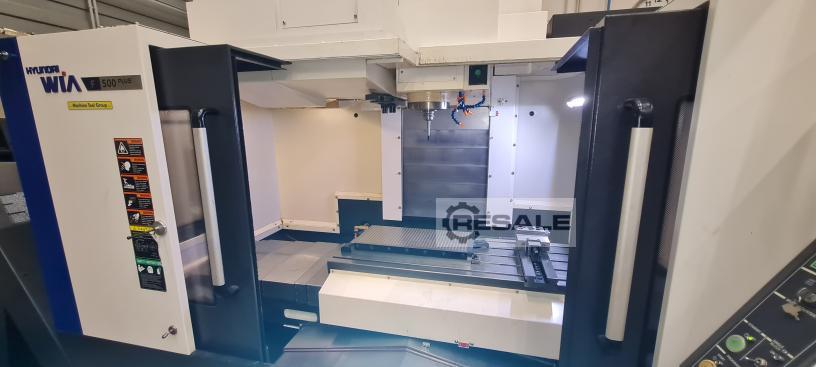

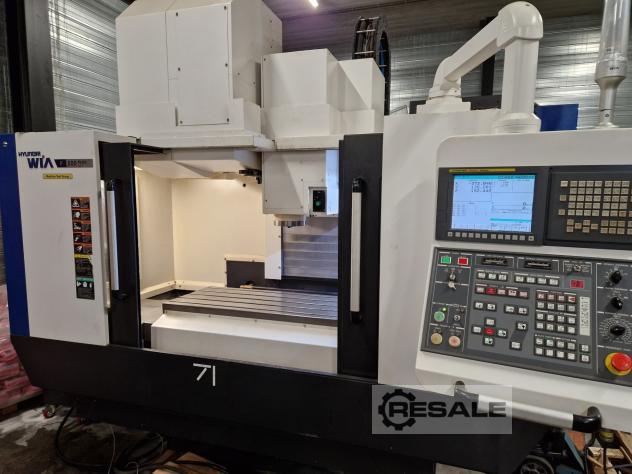

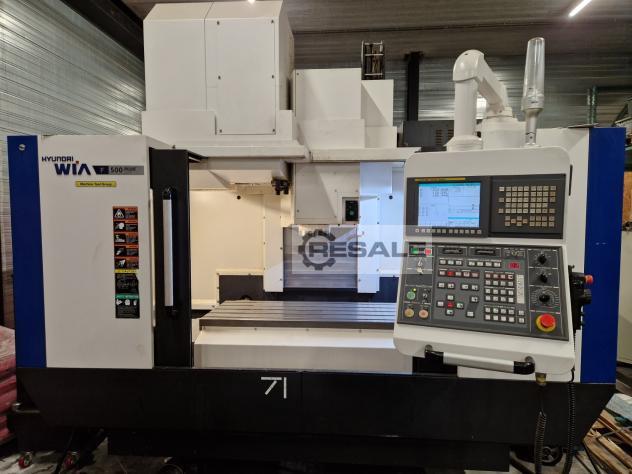

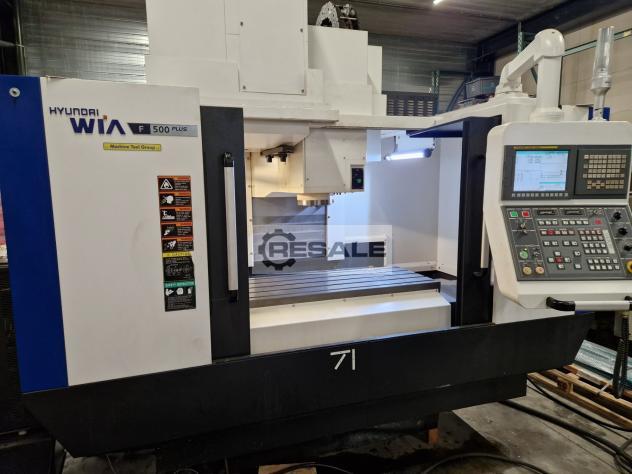

CNC Bearbeitungszentren HYUNDAI WIA F500 Plus

x-Weg:1060 mm

y-Weg:510 mm

z-Weg:635 mm

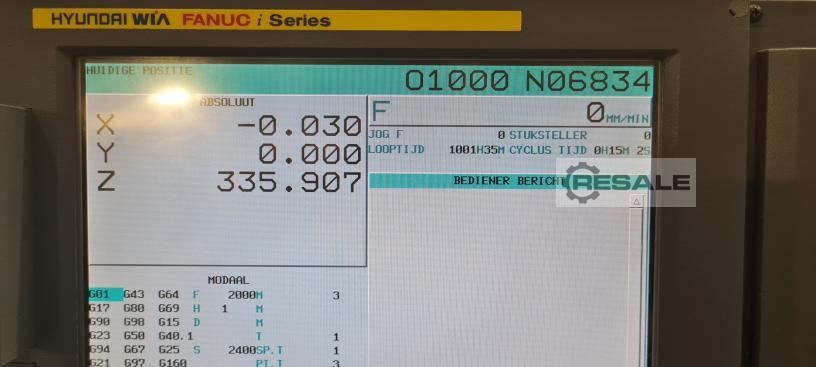

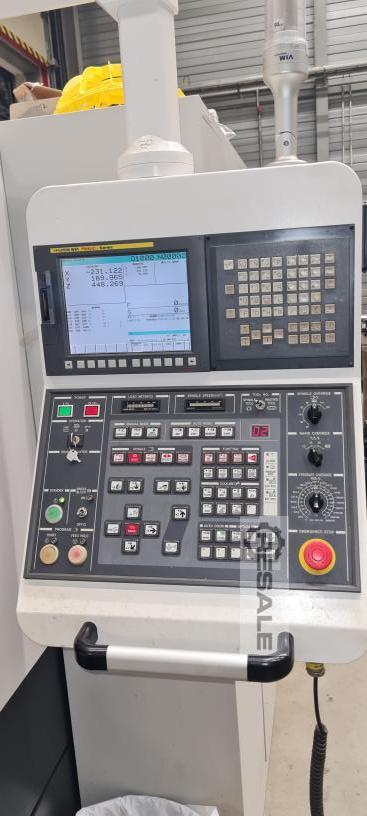

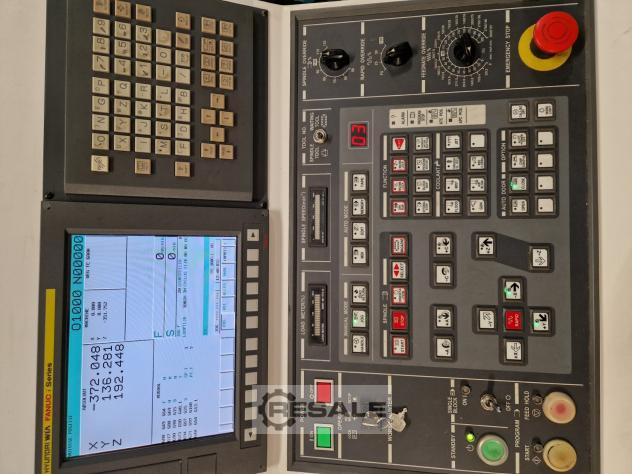

CNC controller: FANUC

Axes
X-axis travel mm: 1.060
Y-axis travel mm: 510
Z-axis travel mm: 635
Distance spindle nose – table surface mm: 150 – 785

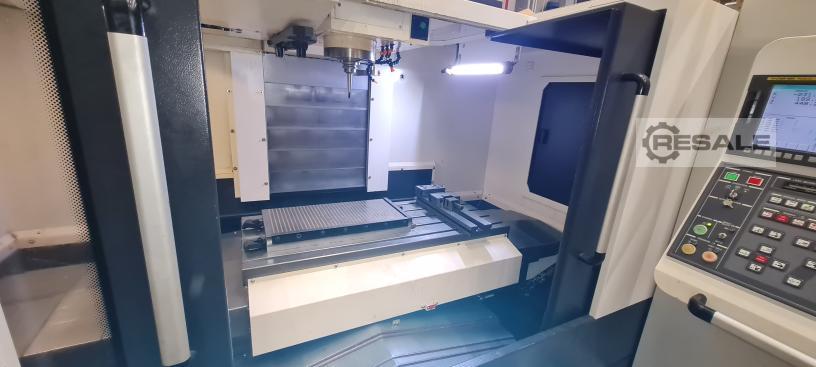

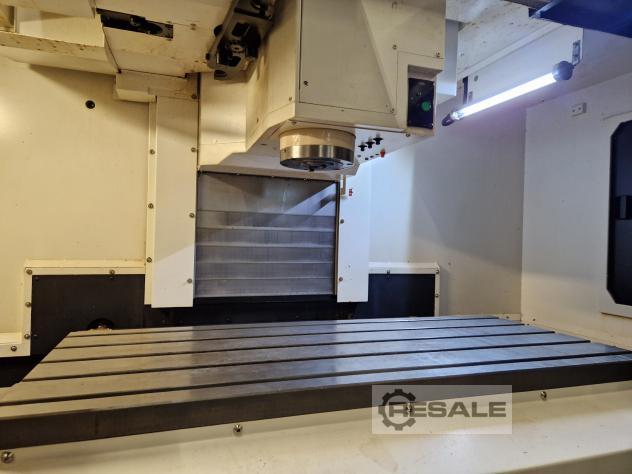

Worktable
Table dimensions mm: 1.200×500
Max. workpiece weight kg: 800

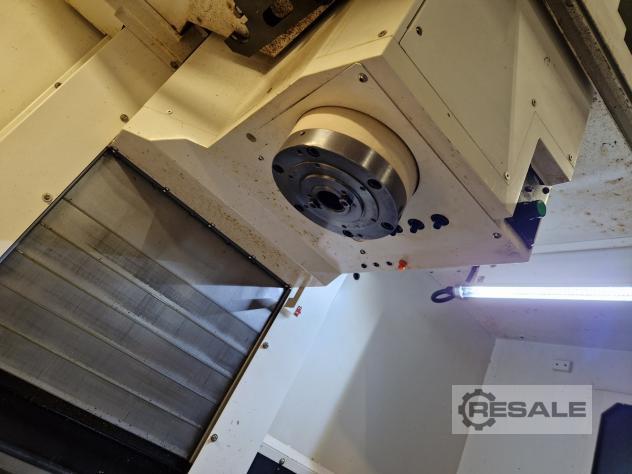

Spindle
Spindle speed rpm: 10.000
Spindle drive power kW: 15/11
Spindle torque Nm: 286/143

Tool magazine slots: 30
Max. Tool Diameter
With free neighboring places mm: 150
With occupied neighboring places mm: 90
Max. Tool Length mm: 300
Max tool weight kg: 8
Tool-to-tool time s: 4
Chip-to-chip time s: 8

Equipment
Chip conveyor
Transformer

Electronic handwheel


Rated power kVA: 30

Basic machine dimensions / weight
Length mm: 4.063
Width mm: 2.670
Height mm: 3.096
Weight kg: 7.500

Spannmittel nicht einbegriffen/fixtures not included
Verkäufer Angebot Nr. resale 167057665
