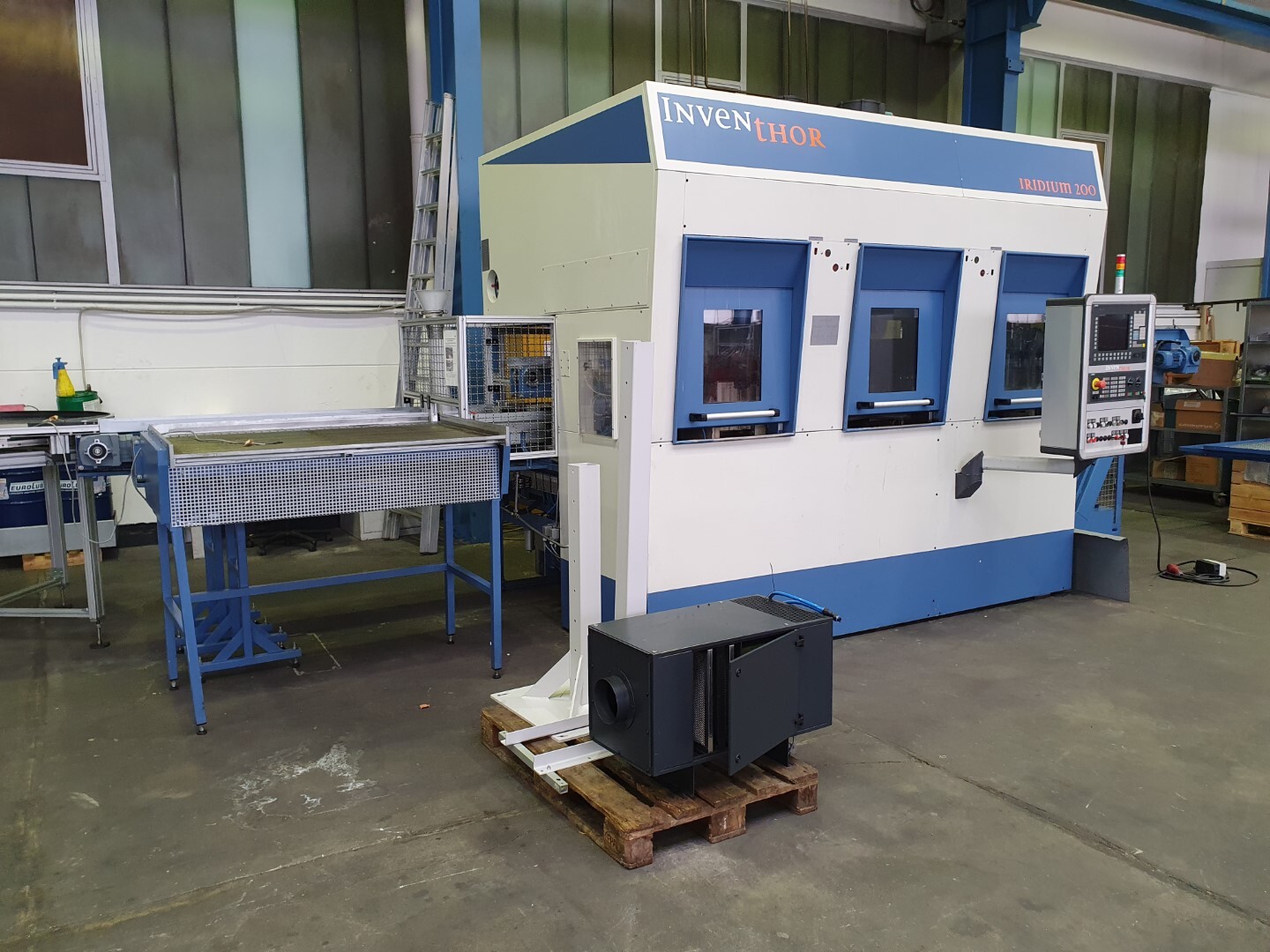

Inventhor Iridium 200 Drehbank

General Features:

- Machine Type: 4-axis vertical lathe.
- Manufacturer: Inventhor
- Model: Iridium 200
- Operation: Designed for series production with dual movable main spindles allowing workpiece change during production time.
- Applications: Ideal for pre-formed chuck workpieces, suited for short machining times and medium to large batch sizes.
- Two-Sided Machining: Supports machining with different cycle times for operations OP10 and OP20.
- Only 492,000 machine cycles,

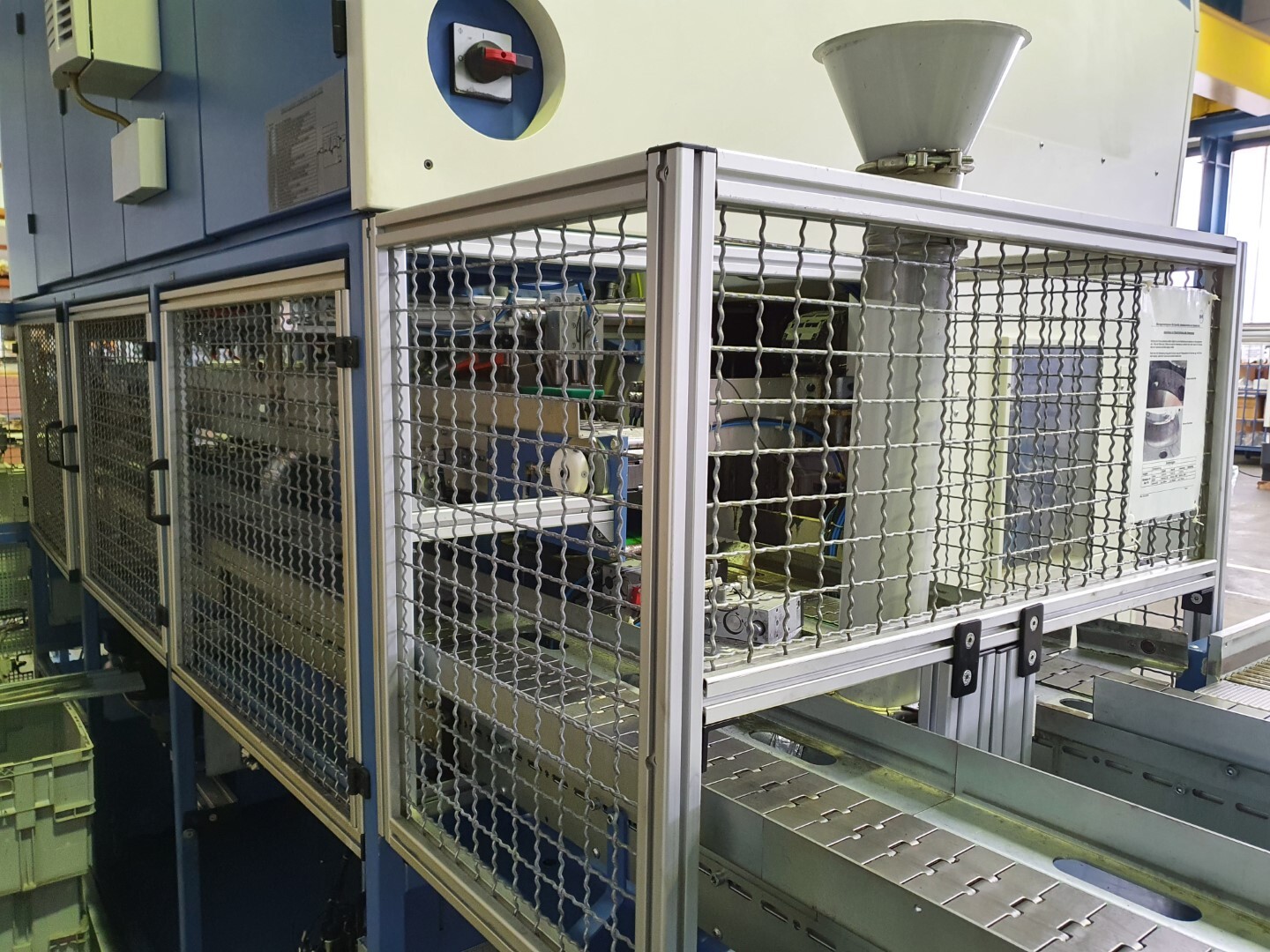

Automation:

- Options: Equipped with either a conventional automation solution or can be integrated with an industrial robot for enhanced flexibility.

Technical Data (Overview):

- Circulation Diameter: 200 mm (automated).
- Travel Distances: X-axis – 220 mm; Z-axis – 280 mm.
- Loading Time: Approximately 3.0 seconds, conducted in parallel with production time.
- Workpiece Change: Around 2.0 seconds for changing the workpiece into the working area.
- Main Spindles: 2 main spindles with A6 spindle flanges.
- Tool Configuration: Includes 2 disc turrets, each 8-fold, with VDI 30 or an optional VDI 40 configuration.
