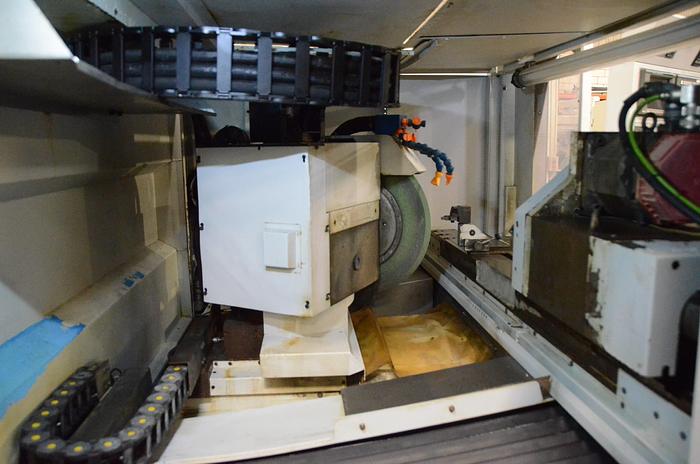

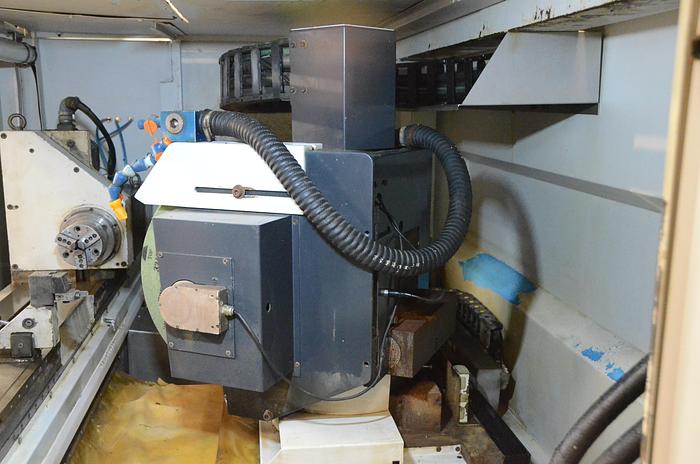

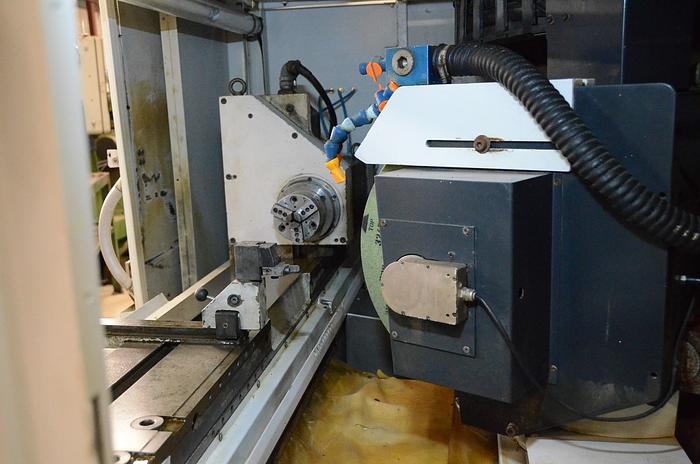

KELLENBERGER KEL-VISION RS 125/430 + ROBOT

Metallbearbeitungs- und Werkzeugmaschinen / Schleifmaschinen / Zylinderschleifmaschinen

Hersteller: KELLENBERGER

Modell: KEL-VISION RS 125/430 + ROBOT

Eintrags-Nr.: 167014241

Anzahl: 1

Datum: 01.05.2025

Baujahr: Gebrauchtmaschine

Standort: Land-es Spanien fuente de cantos

Preis:


Positionsnummer des Verkäufers: 4617

Distance between points: 760 mm, Max travel Z axis: 650 mm, Maximum length to be rectified: 430 mm, Max. diameter to be rectified: 250 mm, Height of points: 125 mm, Max. grinding wheel diameter: 500 mm, Max travel X axis: 320 mm, CNC brand: FANUC, CNC model: 18TB, Main engine power: 7.5 Kw, Z and X axis resolution: 0.1 µmm, Workpiece holder head cone: MORSE 5, Ø of the hole in the workpiece holder head: 38 mm, tailstock cone: MORSE 4, Rotation speed of the workhead: 8 to 800 rpm, Dimensions (length x width): 2500x2000 mm, Weight: 4700 Kg
Diese Maschine auf Facebook
Diese Maschine als verkauft

Anfrageformular

Sind Sie Händler?

Bitte senden:

Gesuchsanfrage?

Kopie an Sie?

Eingabedaten speichern?

Distance between points: 760 mm, Max travel Z axis: 650 mm, Maximum length to be rectified: 430 mm, Max. diameter to be rectified: 250 mm, Height of points: 125 mm, Max. grinding wheel diameter: 500 mm, Max travel X axis: 320 mm, CNC brand: FANUC, CNC model: 18TB, Main engine power: 7.5 Kw, Z and X axis resolution: 0.1 µmm, Workpiece holder head cone: MORSE 5, Ø of the hole in the workpiece holder head: 38 mm, tailstock cone: MORSE 4, Rotation speed of the workhead: 8 to 800 rpm, Dimensions (length x width): 2500x2000 mm, Weight: 4700 Kg
Verkäufer Angebot Nr. resale 4617
Diese Maschine auf Facebook
Diese Maschine als verkauft
Geprüfter
Händler

Verkäufer

MAQUINAS TALLERES LUIS ALONSO S L

MAQUINAS TALLERES LUIS ALONSO S L

Herr Luis Alonso
06240 Fuente de Cantos (Badajoz)
Spanien

RESALE Anbieter seit 2016
