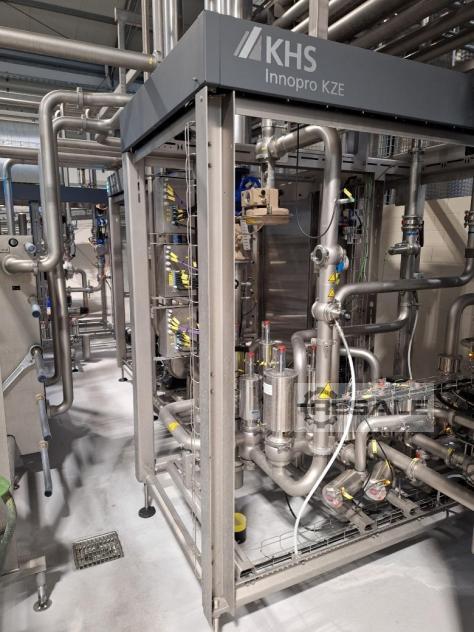

KZE unit PT100 A KHS type Innopro KZE 21/T14-98-12

KZE unit KHS type Innopro KZE 21/T14-98-12 PT100 A
Year of manufacturing: 2018
consisting of:

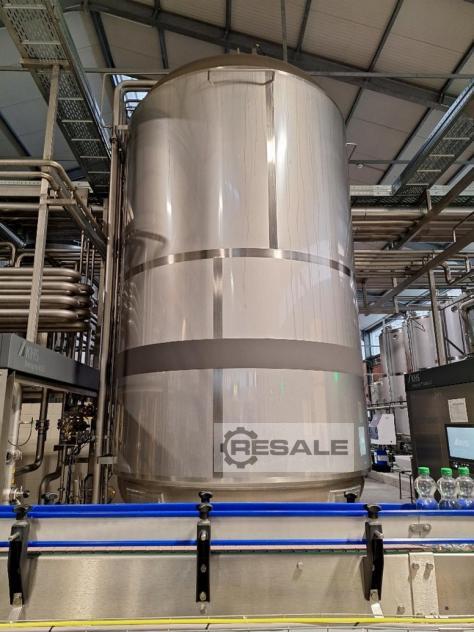

Buffer tank
Machine frame
Hot holder
Plate heat exchanger

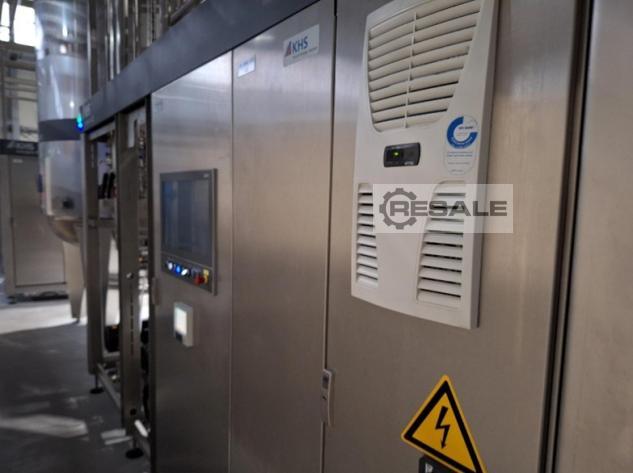

Control cabinet
Distributor for setting the heat retention time

Nominal capacity: 21 m³/h
Minimum adjustable capacity: 7.5 m³/h
Capacity during CIP: 25 m³/h
Heating water: 22 m³/h
Max. CO2 content in product: 7.7 g/l

Design specifications (at nominal capacity):

Product inlet temperature: 20 °C
Pasteurization temperature: 98 °C
Holding time: 30 s
Cooling circuit medium inlet temperature: 28.7 °C
Heating water inlet temperature: 118 °C
Product outlet temperature: 12 °C


The system can be cleaned via an external CIP unit.
Important: A CIP system is not included in the scope of delivery.
