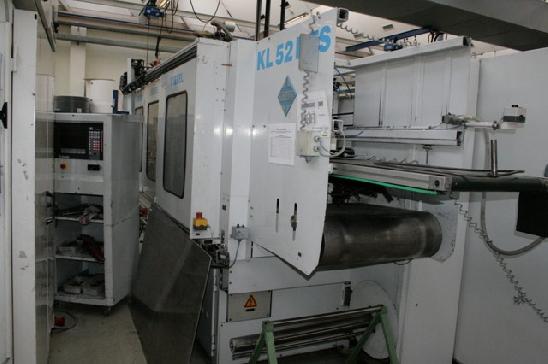

Tiefziehmaschine KIEFEL KL 52 SH BFS

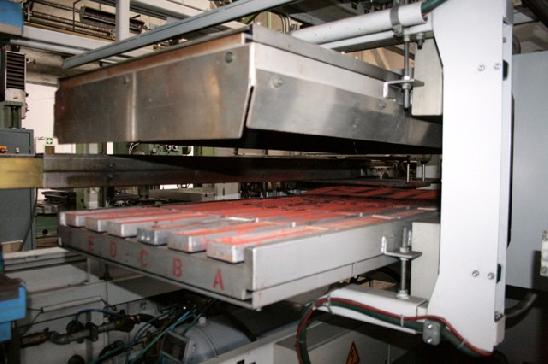

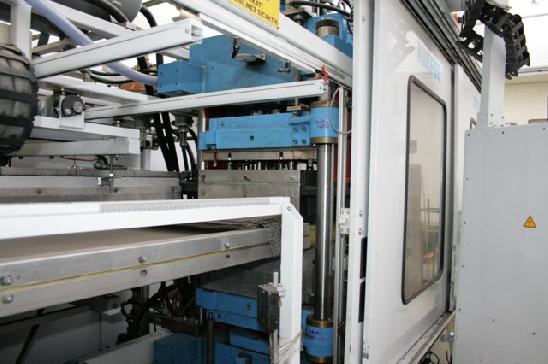

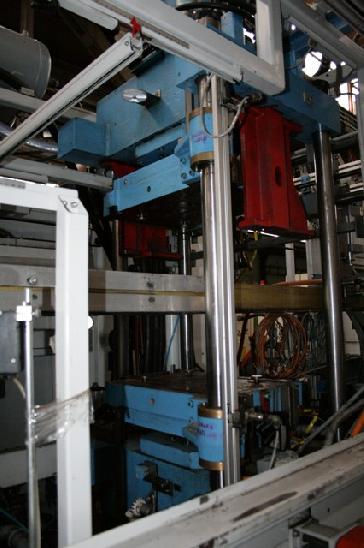

Technische Details Material.: OPS, APET,PP,HIPS,ABS Forming area (VxH): 520 x 400 mm Depth of draw: 120 mm Material thickness (max): 1,50 mm Technische Details heating, molding and cutting. This machine also has the BFS system which allows to cut in place in the forming station Forming area: 520 x 400 mm Max. sheet width: 590 mm No of cycles are very much depending on the product. However we have been producing more different products with up 50 cycles per minute, but they were no deeper than 40 mm. All movements are 140 mm with a recommended max. depth/hight of 120 mm We have been producing OPS, APET, PP, HIPS and ABS on the machine. The last few years mainly HIPS and APET The thicknest material we have been producing, were 2,0 mm HIPS, but I will not recommend more than 1,5 mm HIPS.
Verkäufer Angebot Nr. resale 948151
