Sandwich panel production line
Type: KAM-LINE-SP-001
Manufacturer: Klei adhesive machinery
Year: 2018
Total built-up area of the line: 7 x 23 m
Sandwich panel dimensions
Width: 150 - 1500 mm
Length: 250 - 2900 mm
Thickness: 30 - 70 mm
Press pressure approx.: 500 kg/m2
Heating temperature: 60 °C
Electrical input up to 45 kW
Power max.: 50 kW
Optimal air pressure max.: 6-8 bar
Electricity source 3 phases 400V, 50Hz
Dimensions: 20000x6000x5000 mm
Total weight: 10,000 kg

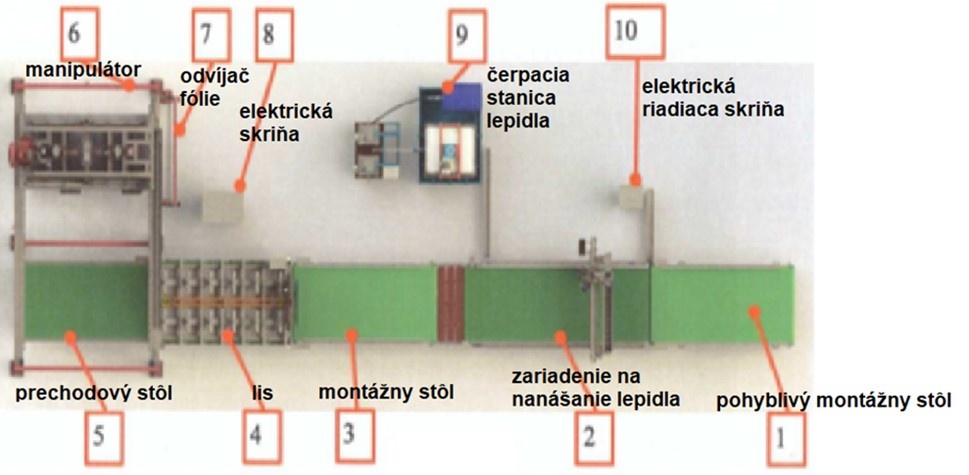

The line enables the production of assembly panels in a semi-automated
manner:
simultaneous processing of multiple orders based on customer
requests,
already at the design stage, including preparation of the panel
layout on the shipping pallet,
the modular design of the line allows transfer between two or even
three assembly tables,

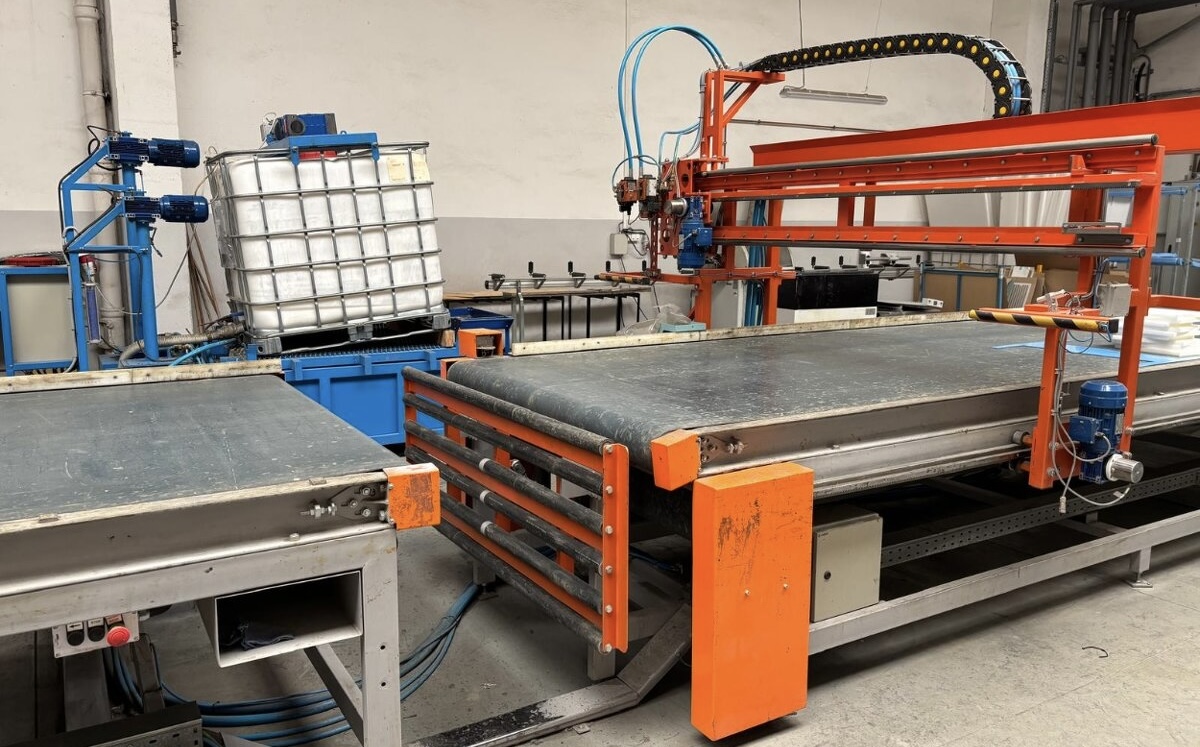

adhesive mixing and application are performed by an automatic dosing
system, ensuring precise quantities on the required surfaces,
assembled sandwich panels forming one layer on the shipping pallet
are automatically transported by a conveyor to a heated press, where
they are completed within approximately 15 minutes and prepared for
dispatch,

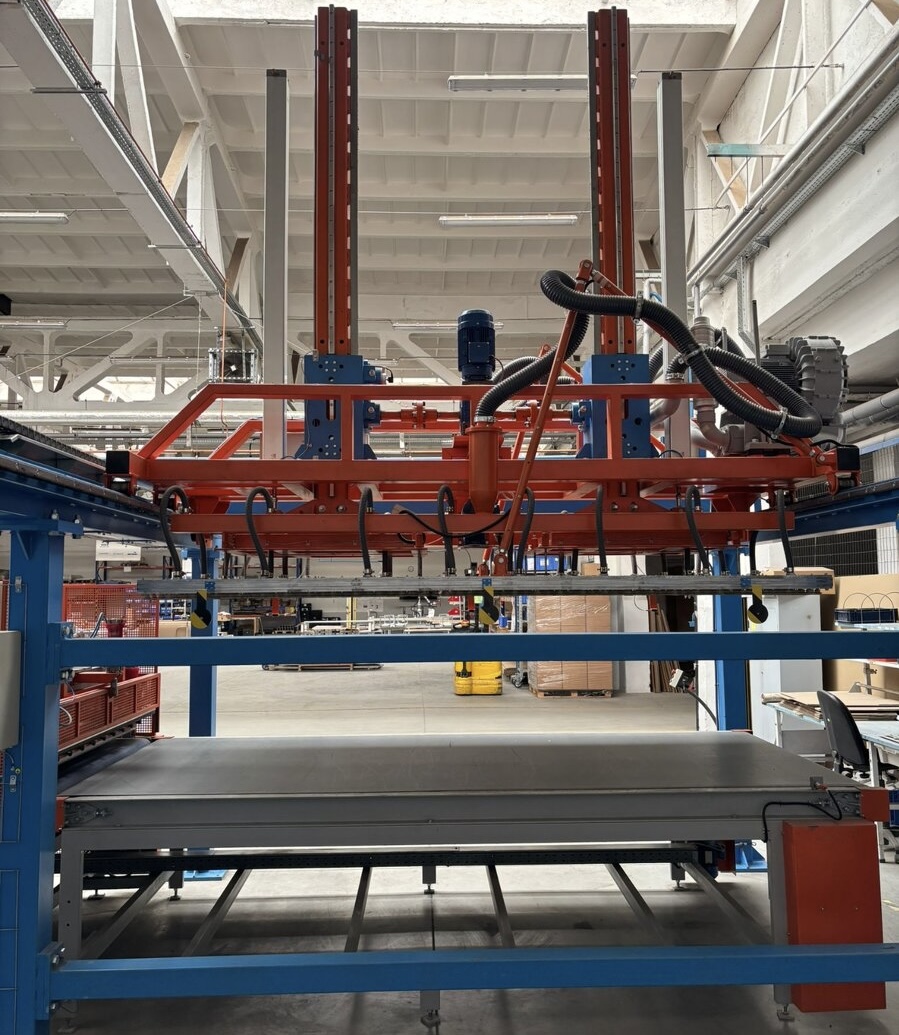

these are then automatically transferred by a manipulator onto the
pallet in the required layer arrangement and sequence according to
customer specifications,

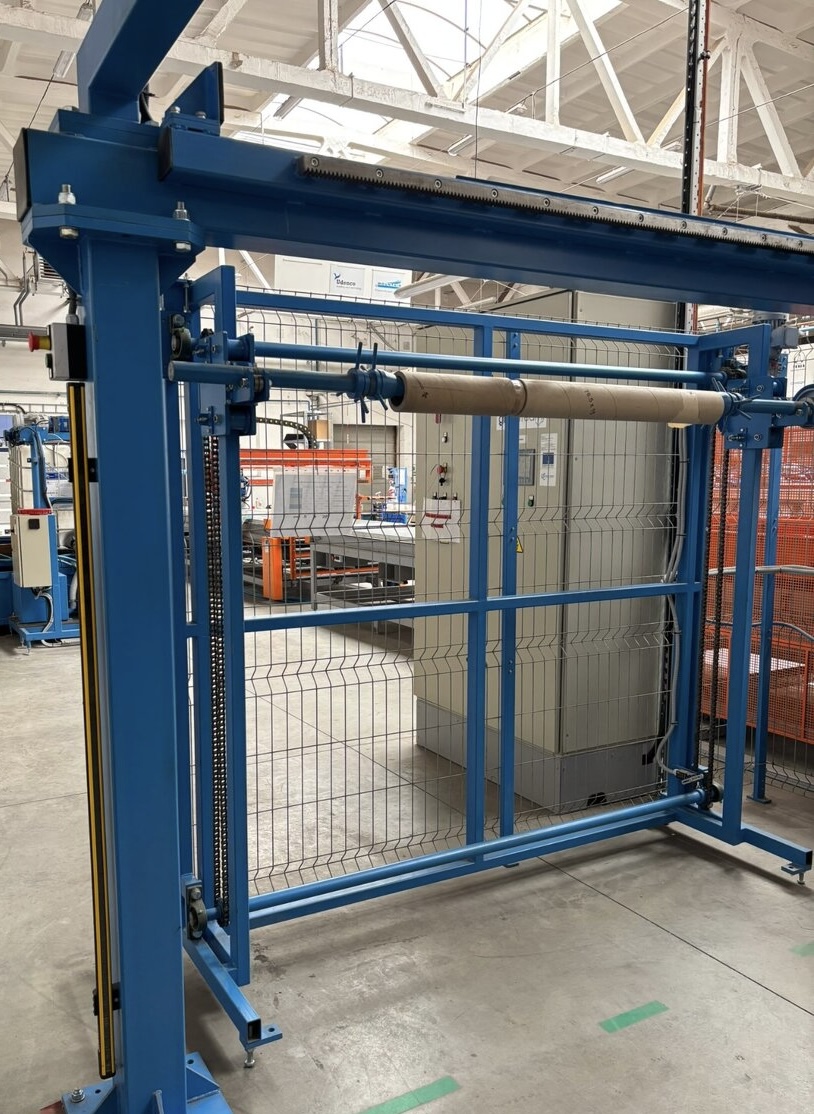

final stage – wrapping with stretch film followed by shipment.
Summary:
increased productivity,
reduced dependence of production quality on the human factor through
semi-automation,
improved production flow,
implementation of line-based (continuous) supply to the process.
The line is in very good condition, fully functional, under power
