Vertikale CNC Bearbeitungszentren KONDIA A 6

Manufacturer KONDIA
Model A-6
Year 2015

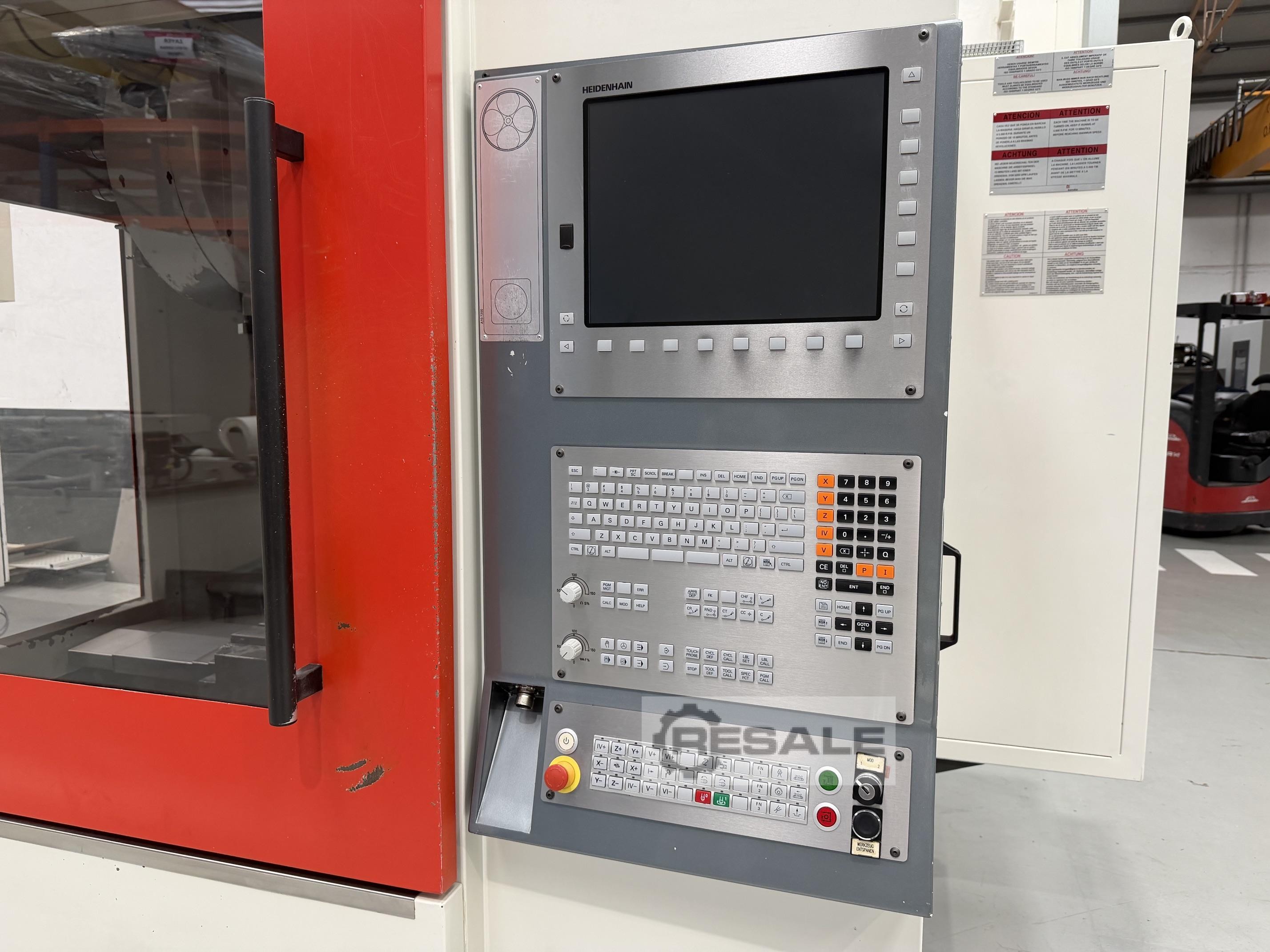

CNC HEIDENHAIN TNC 530 HSCI
Table
Table surface 800 x 400 mm.
Number of T-Slots 3
T-slots (width, distance) 18.125 mm.
Table-floor distance 885 mm.
Table distance – spindle nose (min/max) 140 / 650 mm.
Maximum weight allowed on table 450 kg.
Routes and advances
Longitudinal travel (X) 600 mm.
Cross travel (Y) 410 mm.
Vertical travel (Z) 500 mm.
Fast forward X/Y/Z axes 30,000 mm./min.
Head
Spindle taper ISO 40 DIN 69871
Maximum spindle speed 12,000 rpm
Spindle power 10 / 17 kW
Autoloader Tools
Chain Type
Random Change
Warehouse Positions 20
Maximum tool width with adjacent free positionsq 135 mm.
Maximum tool width without adjacent free positionsq 85 mm.
Maximum tool length 250 mm.
Maximum tool weight 6 kg
Equipment
Internal cooling 20 BAR INCLUDED
Chip evacuator INCLUDED
Water gun cleaning parts INCLUDED
HEIDENHAIN HR-410 Portable Steering Wheel
Optical Pickup Rules INCLUDED
Others
Total installed power 25 kW
Approximate Machine Weight 4,150 kg
Verkäufer Angebot Nr. resale 170214311
