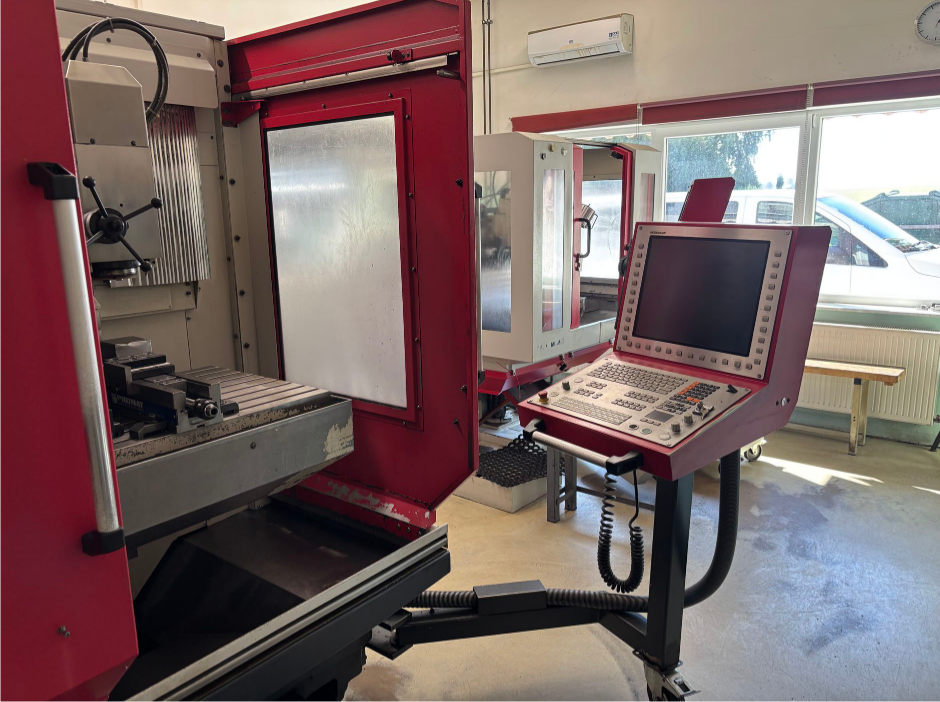

Manufacturer: Kunzmann
Model: WF650
Machine Type: Universal Milling Machine
Year of Manufacture: 2013

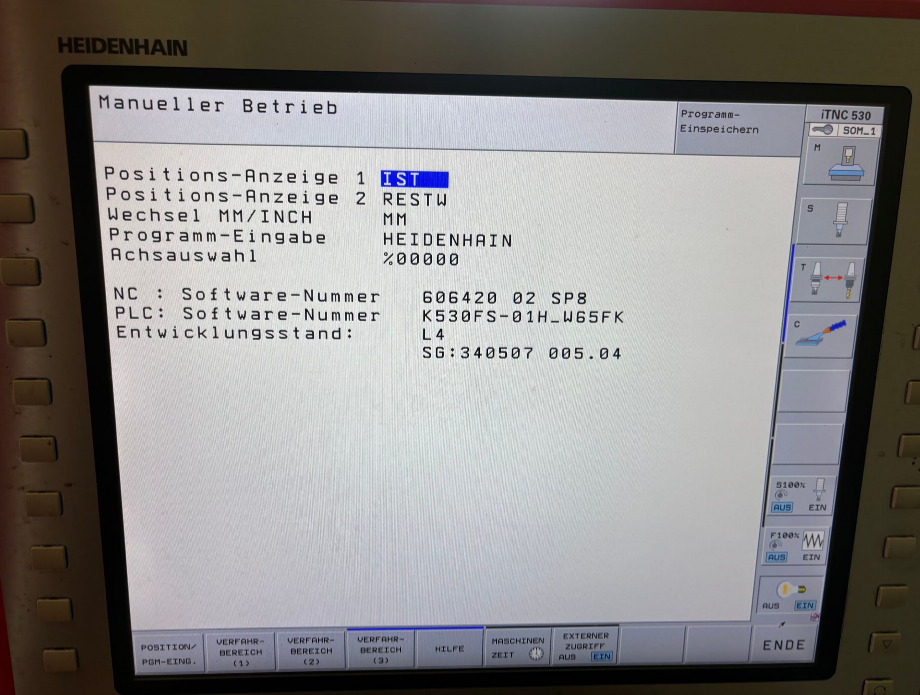

CNC Control: Heidenhain iTNC 530
X / Y / Z Travel: 650 x 500 x 450 mm
Table Size: 1100 x 600 mm
Spindle Speed: 1 to 6,500 RPM (steplessly variable)
Spindle Power: 9.0 kW at 100% ED / 13.0 kW at 40% ED
Tool Changer: 20-position automatic
Tool Measurement: Heidenhain TT 449 automatic tool measurement
3D Touch Probe: Heidenhain infrared 3D probe for workpiece
measurement
Feed Rate: X/Y 25 m/min, Z 20 m/min
Power Supply: 400 V / 50 Hz
Machine Weight: approx. 5,700 kg
Condition: Excellent - top maintained
