x-Weg:1520 mm
y-Weg:760 mm
z-Weg:610 mm
machine-Details
Stock-No. 1105-03957

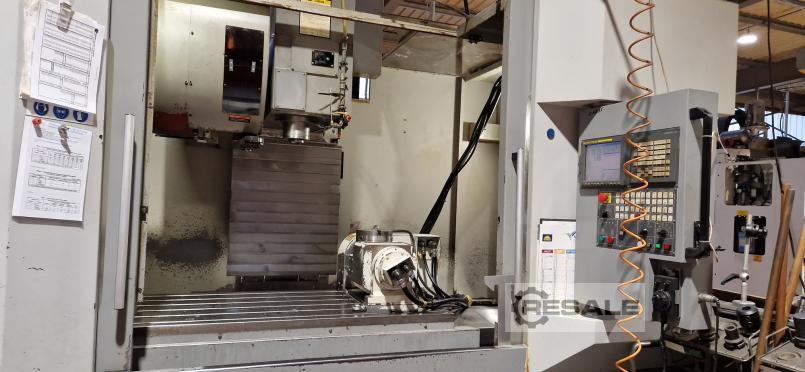

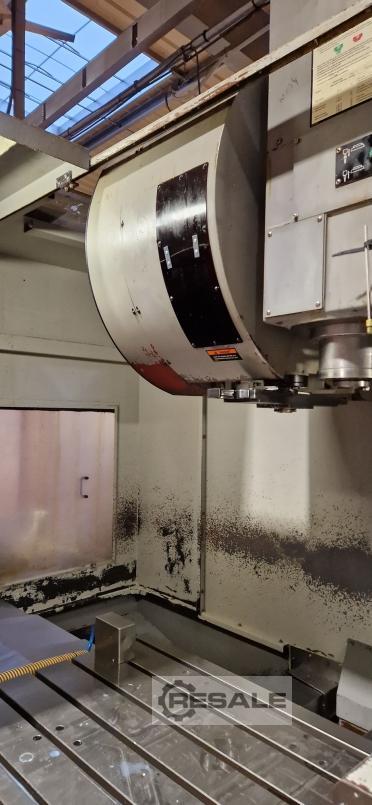

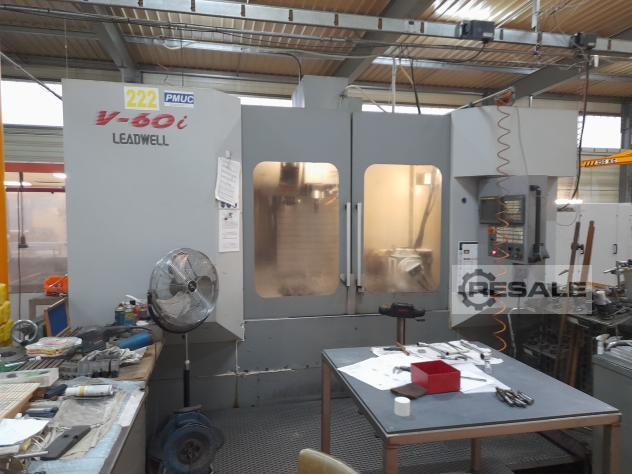

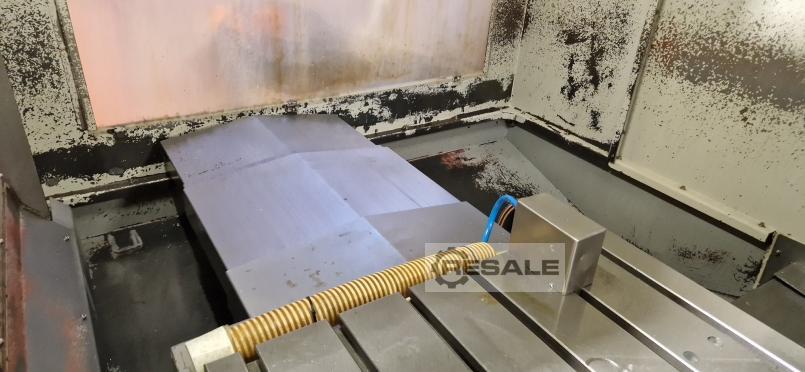

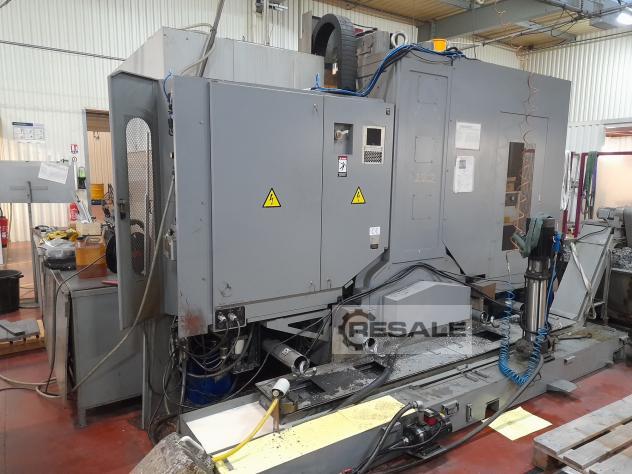

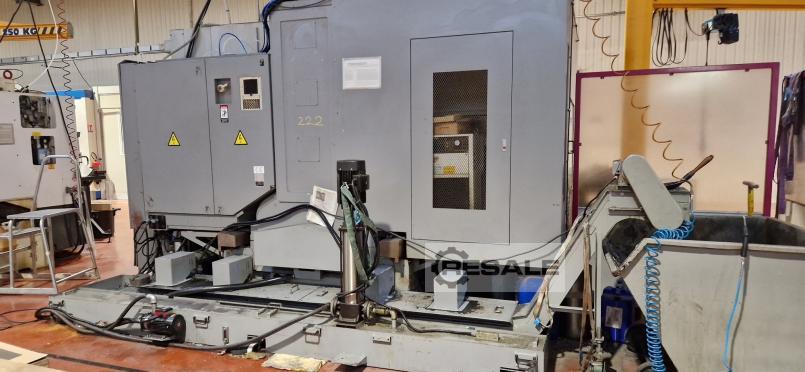

Type of machine Machining Center - Vertical
Make LEADWELL
Type V 60
Year of manufacture 2006
Type of control CNC
Storage location FRANKREICH HAGUENAU
Country of origin Taiwan
Delivery time CALL ME
Freight basis EX WORK
Technical details
x-travel 1520 mm
y-travel 760 mm
z-travel 610 mm
dist. milling spindle - table surface 150 - 760 mm
Table dimensions 1680 X 750 mm
table load capacity 1200 kg
spindle motor 15 kW
spindle speed: 10000 rpm
spindle taper BT 40
rapid traverse 20 m/min
tool change unit 24 places
weight of tools max. 14 kg

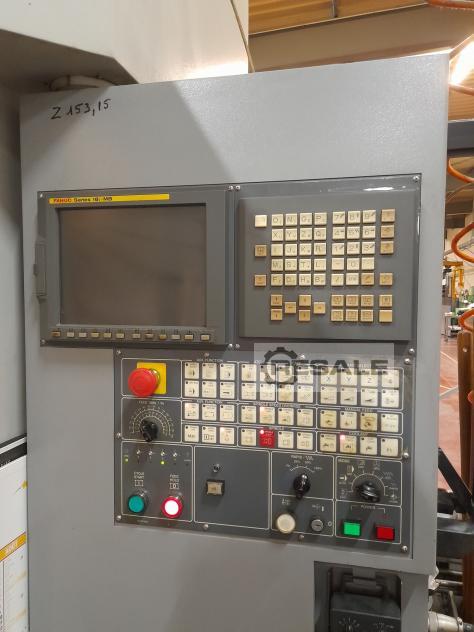

CNC Controller: Fanuc 18 imb
total power requirement 30 KVA
weight of the machine ca. 9 t
Additional information
- In Excellent condition
- With machien documents
- Rigid taping

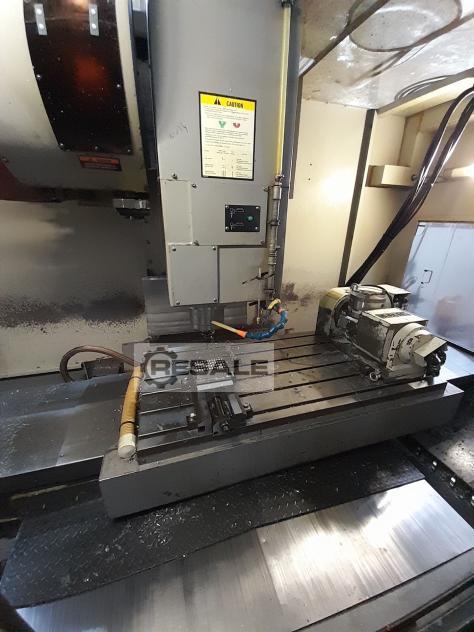

-WITH GOLDEN SUN 5 AXIS
Verkäufer Angebot Nr. resale 162906132
Frankreich
