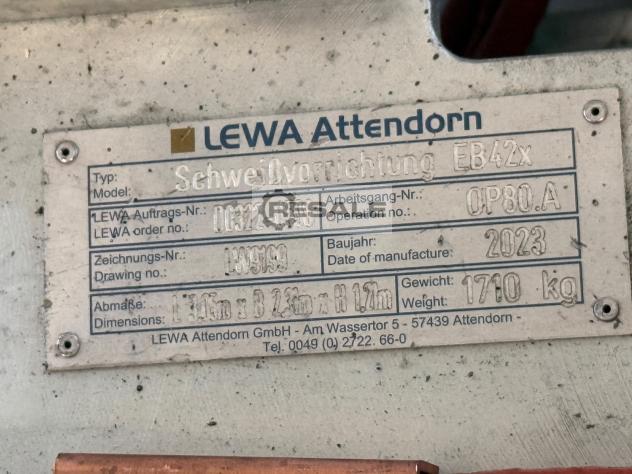

Schweisstische LEWA Schweissvorrichtung EB42x

GENERAL CHARACTERISTICS:

Stand-alone technological tooling dedicated to a specific operation in an automated production line. It is characterized by a massive, open central frame and unified, heavy clamping units. The device works directly with industrial robots in the thermal hazard zone, having advanced installation protection and a dedicated mass current dissipation system.



LIST OF COMPONENTS:

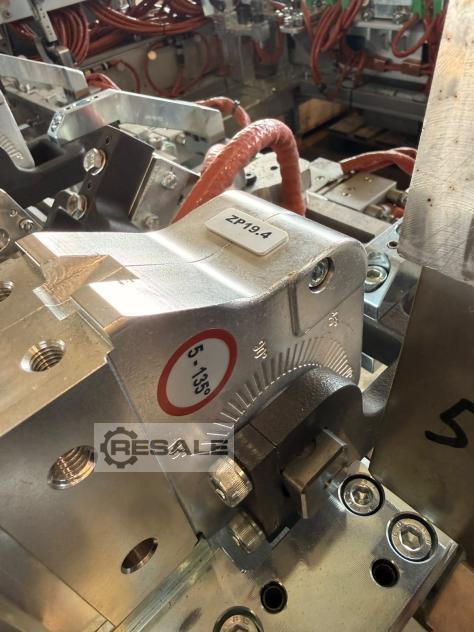

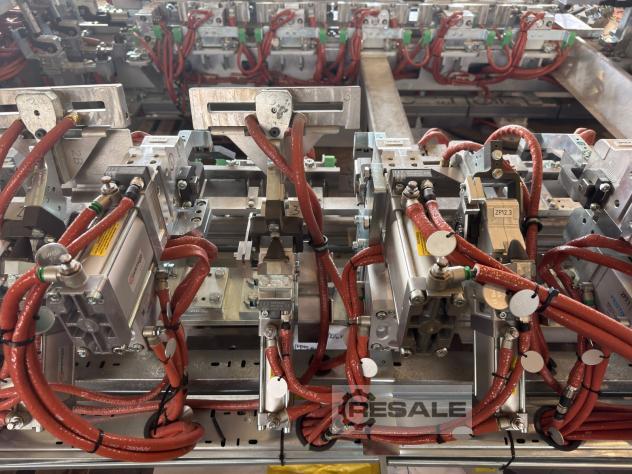

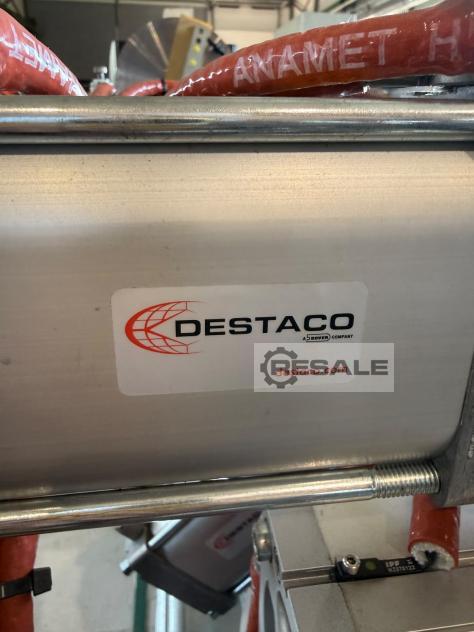

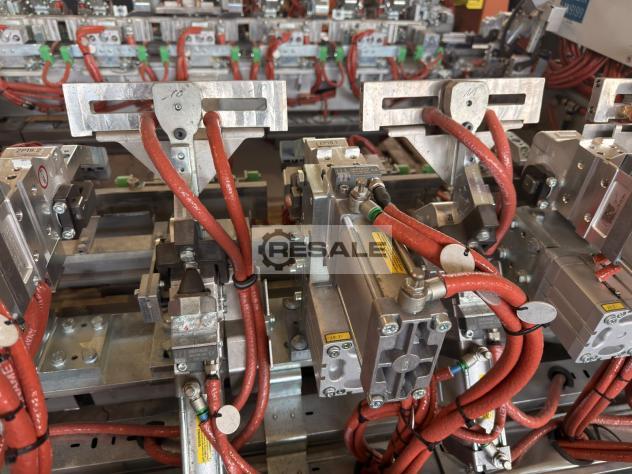

1. DESTACO main welding clamps with opening angle control – 20 pieces. Equipped with a mechanical angle scale (range 5-135°) facilitating collision-free loading.

2. Eye bolts (transport eyelets) – 4 pieces.

3. Copper ground blocks (welding ground) – approx. 2 terminal points. Thick copper connections to protect electronics and positioner bearings from welding current.

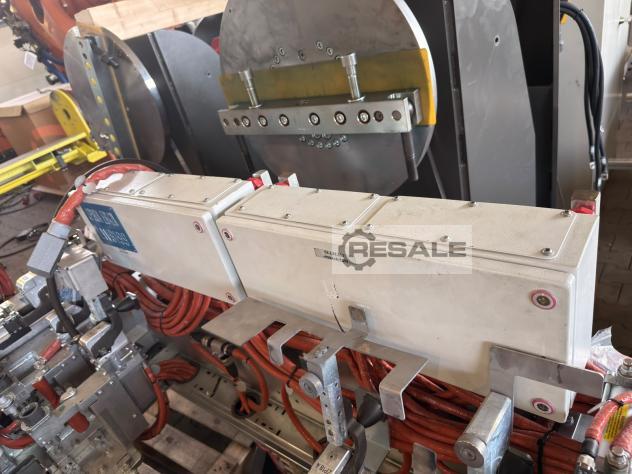

4. Electro-pneumatic box (I/O junction box) – 1 piece. A collection enclosure for signals from inductive sensors facilitating communication with the PLC.

5. Base cubes (NC blocks) with a table of coordinates X, Y, Z – approx. 25 pieces. Base posts (so-called shims) guaranteeing the perfect spatial arrangement of the detail.

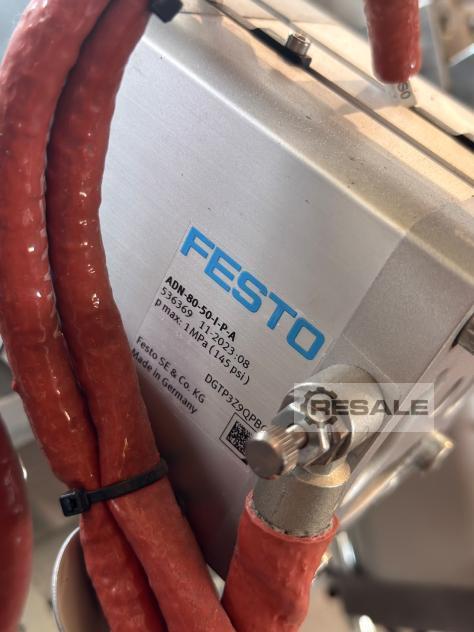

6. Pneumatic installation in red protective sleeves – a complete power bus hidden in fireproof covers, routed safely inside the profiles and through the edge grommets.

7. Base frame with technological stand – 1 set. It consists of a galvanized working frame and a black service stand for off-line maintenance work.
