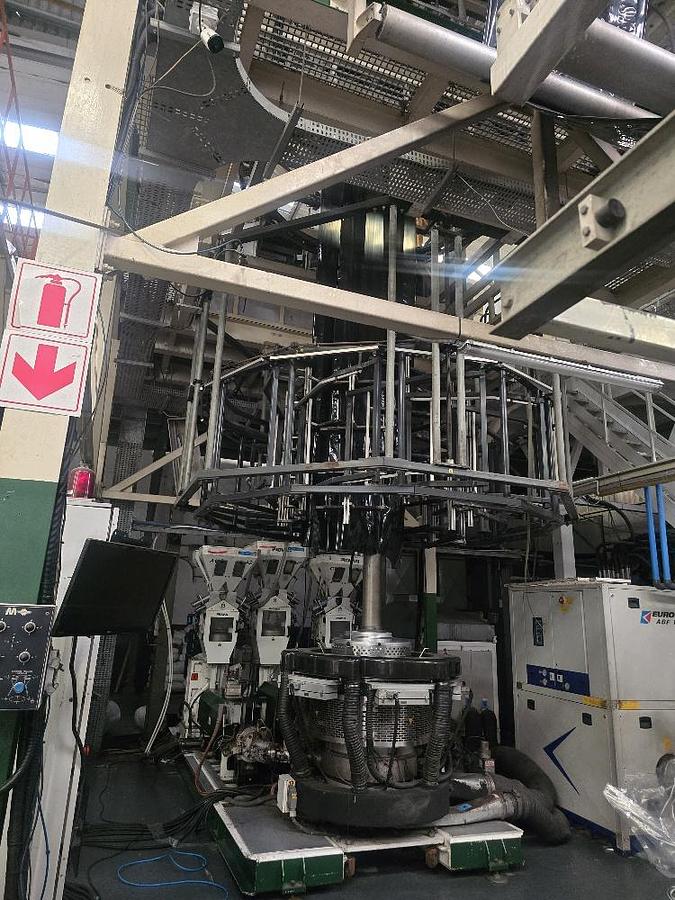

MACCHI 3-LAYERS BLOWN FILM EXTRUSION LINE, for LLDPE/LDPE/HDPE, n.3
extruders with infra-red heaters (for energy saving), Screws Ø

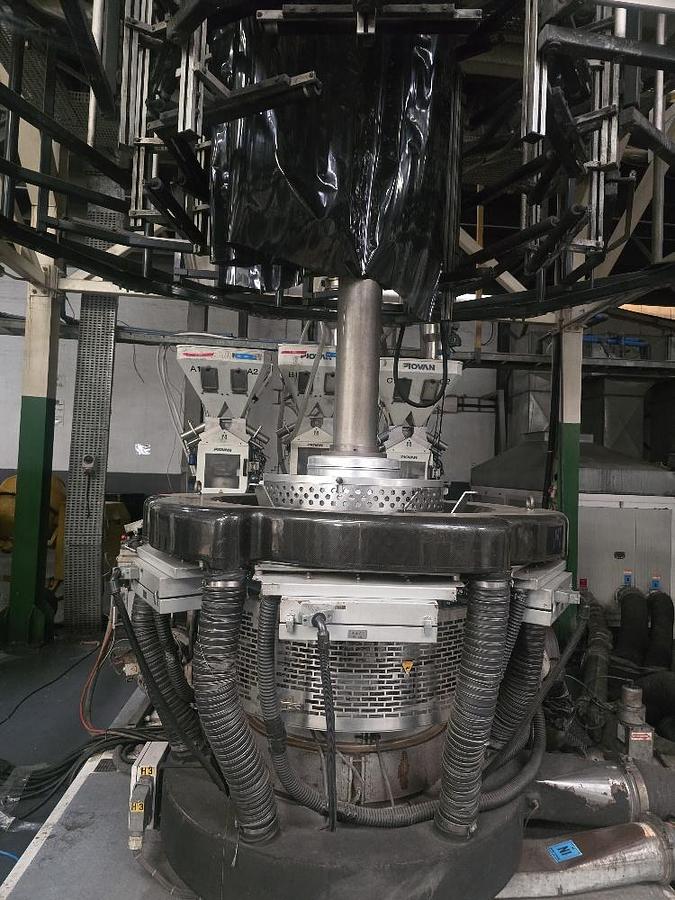

65+80+65 mm, n.3 sliding plate screenchagers, Macchi Die head
TE5303-IBC-350/500, Available dies Ø 350 and 400 mm gap 1,8 mm., IBC
bubble cooling system, dual-flow, carbon fiber air ring, throughput
rate up to 800 kg/h depending on material and recipe, 2.400 mm wide

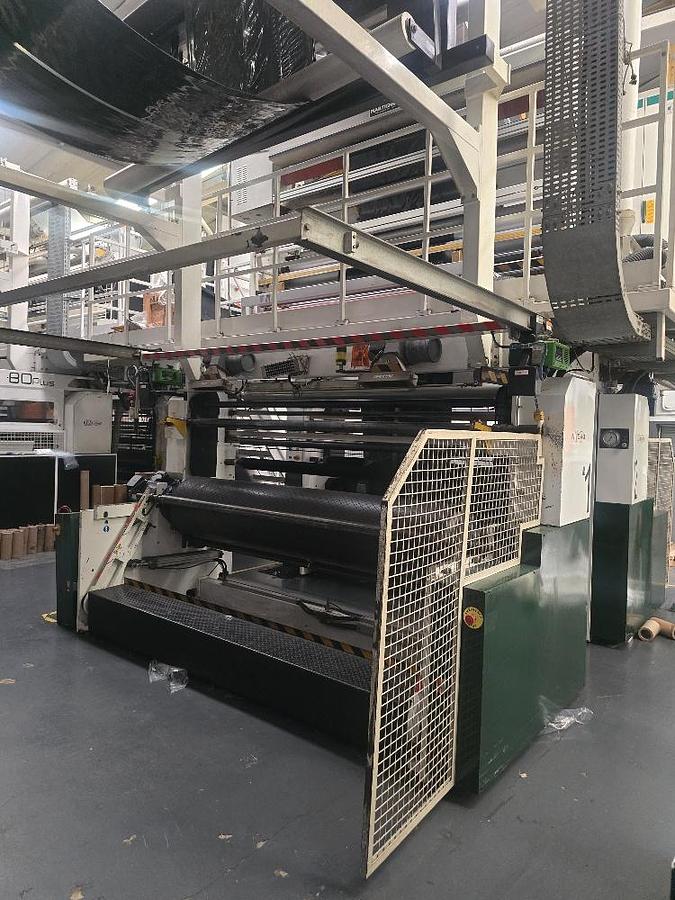

oscillating pull off unit, Motorized side gusseting units, Double,
2.350 mm wide fully automatic back-to-back winding station with fully
automatic reel change, Max reel Ø 800 mm, including the following:,
Tower, E&L Web guide, Gravimetric weight control system Piovan/Doteco,
Components blander Shini, Doteco dosing units, Automatic Thickness
control Kundig/K-Design Profile gauge control system, Calibrating
basket, Martignoni Corona-treatment, N. 8 Air shafts, Constructed in
2011 started 2012, Excellent working conditions., On time maintenance
always performed by Constructor, Can be seen in production.,
availability: immediate, working width: 2.350 mm, capacity: 800 kg/h
depending on materials, conditions: excellent - connected, type: 3
layers, 2.350 dw tickness control
Italien
ponderano
