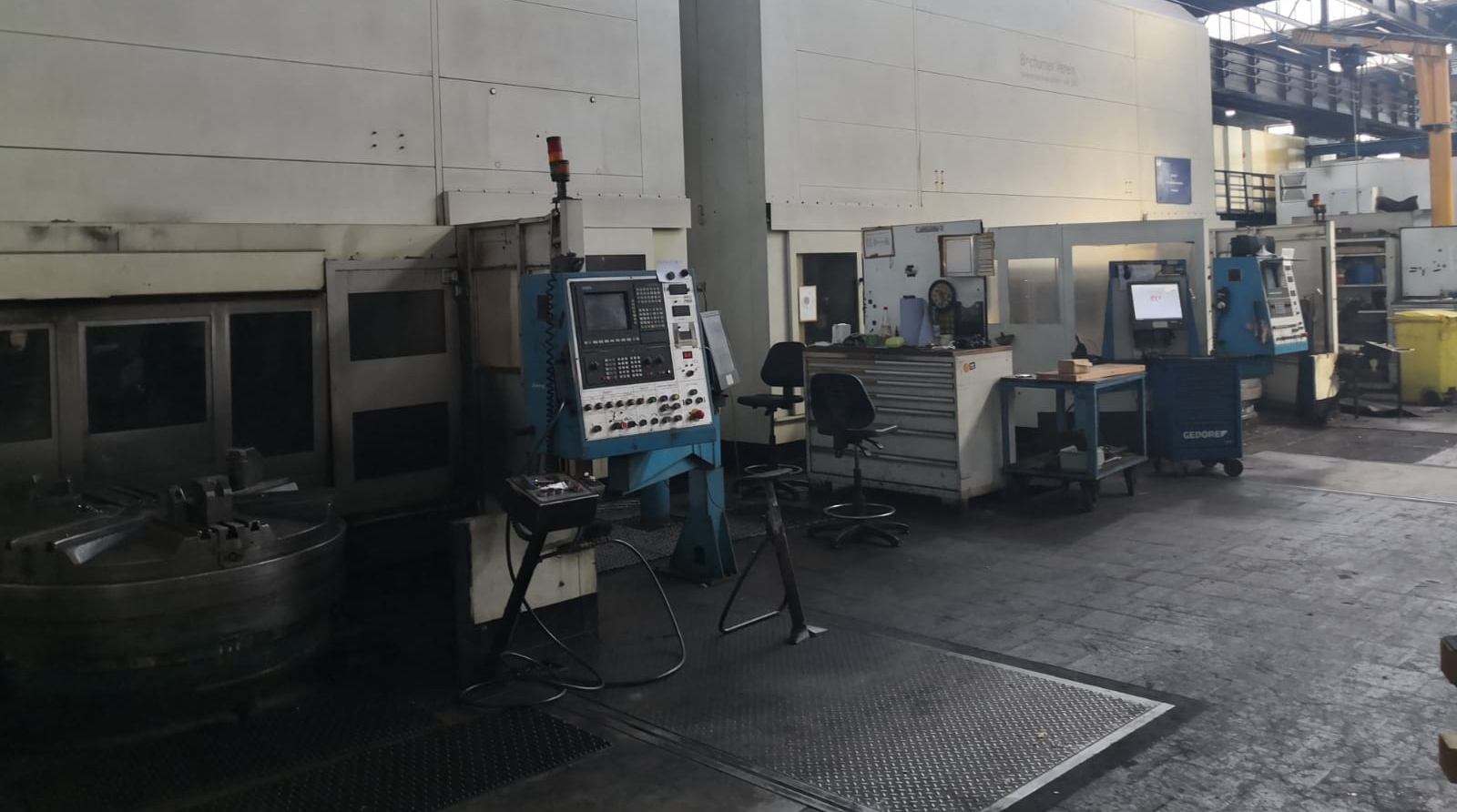

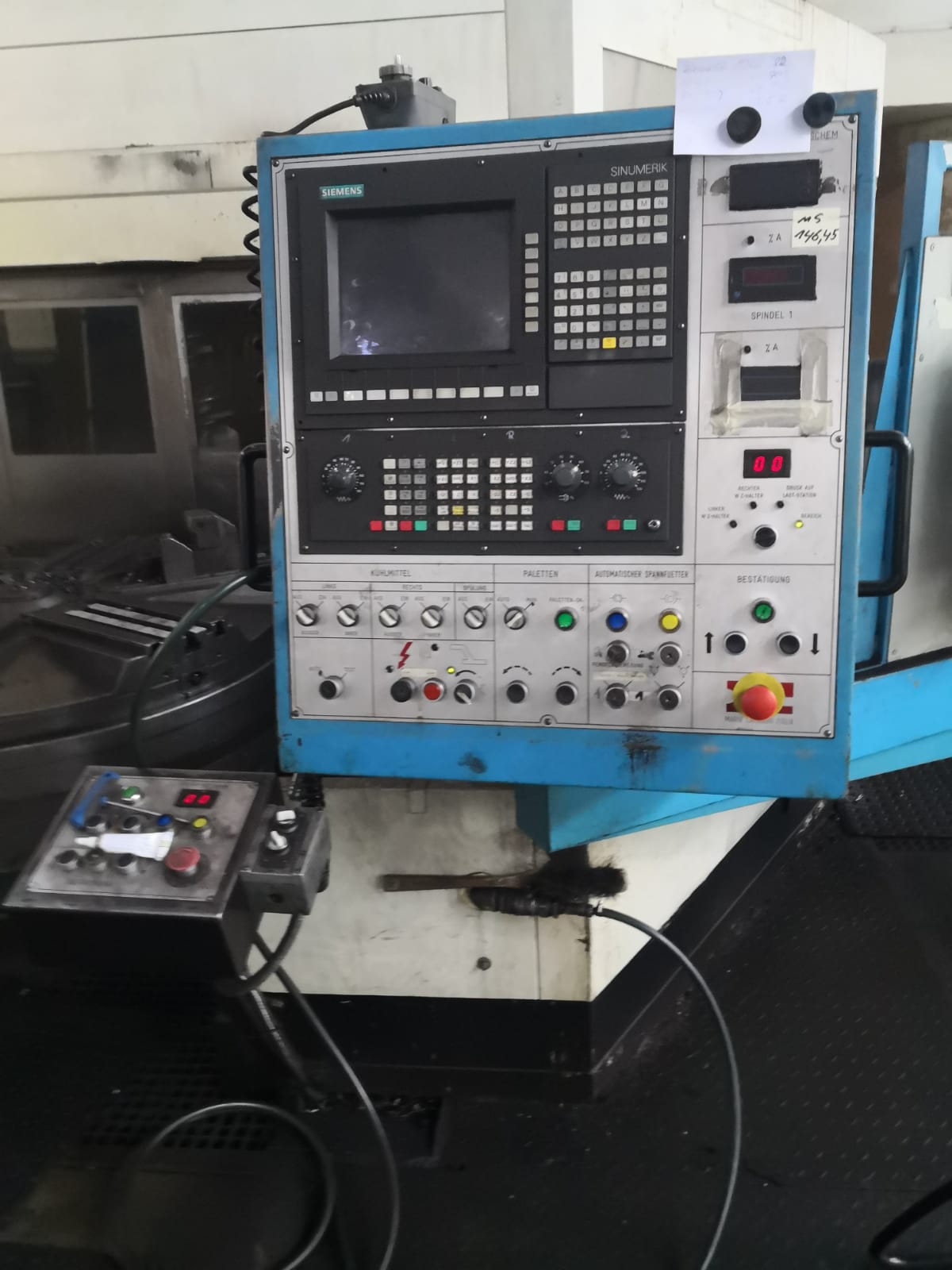

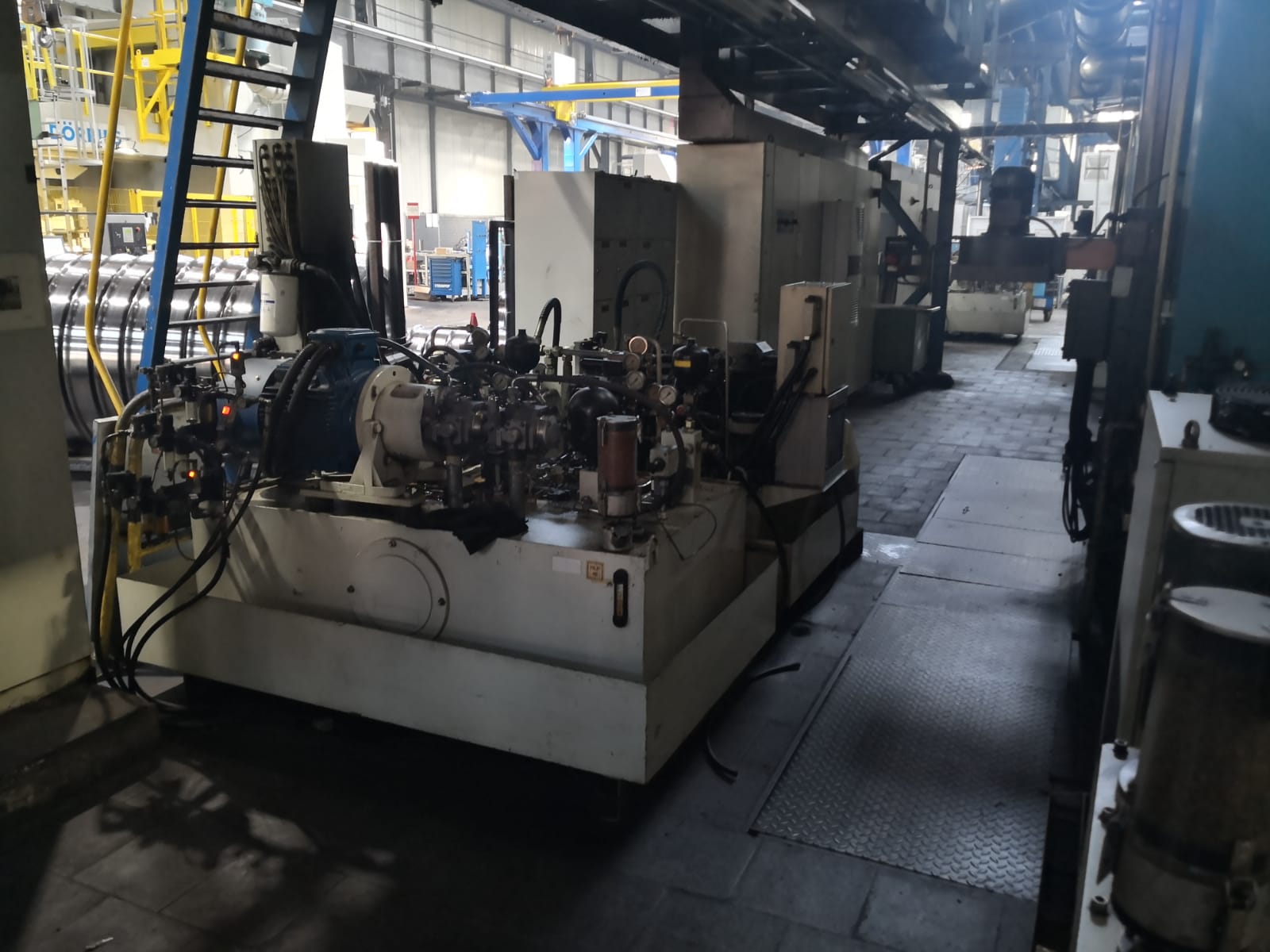

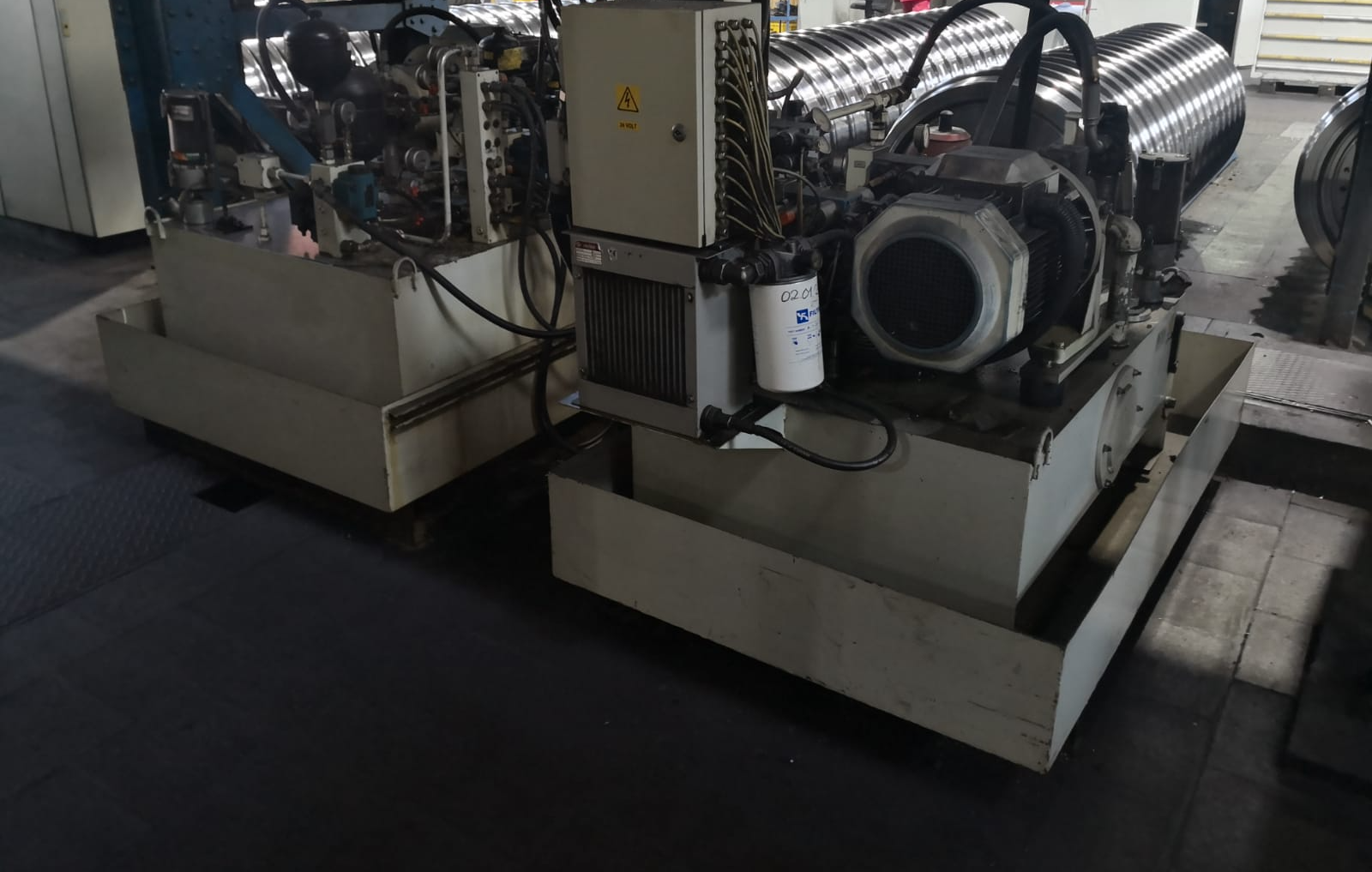

Manufacturer:Mario Carnaghi
Model: TGF 10/1850
Year of Manufacture: 2000
Type of Machine : Vertical Lathe
Technical Specifications:
- Table Diameter: 1450 mm
- Max. Swing Diameter with Vertical Slide: 1800 mm
- Max. Turning Height on Table: 750 mm
- Main Spindle Drive Power (AC Motor): 164 kW (variable 720 U/min)
- Table Speed Range: 3.5 - 325 RPM
- Max. Table Torque: 42,270 Nm
- Vertical Travel - Right Slide (Z2” Axis): 800 mm
- Slide Section Size: 250 x 250 mm
- Rapid Traverse - Z2 Axis: 15,000 mm/min
- Horizontal Travel - Right Slide (X2” Axis): 2907.5+120=3027.5
mm
- Vertical Travel - Left Slide (Z1” Axis): 800 mm
- Horizontal Travel - Left Slide (X1” Axis): 2990+120=3110 mm
- Traverse Above Center (X1”, X2”): 120 mm
- Axis Feed Rate (X1/X2): 15,000 mm/min
- Axial Thrust: 5800 daN
- Tool Clamping Force: 5000 daN
- Milling Spindle Drive Power: 30 kW
- Spindle Speed Range: up to 2,500 RPM
- Min. Spindle Speed with High Output: 153 RPM
- Max. Spindle Torque: 1,630 Nm
- Feed Rates - Milling: 5 to 1,300 mm/min
- Tool Stations (Left): 12
- Tool Stations (Right): 16
- C-axis Drive Power (AC): 7.6 kW
- Rotational Speed C-axis: 3.5 RPM
- Working Speed: 0.07 – 3.5 U/min
- Positioning Accuracy: ±8″
- Repeat Accuracy: 5″
- Tool Interface: DIN 69871 Form AD, ISO 50
Total Weight of Machine: Approx. 80,000 kg
