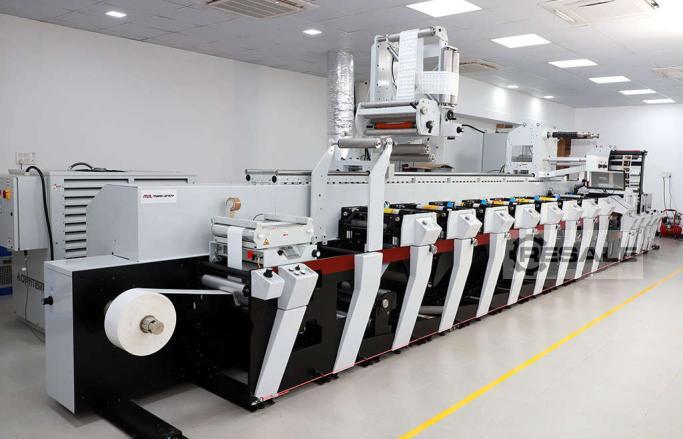

MARK ANDY P5 - 430mm - 8 Color FLEXO

MARK ANDY P5 – 430mm (8-colour)
 Age: 2017
 8 Colour (Flexo)
 Unwind
 Rewind
 ProLed System and Dryer
 Die Cutting
 BST Powerscope 5000 Inspectionsystem
 Sheetingstation (Cross)
 Delam/Relam
 Cross cutting device
 1 delivery belt
 Mark Andy VPM 400 Panel Mount Machine
 Meech web cleaning - double sided
 2 PitStop trolleys to hold printing cylinder ink trays
 Impression and magnetic cylinders
 48 impression cylinders
 7 magnetic cylinders
 2 ink trays with non-stick coating
 Servo-controlled feed unit with closed control loop
 1 single-sided unwind for roll diameters up to 40 inches (1016mm),
 Vertical dancer system, web edge control, closed control loop
 1 ultrasonic web edge control with 2 sensors
 1 ultrasonic web break control
 Printing unit:
 Print and process maximum width 17 inches 431.8 mm
 Maximum web width 17.25 inches 438.2 mm
 Min. print processing width 8.5 in 216 mm
 Min. print processing width with SK material 6.5 in 165 mm
 Minimum print length 5.5 in. 139.7 mm
 Maximum print length 24 inches 609.6 mm
 Minimum die-cut length 10 in. 254 mm
 Maximum die cut length 24 inches 609.6 mm
 Tolerances print / print / die cut + - 0,1mm
 Material Paper and adhesive laminate, PE, PET with liner, 25 to 356 micron
 Maximum mechanical speed 230m/min. The production speed to be production speed depends on the printing and die-cutting form and the output of the UV system
 Connection 415 Volt, 50 Hz system
 Operating instructions in German
 Toothing flexo printing unit 1/8 inch helical toothing
 Punching station 1/8 inch straight toothing
 Cross cutting station 1/8 inch straight toothing
 This machine is equipped with a remote diagnostic system. To operate this system an connection must be provided
