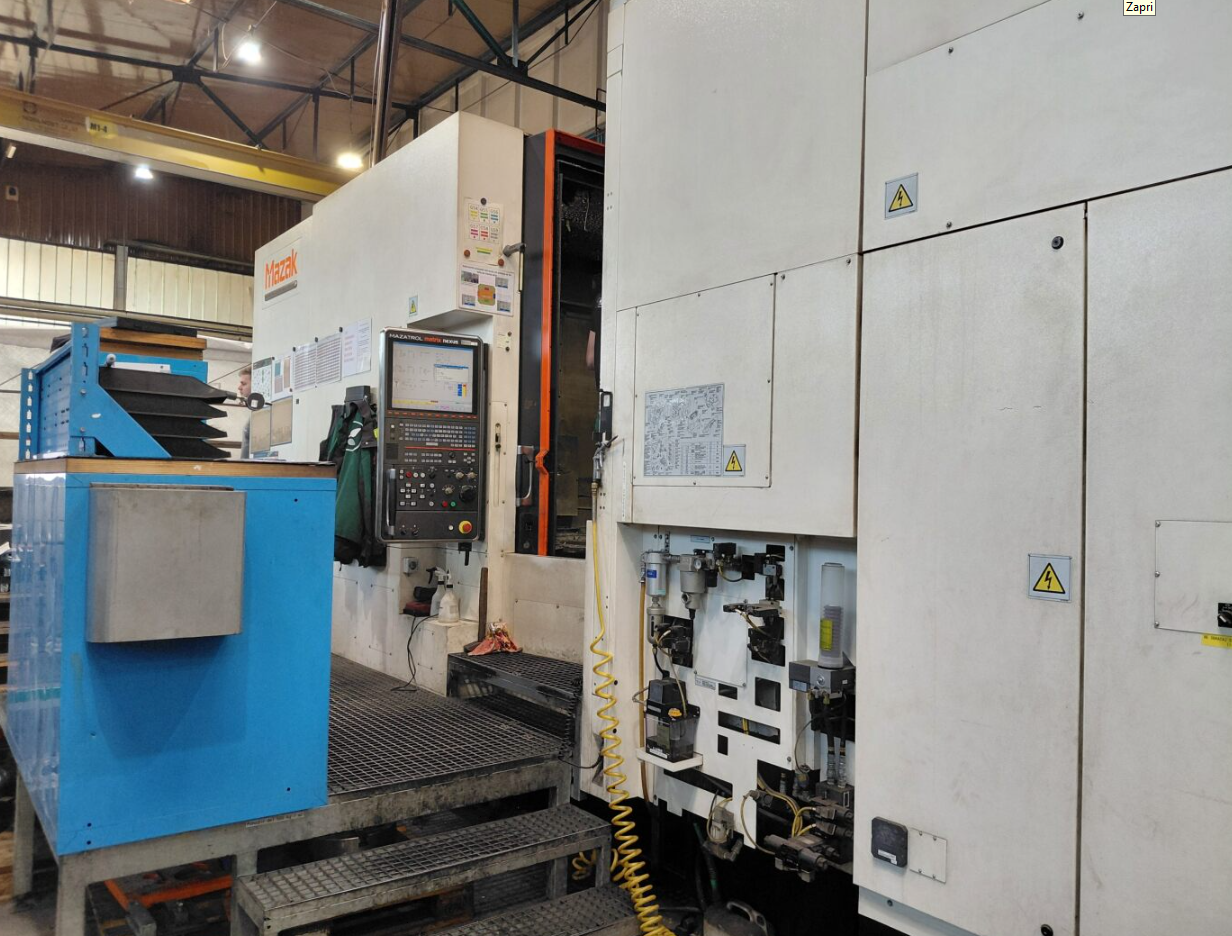

MAZAK HCN 8800 II

Manufacturer: Mazak

Model: HCN 8800 II

Year of Manufacture: 2012

Technical Specifications

- X-Travel: 1400 mm
- Y-Travel: 1200 mm
- Z-Travel: 1325 mm
- Table Surface Area: 800 x 800 mm
- Number of Pallets: 2
- Spindle Torque: 1218 Nm
- Spindle Speed: 8000 min-1
- Tool Changer Positions: 80
- Tool Interface: SK 50 DIN 69871
- Weight: approx. 30,800 kg
- Dimensions (L x W x H): approx. 8000 x 3000 x 3500 mm

Equipment and Options

- 80-position tool magazine with SK 50 DIN 69871 interface
- 2-pallet changer
- NC round table with 360,000 positions
- Spindle with high torque 1218 Nm at 8000 rpm
- Airblow device at the workpiece
- Interface for high pressure cooling system 70 bar (Knoll)

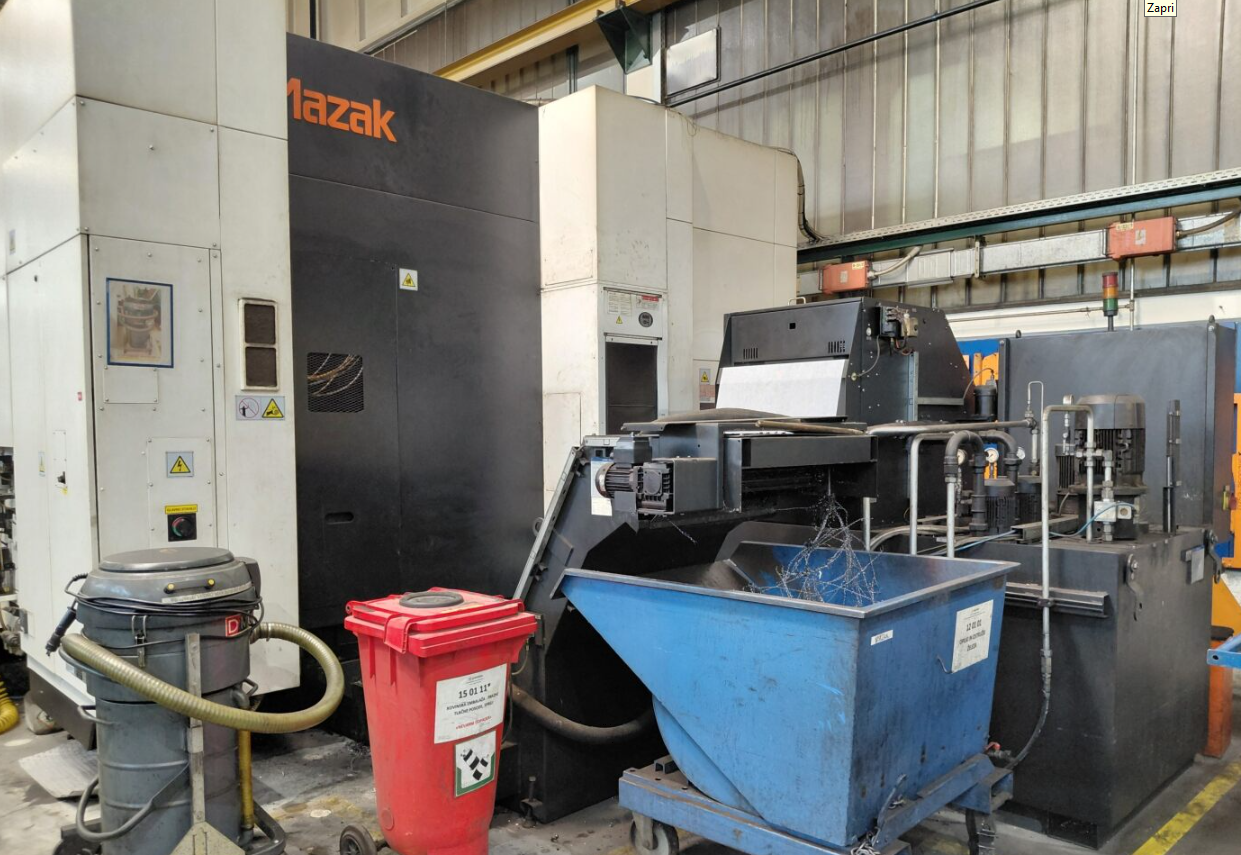

- Chip conveyor

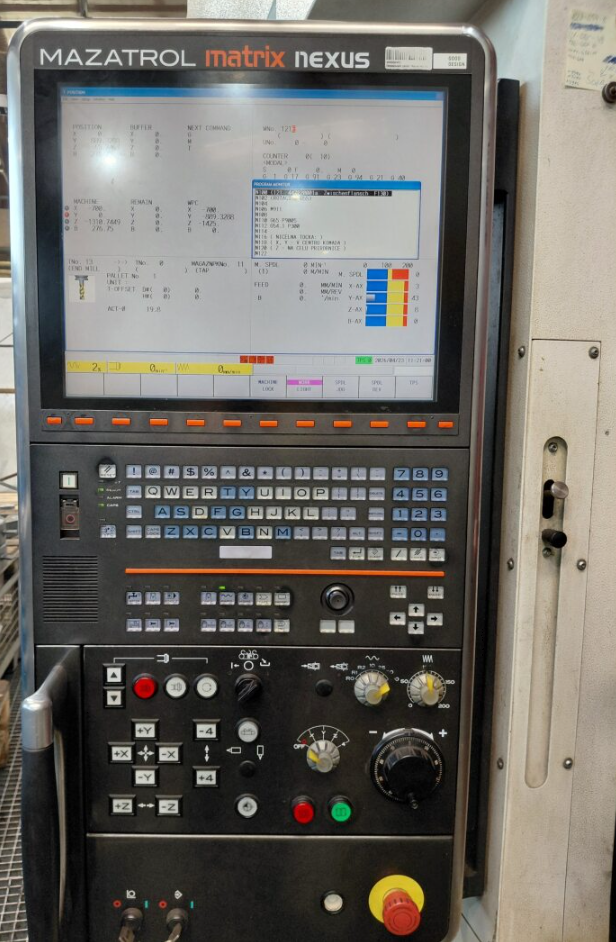

- Mazak Monitoring System B with optical measuring probes Type OMP60
- Automatic tool length measuring
- Synchronized thread-drilling
- Rapid traverse with consistent grade angle movement
