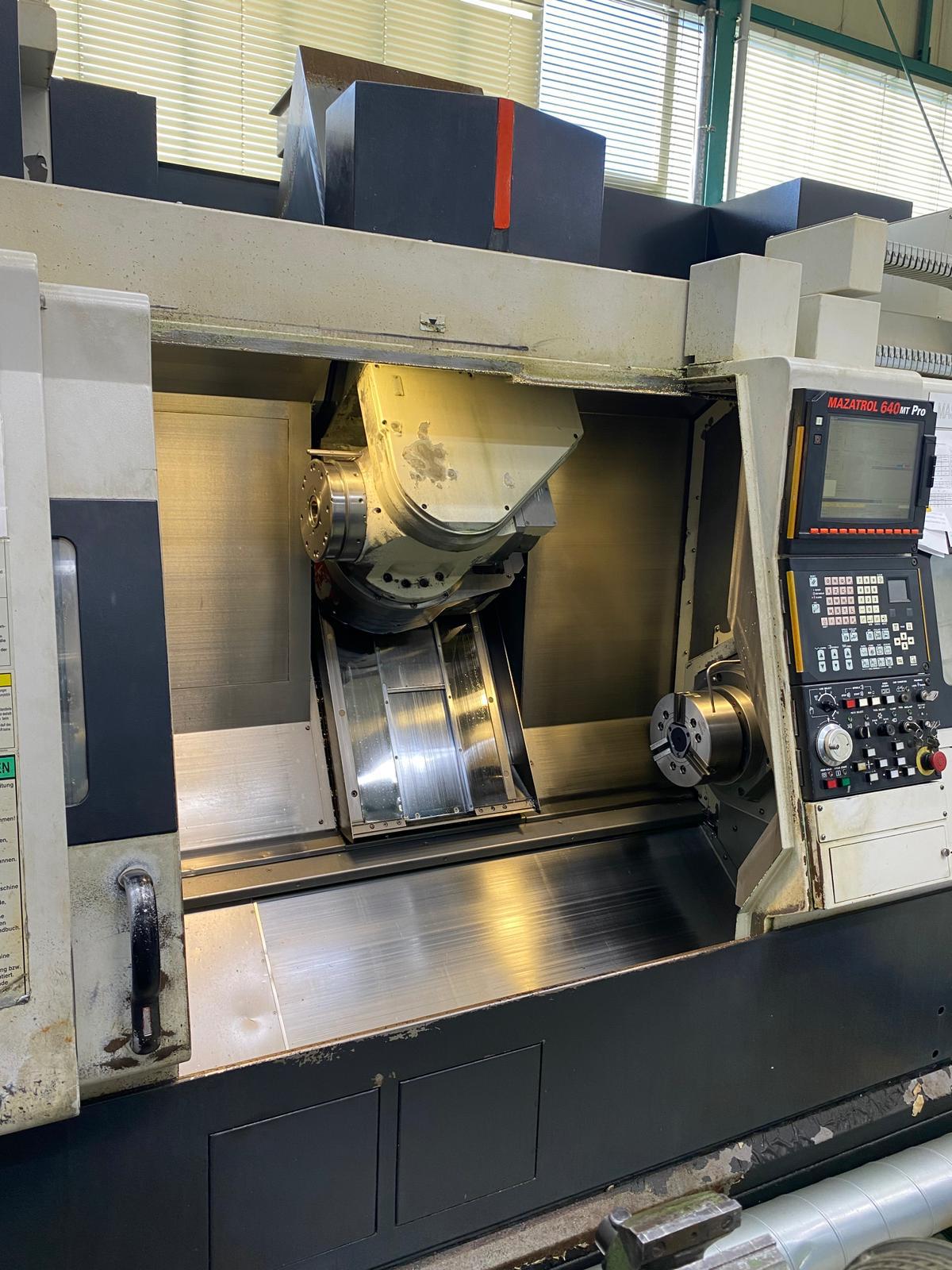

MAZAK INTEGREX 200-III S

Machine Overview

Machine Type: Used Multi-Tasking Machine (Turn-Mill Center)

Manufacturer: MAZAK

Model: INTEGREX 200-III S (IG 200S III)

Year of Manufacture: 2004

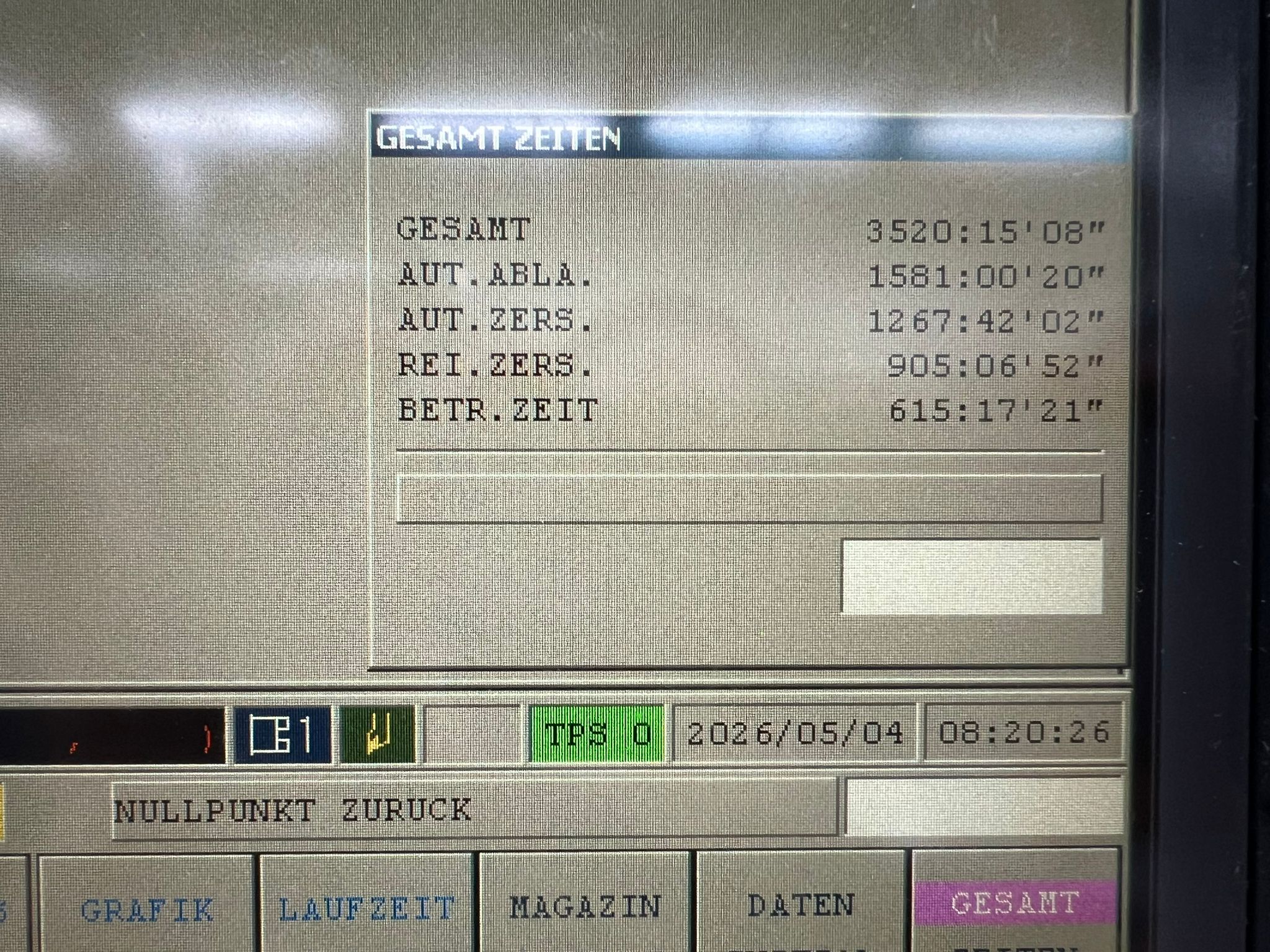

Control System: Mazatrol PC FUSION CNC 640MT Pro

Working Area & Capacity

Max. Swing / Turning Diameter: 660 mm

Max. Turning Diameter over Carriage: 500 – 660 mm

Max. Bar Work Capacity: 51 mm

Max. Workpiece Weight: 100 kg (Chucked) / 150 kg (Shaft)

Travels (X / Z / Y / W): 580 / 1045 / ±80 / 1050 mm

B-Axis Swivel Range: -30° to +195° (0.0001° positioning)

Spindle Specifications

Main Spindle: 22 kW, 35 – 5,000 rpm, 349 Nm torque

Second Spindle: 18.5 kW, 35 – 5,000 rpm, 326 Nm torque

C-Axis Indexing: 0.0001° (Both spindles)

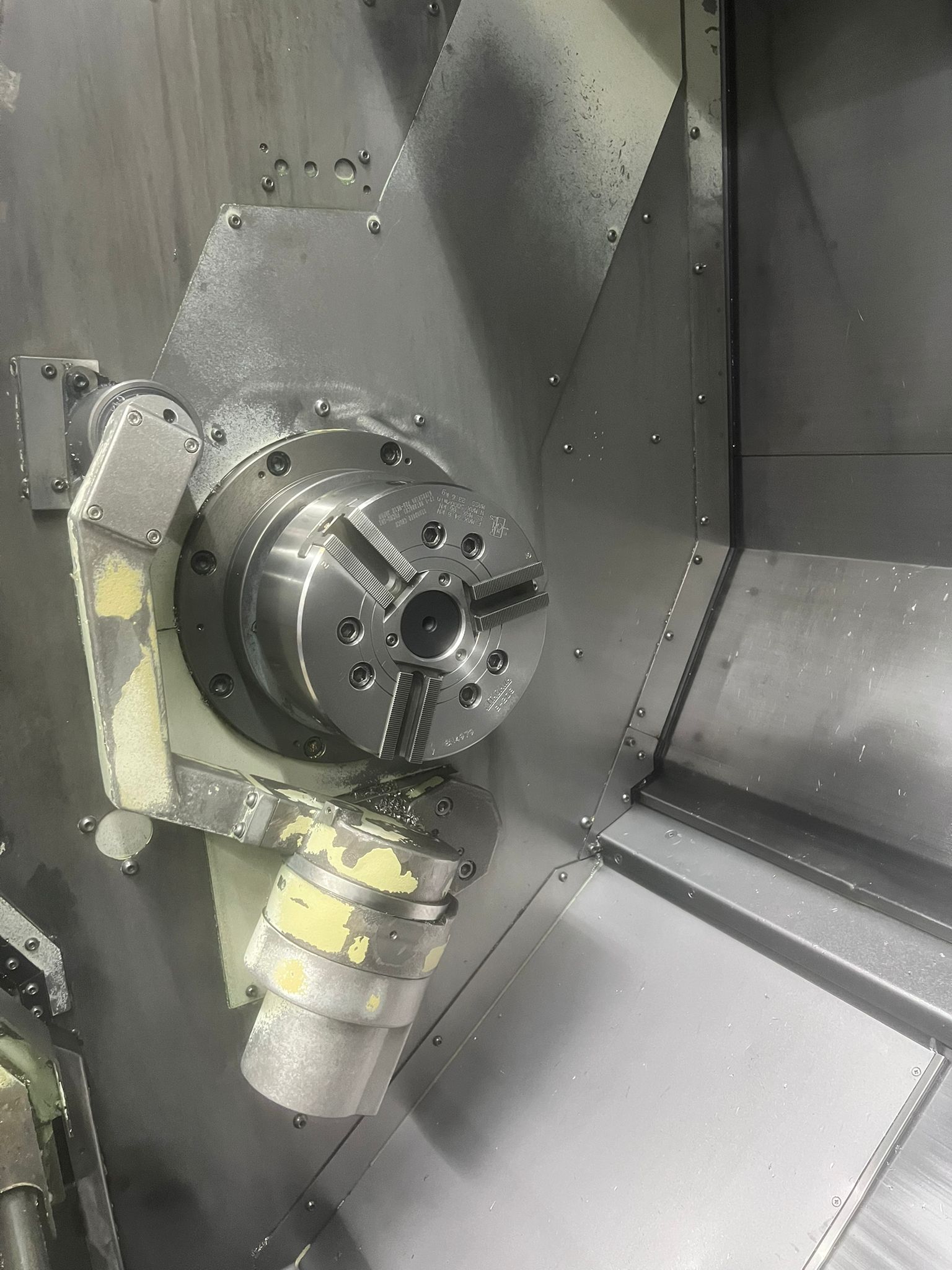

Chuck Diameter: 210 mm (Main & Second spindle, Kitagawa B-208)

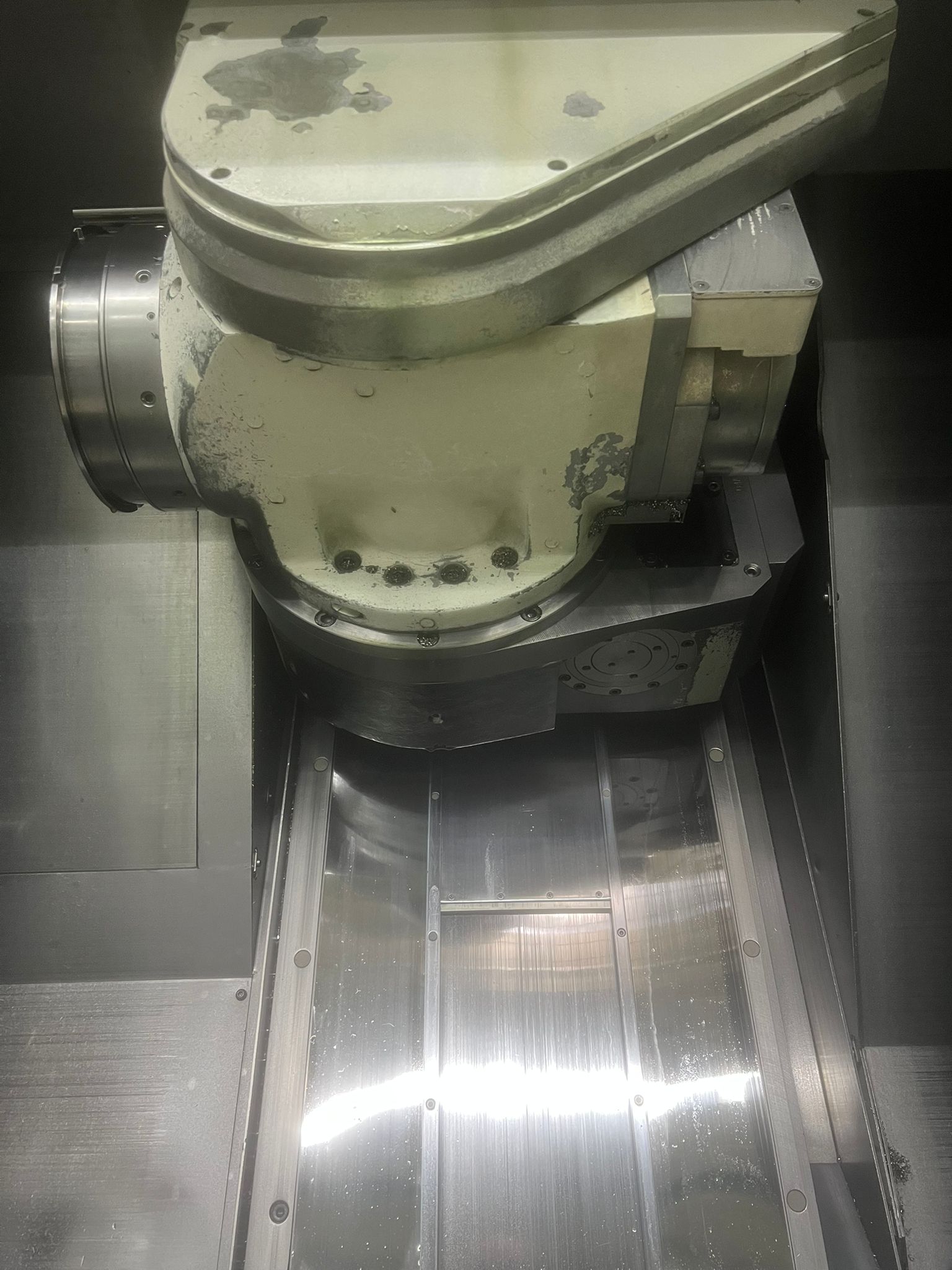

Milling Spindle & Tooling

Milling Power: 15 kW

Milling Speed: 15 – 12,000 rpm

Tool Magazine: 80-station (Drum type)

Tool Taper: MAZAK KM 63 Quick-change system

Max. Tool Dimensions: 90 mm diameter (125 mm with adjacent empty slots) x 300 mm length

Tool Change Time: approx. 1.3 seconds (tool-to-tool)

General Specifications

Machine Weight: approx. 9,700 kg

Dimensions (Footprint): 3,820 x 2,060 mm

Height: 2,597 mm

Rapid Traverse: 38 m/min (X/Z), 26 m/min (Y), 30 m/min (W)

Coolant Tank: 220 L

Included Accessories

Tool Eye (Automatic tool pre-setter)

Synchronized Main/Second spindle operation

Dual foot switch for chucking

Full coolant system and chip protection (fully enclosed)

Workspace lighting
