Vertikale Bearbeitungszentren MAZAK Variaxis C-600

x-Weg:650 mm

y-Weg:550 mm

z-Weg:530 mm

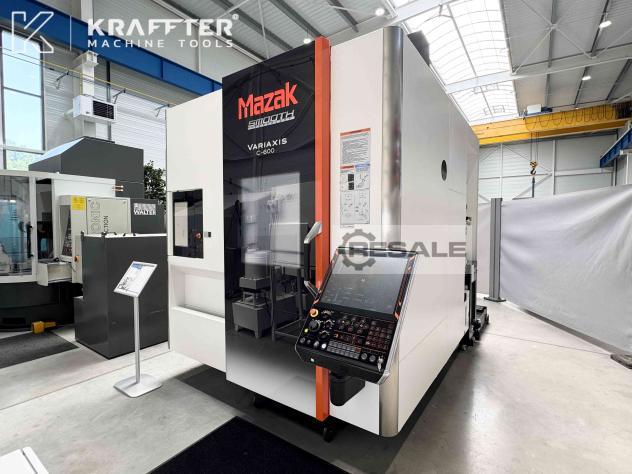

MAZAK Variaxis C600 – Machining Center

TECHNICAL FEATURES:

Year: 2020
Number of continuous axes: 5
X-axis travel: 650 [mm]
Y-axis travel: 550 [mm]
Z-axis travel: 530 [mm]
X, Y and Z axis travel speed: 42000 [mm/min]
Minimum distance. Spindle/table: 50 [mm]
Maximum distance Spindle/table: 580 [mm]
Table dimensions: Ø600 x 500 [mm]
Maximum weight Tabletop Allowable: 500 [Kg]
Angular travel C-axis: table revolution: 360 [°]
B-axis angular travel: -30 [°] / +120 [°]
Pin attachment: BT40
Maximum speed Spindle: 12000 [RPM]
Spindle power: 11 [kW]

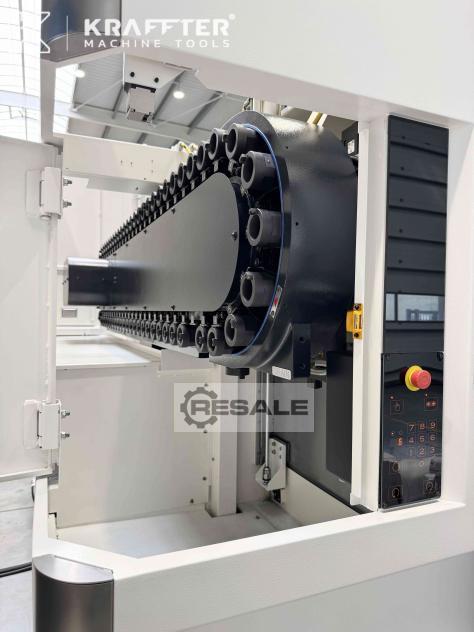

Number of tool magazine stations: 60
Maximum length Tool Size: 300 [mm]
Maximum weight per tool: 8 [Kg]
Maximum diameter Tool Size: 80 - 130 [mm]
Installed power : 46.7 [kVA]
Supply voltage: 400 [V]
Machine dimensions: 2350 x 2962 x 3039 [mm]
Floor dimensions: 5010 x 2470 [mm]
Weight: 10000 [Kg]

EQUIPMENT INCLUDED:

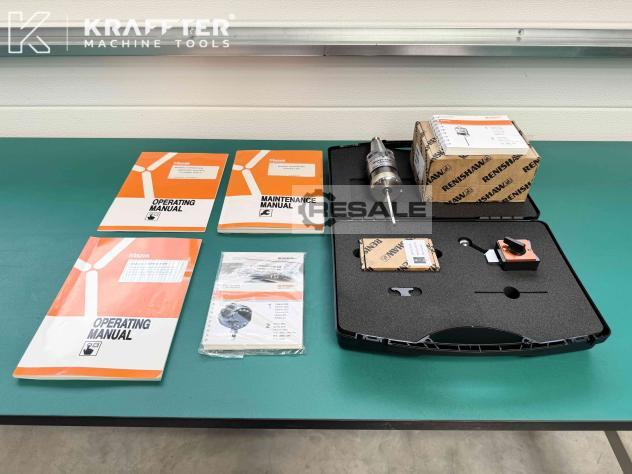

x1 RENISHAW part probe type RMP600

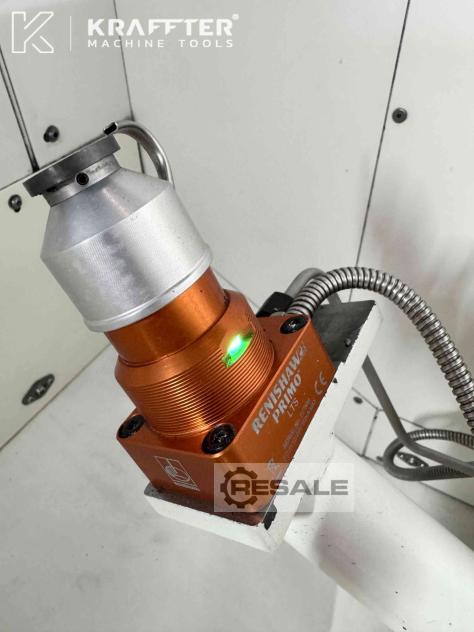

x1 RENISHAW PRIMO LTS type probe
x1 RENISHAW calibration sphere
x1 Electronic Crank

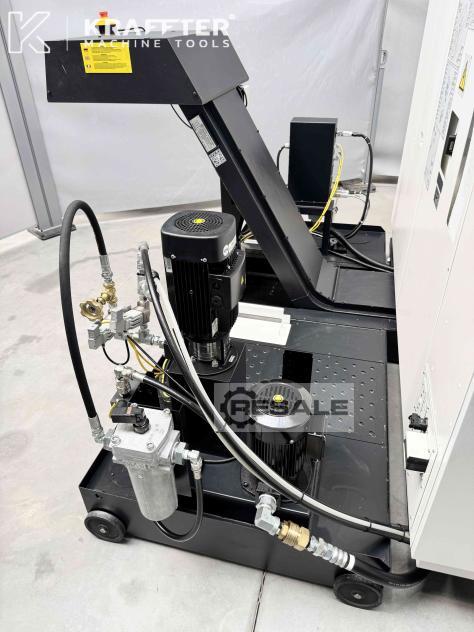

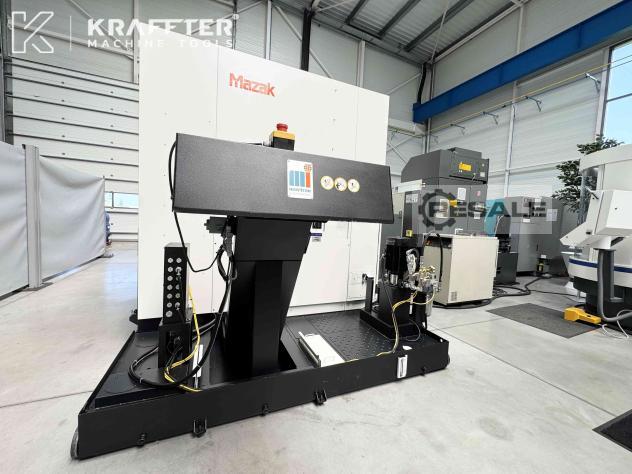

x1 Chip Conveyor
x1 High Pressure Pump 15 [bar]

Machine visible under tension for testing at our premises, by appointment.

Price excl. VAT on request, including truck loading.

Possibility of shipping throughout France as well as internationally.

More photos and details on request.

Technical description for information purposes only, without obligation on our part.
