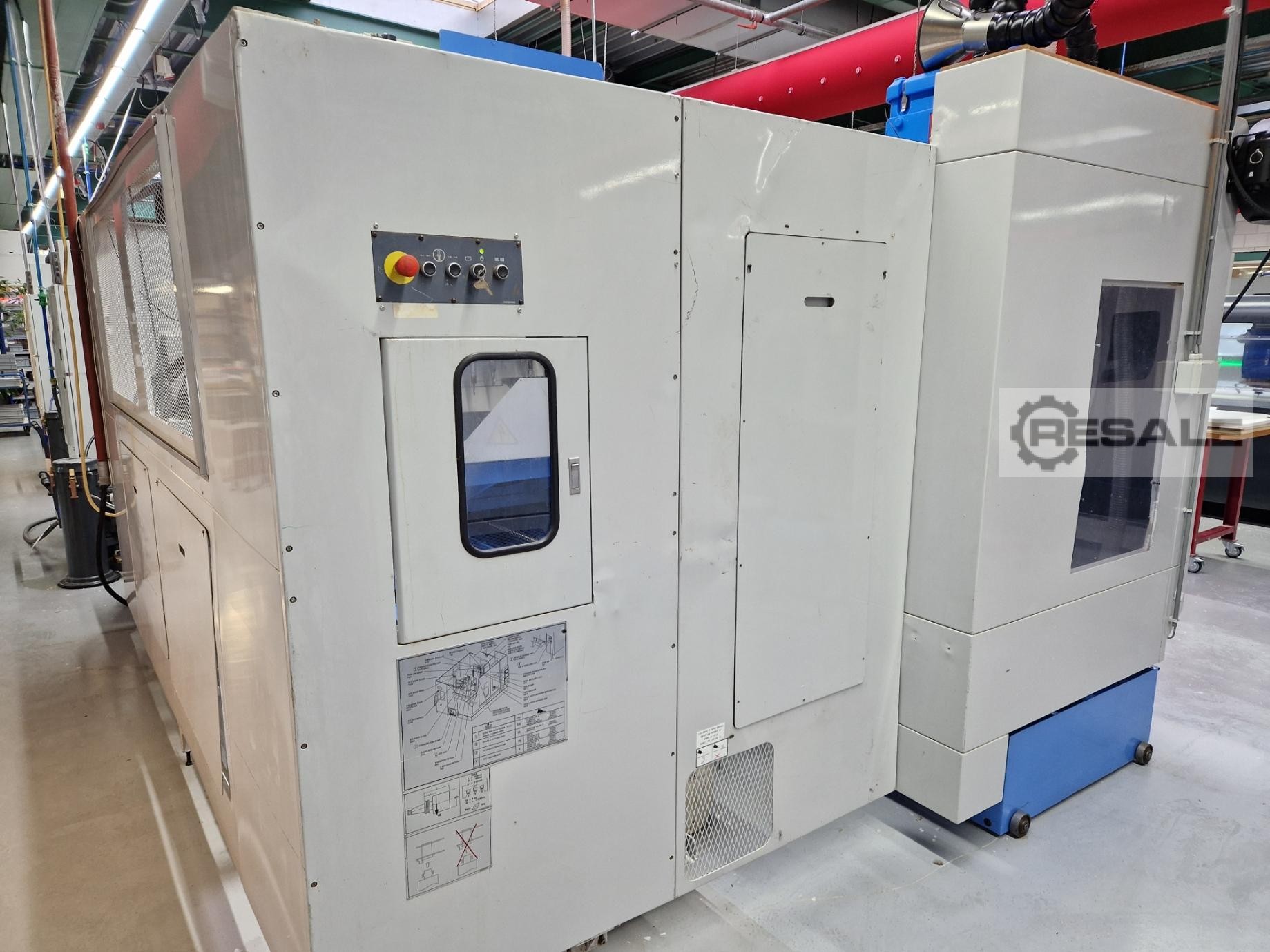

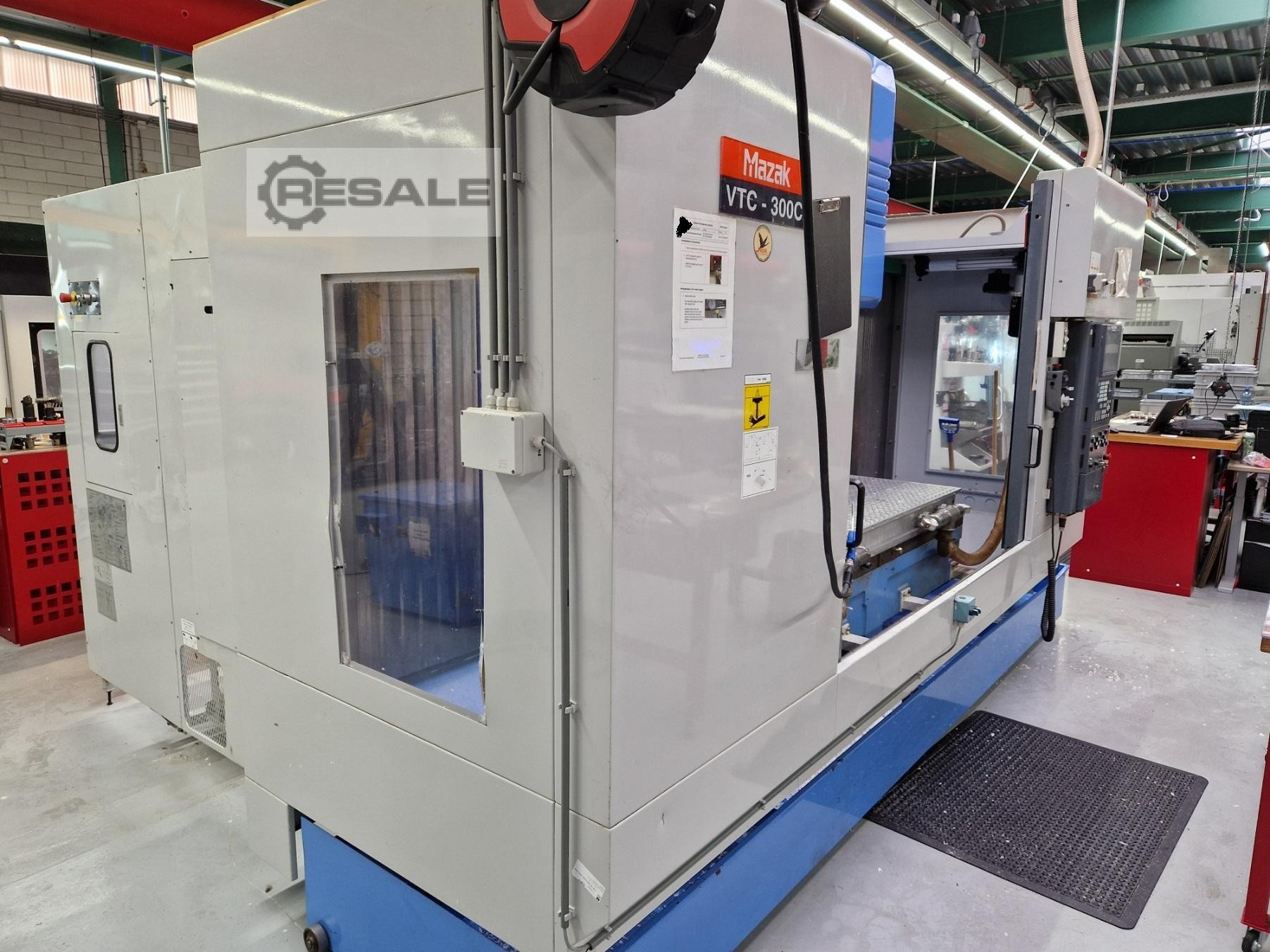

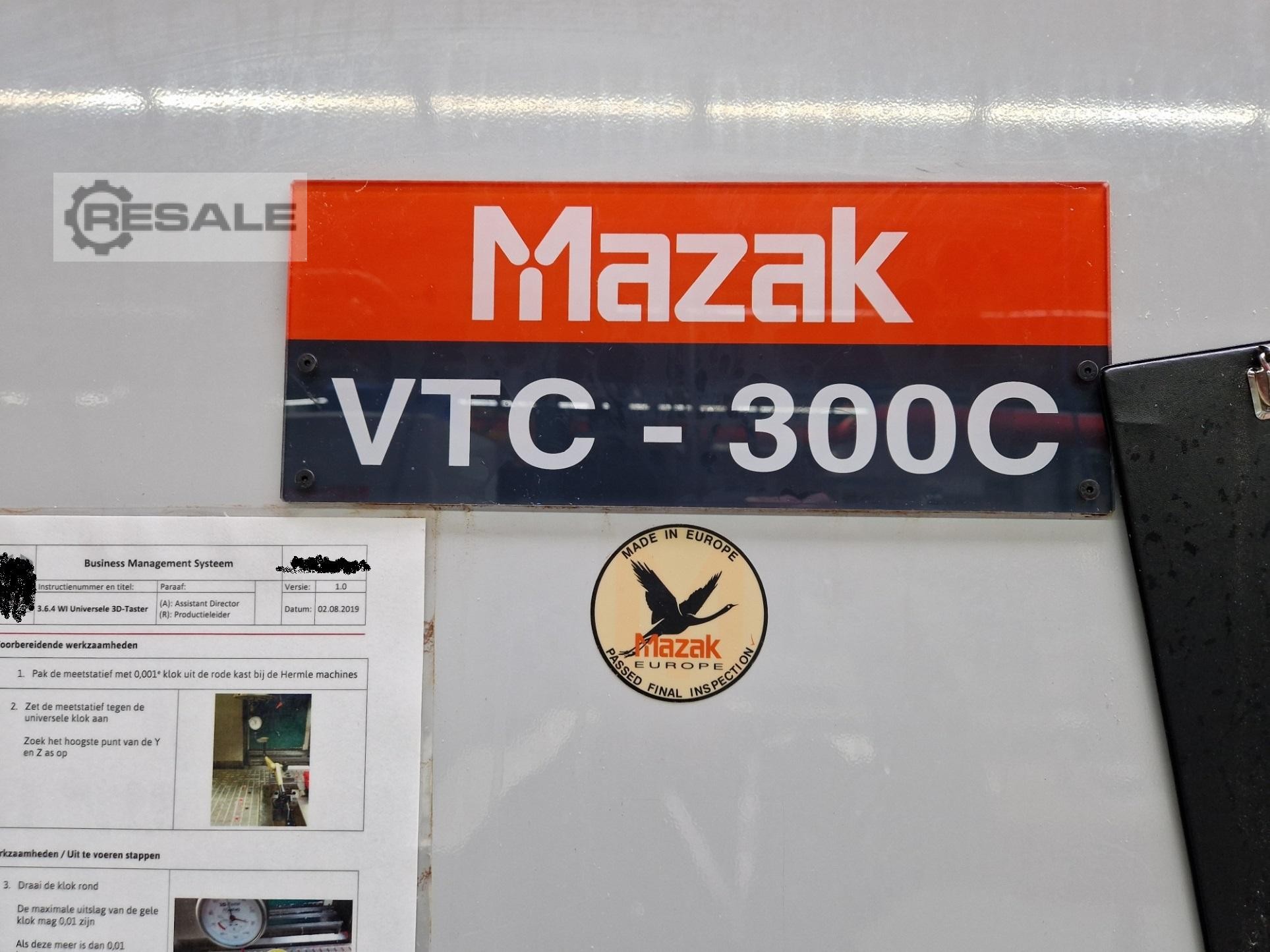

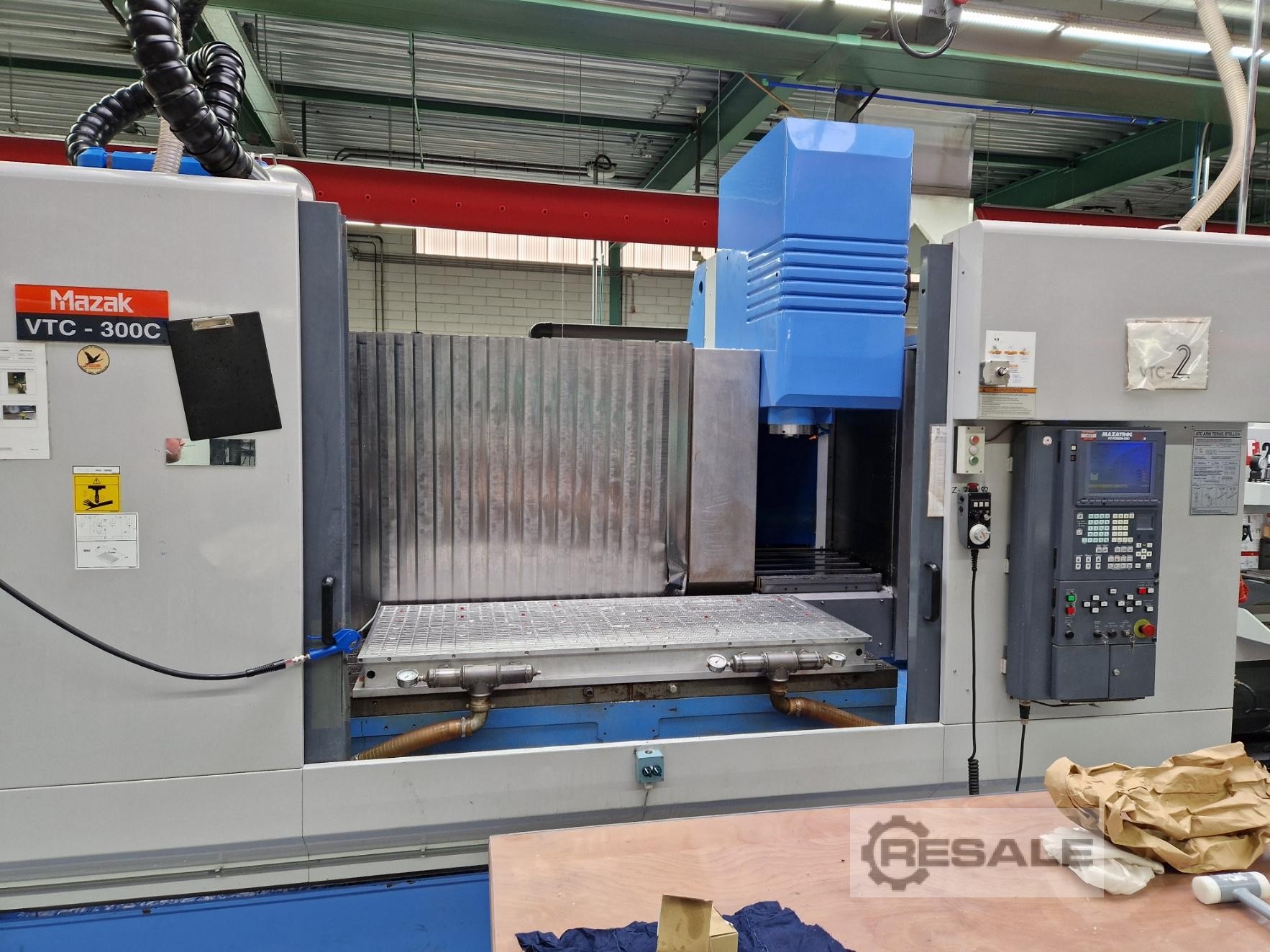

Bearbeitungszentren MAZAK VTC 300 C

x-Weg:1740 mm

y-Weg:760 mm

z-Weg:660 mm

The machine has only machined plastics.
Technical Specifications:
Table size 905 x 2,000 mm
Max. table load 1,400 kg
Distance between:

Travel paths
X-axis 1,740 mm
Y-axis 760 mm
Z-axis 660 mm

Rapid traverse:
X/Y/Z-axis 30 m/min
Feed 1 - 8,000 mm/min

Main spindle
Speed range 10,000 rpm
Tool holder SK40
Main drive power 18.5 kW
Tool magazine
Number of tool positions 30
Max. tool diameter 80 mm
- with free extension 110 mm
Max. tool length 350 mm
Max. tool weight 8 kg
Machine data
Total connected load 22 kVA
Machine weight, approx. 10,500 kg
Machine dimensions (L x W x H), approx. 4.50 x 3.50 x 3.10 m
Verkäufer Angebot Nr. resale 166902559
