Horizontale CNC Bearbeitungszentren MCM Tank 1300 5-Axis

5-Axis Horizontal Machining Centre with Pallet changer

MCM Tank 1300 5-Axis

New in 2017

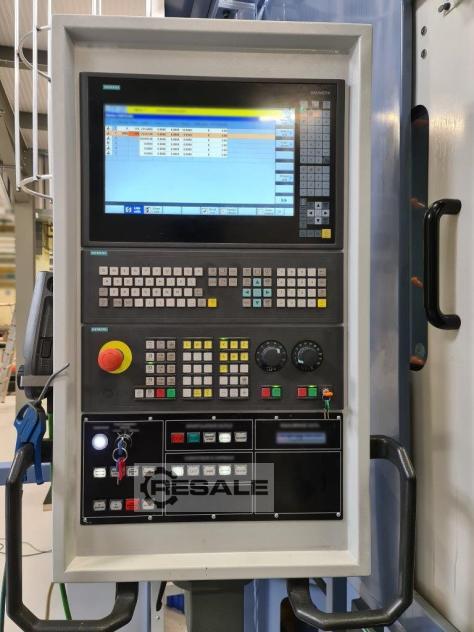

Siemens 840D solution line


Twin pallets 630 x 800 mm

Work weight max. 1500 kg

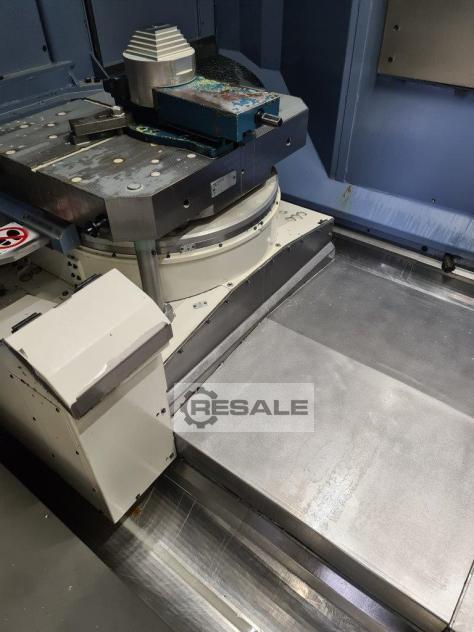

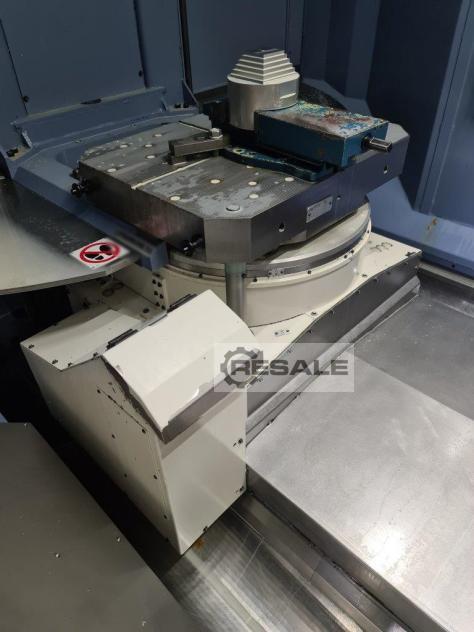

NC rotary table - 4th axis B-Axis 360° / 0.001°

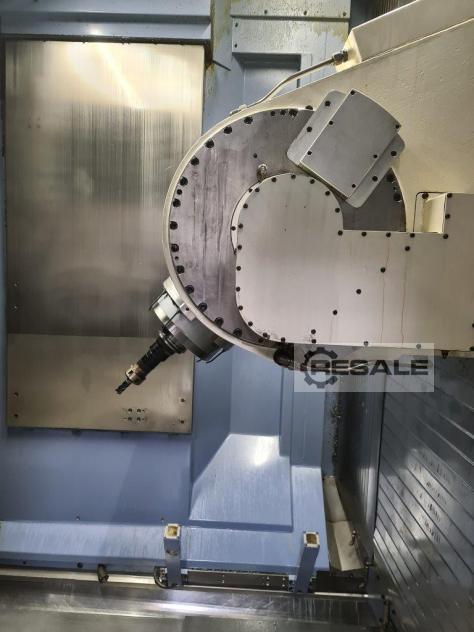

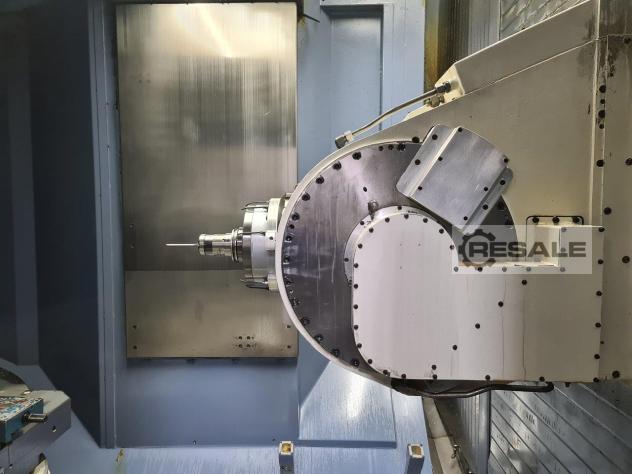

NC-Tilting head 5th axis A-Axis +80°/-95° / 0.001°


X 1300 mm
Y 1400 mm
Z 1400 mm

Feeds and rapids to 50000 mm/min.

Spindle drive 40/52 KW

Spindle speeds to 10000 rpm

Tool taper ISO 50

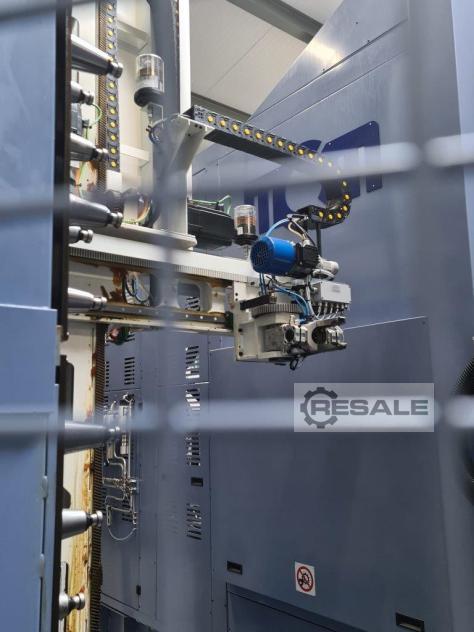

199 tool ATC

Linear scales for higher accuracies

Renishaw probe

Chip conveyor

CTS 65 bar

Beautiful machine – excellent condition

Operating hours 13713 - 10/2022)

Spindle Working hours 7238 (10/2022)


Inspect under power

Proposal Number MH-6155

Verkäufer Angebot Nr. resale MH-6155
