Very few working hours: ca. 200 h
Technical and visual condition: very good+
Pictures attached
Price: 16.000 EUR net ExW
Heavy welded steel construction
Horizontal and vertical work possibility

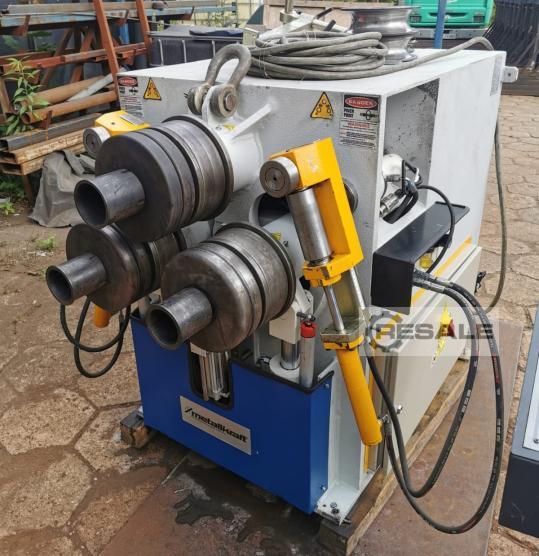

All three rollers driven by hydraulic motor and planetary gear
Hardened rolls
Hydraulic delivery via two lower rollers
Lateral mechanical straightening rollers, infinitely adjustable

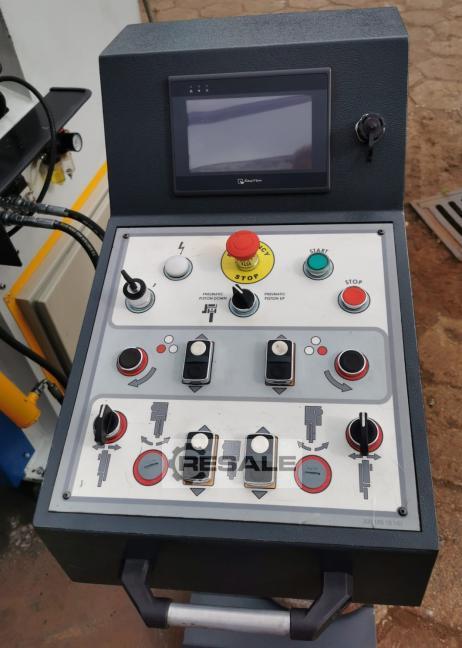

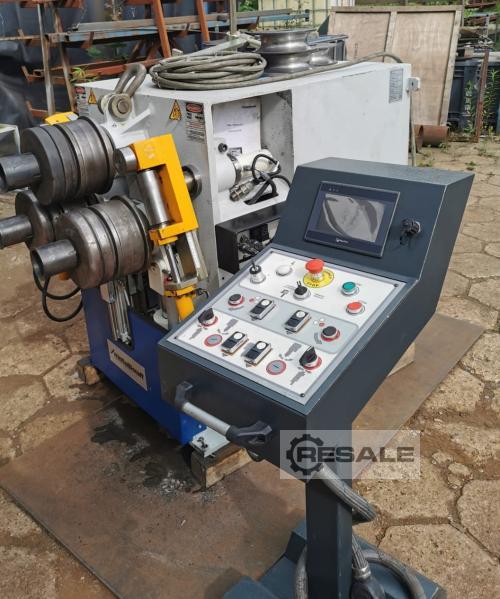

Separate control panel with foot control and 2 digital displays
Bending performances profile type optional
Explanations for bending performance, profile type optional The
performance data apply to material with a max. Yield strength of 24kg
/ mm². Bending power at VA: factor 0.7
Bending performances profile type standard
Square material dimensions [1] 45 mm
Square material min. bending Ø [1] 500 mm
Square material dimensions [2] 15 mm
Square material min. bending Ø [2] 380 mm
Flat material light axis dimensions bending Ø [1] 125 x 25 mm
Flat material light axis min. bending Ø [1] 600 mm
Flat material light axis dimensions bending Ø [2] 60 x 5 mm
Flat material light axis min. bending Ø [2] 300 mm
Flat material heavy axis dimensions bending Ø [1] 100 x 20 mm
Flat material heavy axis min. bending Ø [1] 2000 mm
Flat material heavy axis dimensions bending Ø [2] 80 x 20 mm
Flat material heavy axis min. bending Ø [2] 800 mm
Flat material heavy axis dimensions bending Ø [3] 30 x 10 mm
Flat material heavy axis min. bending Ø [3] 300 mm
UPN profile top rib dimensions [1] 80 x 9 mm
T profile top rib min. bending Ø [1] 800 mm
UPN profile top rib dimensions [2] 25 x 3.5 mm
T profile top rib min. bending Ø [2] 280 mm
Explanation for T profile rib above Additional spacers may be
required
UPN profile outside rib dimensions [1] 70 x 8 mm
T profile outside rib min. bending Ø [1] 800 mm
UPN profile outside rib dimensions [2] 25 x 3.5 mm
T profile outside rib min. bending Ø [2] 280 mm
UPN profile inside rib dimensions [1] 70 x 8 mm
T profile inside rib min. bending Ø [1] 800 mm
UPN profile inside rib dimensions [2] 25 x 3.5 mm
T profile inside rib min. bending Ø [2] 280 mm
UPN profile outside leg dimensions [1] UPN 140
UPN profile outside leg min. bending Ø [1] 1600 mm
UPN profile outside leg dimensions [2] UPN 120
UPN profile outside leg min. bending Ø [2] 900 mm
UPN profile outside leg dimensions [3] UPN 100
UPN profile outside leg min. bending Ø [3] 600 mm
UPN profile inside leg dimensions [1] UPN 140
UPN profile inside leg min. bending Ø [1] 1600 mm
UPN profile inside leg dimensions [2] UPN 120
Inside leg min. bending Ø [2] 1000 mm
UPN profile inside leg dimensions [3] UPN 100
UPN profile inside leg min. bending Ø [3] 800 mm
Explanations for bending performance, profile type standard The
performance data apply to material with a max. Yield strength of 24kg
/ mm². Bending power at VA: factor 0.7
Dimensions and weights
Length approx. 1450 mm
Width/depth approx. 1000 mm
Height approx. 1400 mm
Weight approx. 1700 kg
Electrical Data
Drive motor output 4 kW
Supply voltage 400 V
Mains frequency 50 Hz
Machine data
Shaft diameter top 80 mm
Shaft diameter bottom 70 mm
Roller diameter top 245 mm
Roller diameter bottom 245 mm
Speed 6 m/min
