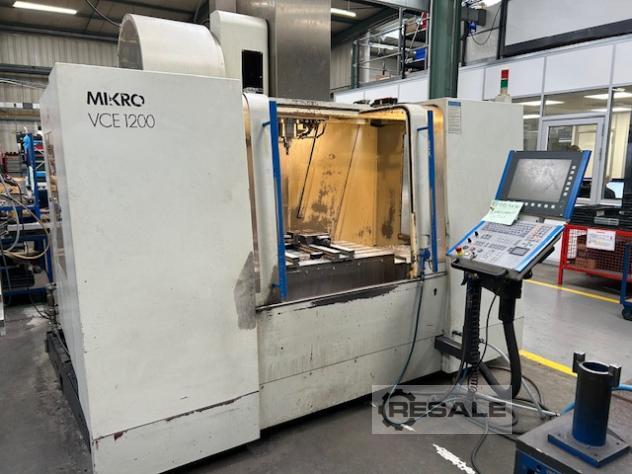

CNC Bearbeitungszentren MIKRON- CHARMILLES VCE 1200

x-Weg:1200 mm

y-Weg:600 mm

z-Weg:670 mm

Machine-Details
Stock-No. 1105-03992
Type of machine Machining Center - Vertical
Make MIKRON
Type VCE 1200
Year of manufacture 2005
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Switzerland
Delivery time immediately
Freight basis ex stock HAGUENAU FRANCE

Technical details
x-travel 1200 mm
y-travel 600 mm
z-travel 670 mm
CNC-control Heidenhain iTNC 530
max. distance between table and spindle-nose 650 mm

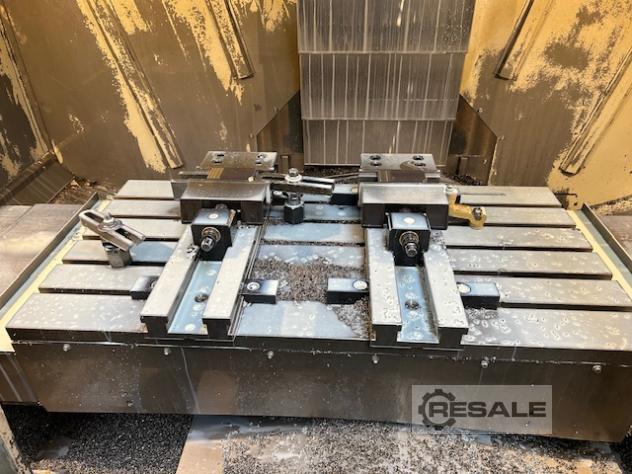

table-size 1220 X 620 mm
max. table load 1500 kg

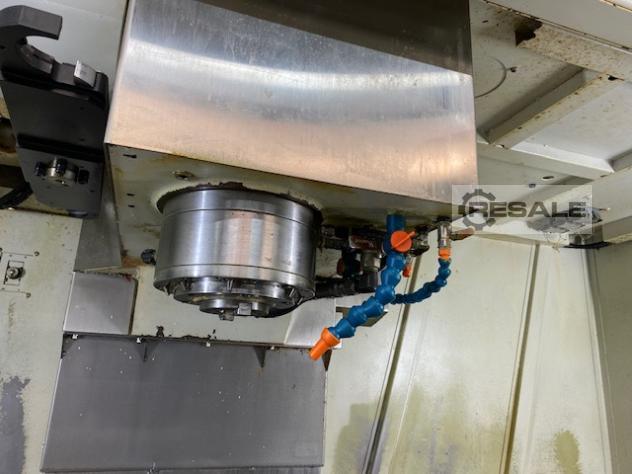

spindle taper ISO 40
spindle turning speed range 10000 U/min
feed stepless 24 / 24 / 20 mm/min
rapid traverse 24 / 24 / 20 m/min
drive capacity - spindle motor 18 kW
tool change unit 24 Pos.
voltage 400 V
total power requirement 35 kVA
weight of the machine ca. 8 t
dimensions of the machine ca. 3.250 X 3.240 X2.8 m
Additional information

- electrical hand wheel
- chip conveyor
- TNC HEIDENHAIN 530
Verkäufer Angebot Nr. resale 163534511
