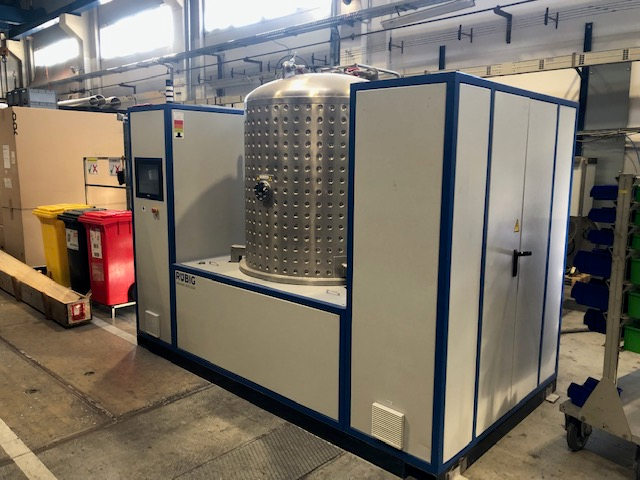

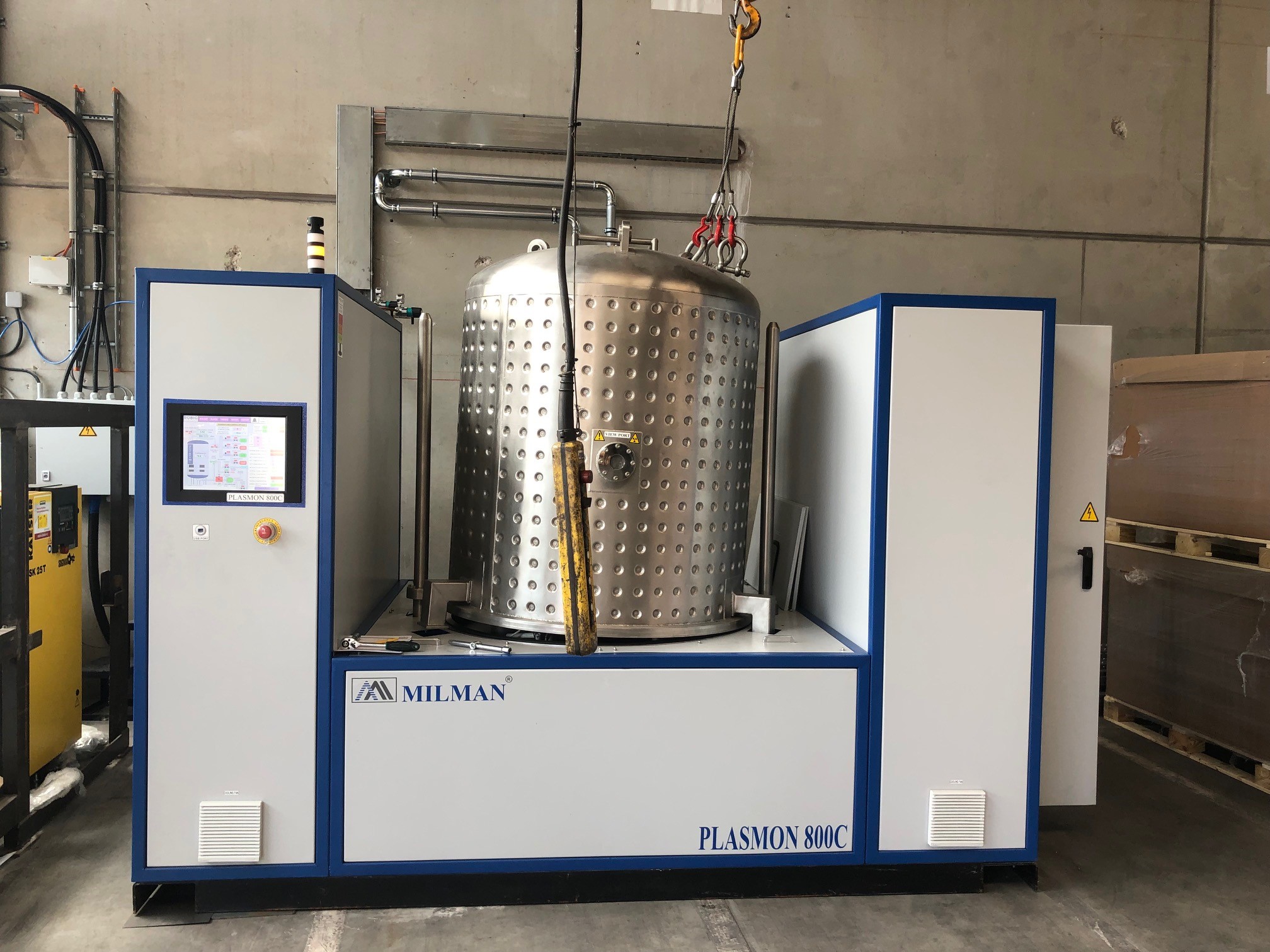

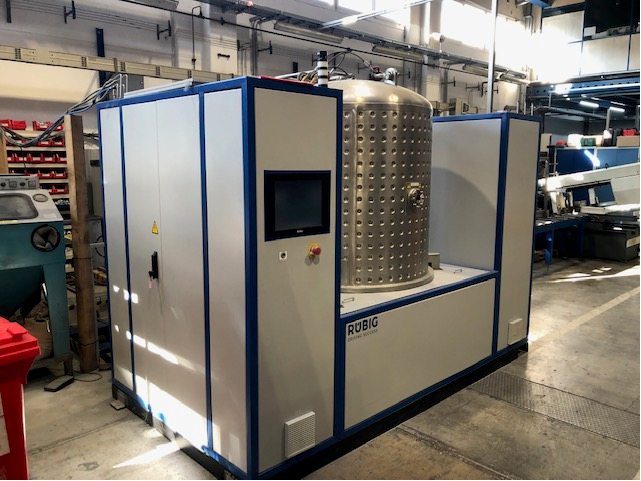

Kaltwand-Plasmaanlage MILMAN Plasmon 800C

Cold wall plasma system

this system has only been put into operation and has not been in use since then.

It is used to activate surfaces or can also be used for nitriding processes.

The equipment is as good as new and has never been in full production

Usable space diameter 800mm

Usable space height 1100mm

Max. load 1500kg

Operating hours only approx. 250h.

Technical data:

Usable volume DM 800mm H1100mm

Max. load 1500kg

Max. process temperature 580°C

Pressure sensors manufacturer Pfeiffer - Model: CCR 373

Mass flow controller manufacturer Alicat (Ar, N2, CH4, H2)

Vacuum pump manufacturer Pfeiffer Duo 65M

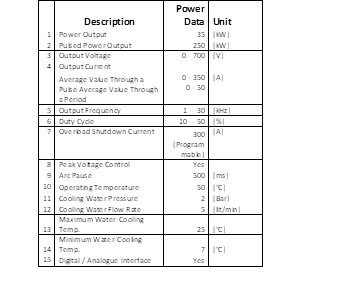

Plasma generator specification
