MITUTOYO Euro C-Apex 122010

Machine Details

- Manufacturer: Mitutoyo
- Model: Euro C-Apex 122010
- Year of manufacture: 2001
- Type of Machine : Coordinate Measuring Machine
- The regular factory calibration was last performed in March 2012

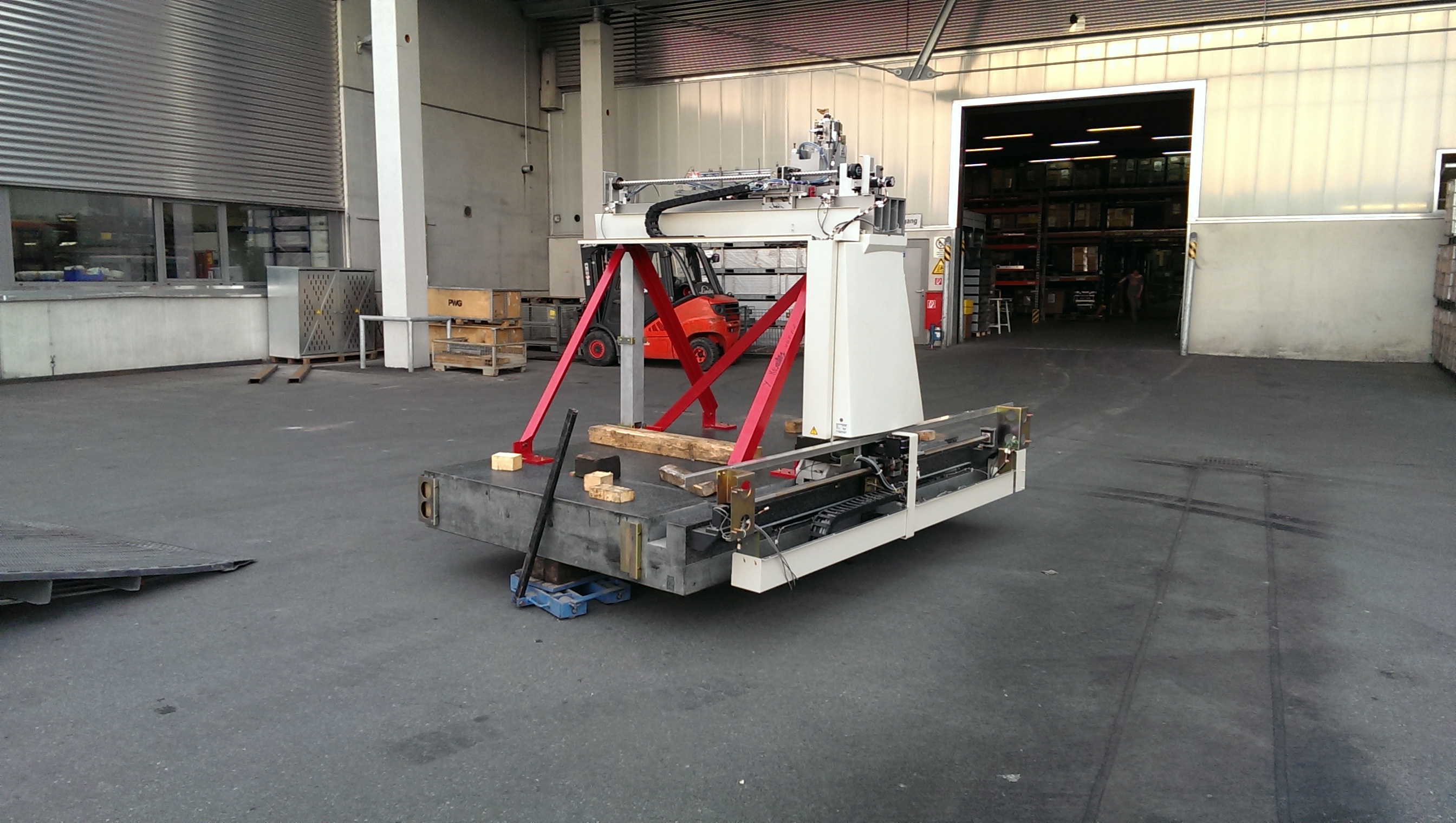

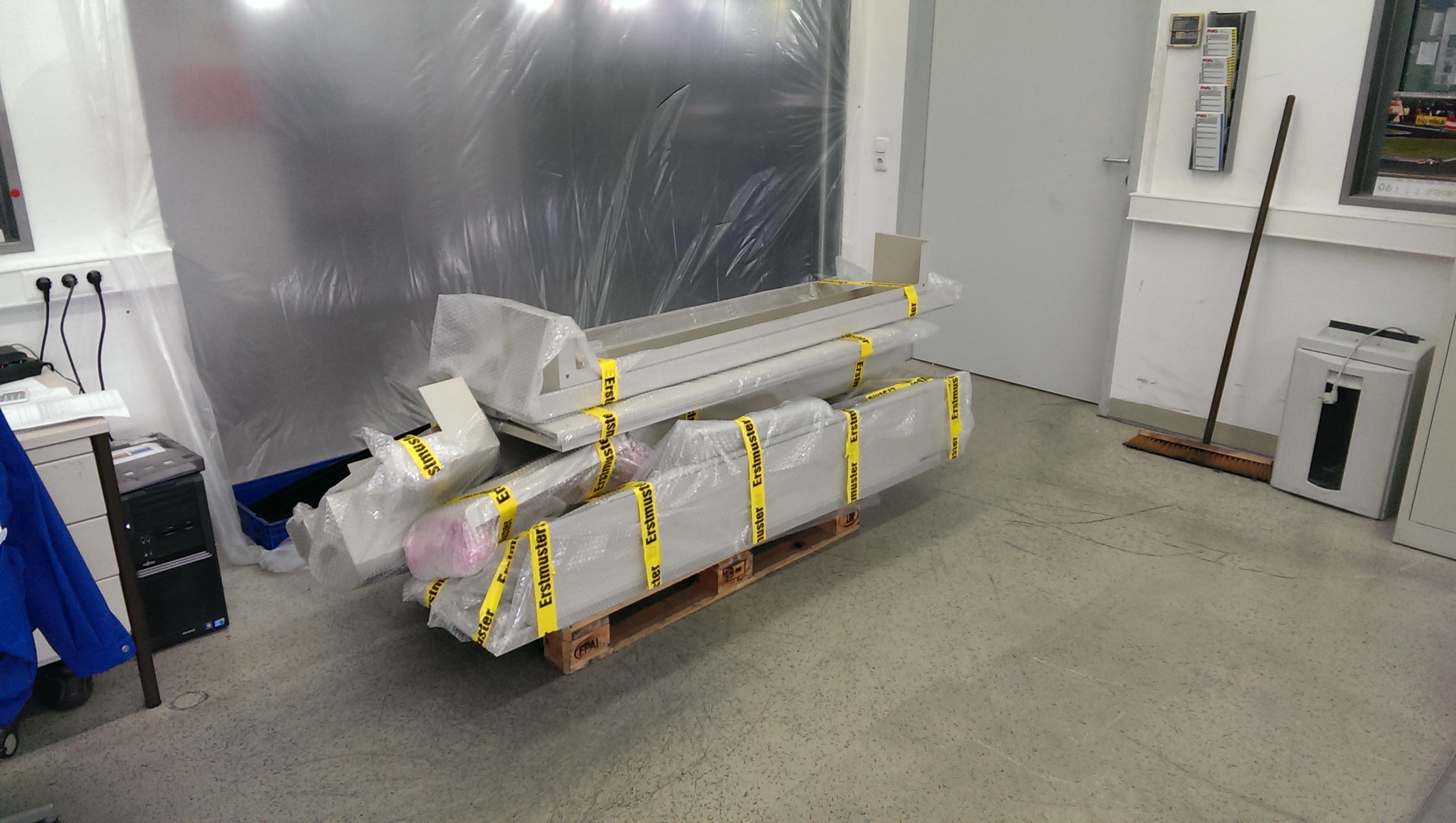

- In operation until 2013. In 2013, it was professionally dismantled by Mitutoyo. It was then stored in an industrial building.

Measuring Range

- X-axis: 2000 mm
- Y-axis: 1200 mm
- Z-axis: 1000 mm

Technical Specifications

- Accuracy (ISO 10360-2): E = 4.9 + 5L/1000 um
- Probing error (ISO 10360-2): R = 5.0 um (TP200)
- Resolution: 0.0001 mm
- Guide system: Air bearing on all axes
- Length standard: Linear encoder
- Measuring table material: Granite
- Maximum workpiece height: 1115 mm
- Maximum workpiece weight: 2000 kg
- CNC measuring speed: 1 to 3 mm/s
- Maximum drive speed: 430 mm/s

Included Equipment

- Probe head: Renishaw PH 10
- Probe system: TP 200
- Stylus rack: 6-position automatic changer
- Controller: UC220 Apex
- Software: Geopack Cosmos 2.3
