Used Case Erector Mondo & Scaglione 376 / C up to 23 box/min This Case
Erector not only forms cardboard boxes of the American” type but
also ensures high efficiency and reliability. Additionally, it seals
the bottom of each box with hot melt glue, and, most importantly, it
processes up to 23 boxes per minute. Therefore, it is perfect for
production lines that demand both precision and speed. Carton Magazine
and Carton Transfer Carriage First, the machine features a
horizontally mounted carton magazine at the lower rear, which
optimizes space and provides easy access for loading. Furthermore, the
multifunction carton transfer carriage picks, opens, and transfers
cartons using an electromechanical control system. As a result, this
setup ensures precise, continuous operation and significantly reduces
downtime during format changes or adjustments. Flap Closing and Glue
Application Next, this machine automatically manages the closing of
box flaps. Specifically, it closes the short lower flaps using an
electro-pneumatic command, while the long flaps close as the carton

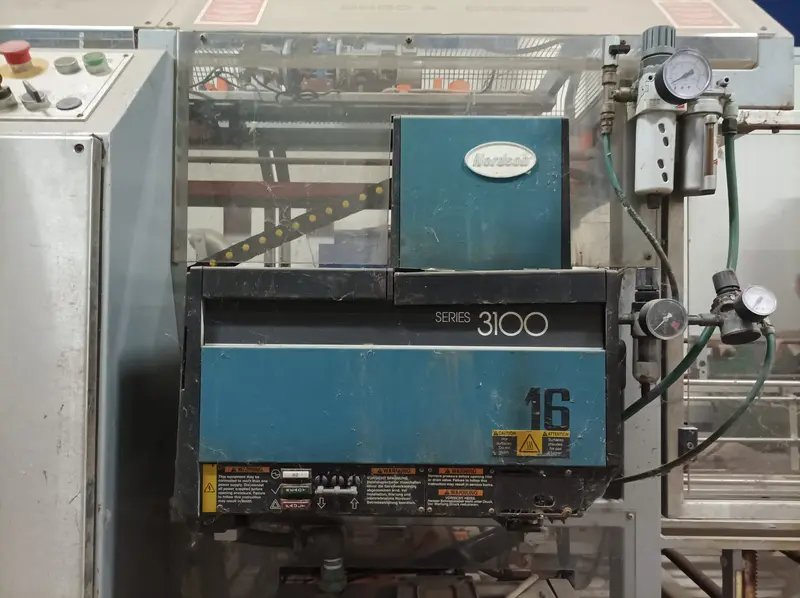

moves. In addition, the hot melt glue unit ensures a reliable, secure
bottom seal. Consequently, the machine handles these processes
entirely automatically, which, in turn, increases efficiency and
minimizes the need for manual intervention. Control and Safety Systems
In terms of control, the machine continuously monitors the presence of
cartons in the magazine and during transfer through advanced control
systems. Moreover, it alerts operators when excess cartons accumulate
at the exit. Operators, meanwhile, control all machine functions via a
touch-screen display, which simplifies adjustments and format changes.
Additionally, this display immediately shows any anomalies or
technical issues, which helps improve preventive maintenance efforts.
Siemens PLC and Safety of the Used Case Erector Mondo & Scaglione 376
/ C up to 23 box/min The Used Case Erector Mondo & Scaglione 376 / C
up to 23 box/min, in addition, uses a Siemens S7 series PLC to
precisely control every operation. Moreover, the electrical system
uses low-voltage controls, which further improves operator safety.
Additionally, the machine includes protective guards and safety
devices to meet workplace safety regulations, thereby ensuring safe
use in highly regulated production environments. Performance and
Technical Specifications In terms of performance, the machine can
produce between 15 and 23 boxes per minute, depending on box size and
configuration. As for the carton magazine, it holds between 100 and
150 cartons, thus allowing continuous operation without frequent
reloading. Furthermore, it runs on 1.5 kW of power, with an additional
3.5 kW for the glue system, making it energy-efficient. Additionally,
the machine operates at a working pressure of 5 bar and consumes
80-100 liters of air per minute, which further contributes to its
overall efficiency. Box Dimensions The machine can, in fact, process
boxes with minimum dimensions of 150 mm in length, 140 mm in width,
and 200 mm in height. At the same time, it can handle boxes up to 400
mm in length, 400 mm in width, and 500 mm in height. As a result, this
flexibility makes this machine suitable for a wide range of industrial
applications. Conclusion of the Used Case Erector Mondo & Scaglione
376 / C up to 23 box/min In conclusion, the Case Erector Mondo &
Scaglione efficiently automates box formation. Furthermore, its
ability to process up to 23 boxes per minute, apply hot melt glue for
sealing, and operate with advanced control systems makes it an ideal
choice for businesses seeking both reliability and high performance.
Consequently, this machine stands out as a powerful solution for
modern production lines.
