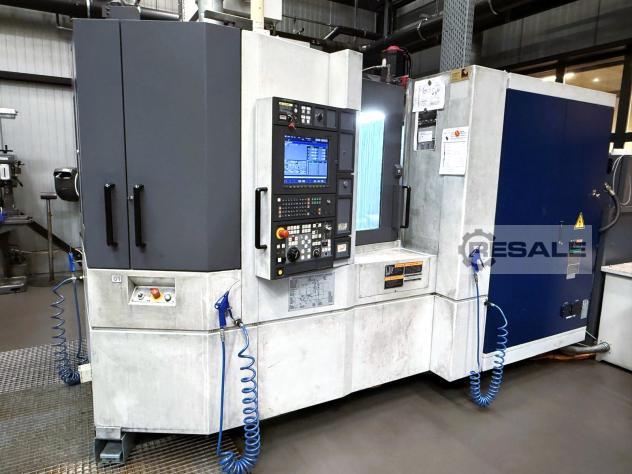

Horizontale CNC Bearbeitungszentren MORI SEIKI NH 4000 DCG

x-Weg:560 mm

y-Weg:560 mm

z-Weg:630 mm

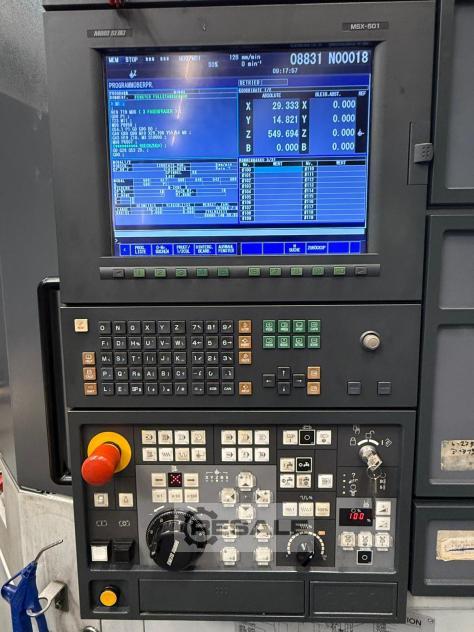

CNC controller: FS-18IMB (MAPPS 2)
Axes
X-axis travel mm: 560
Y-axis travel mm: 560
Z-axis travel mm: 630
Rapid traverse m/min: 50

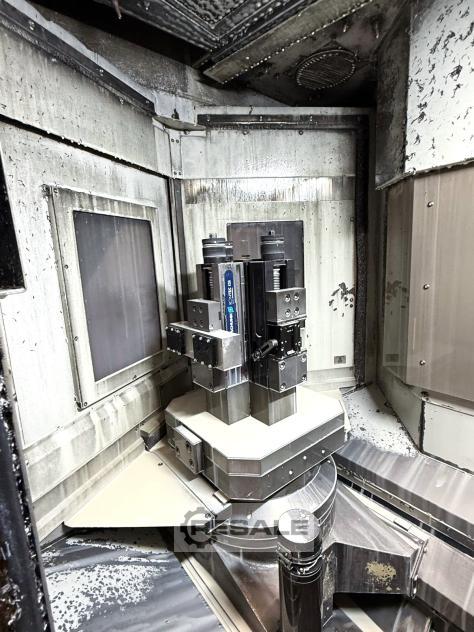

Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE

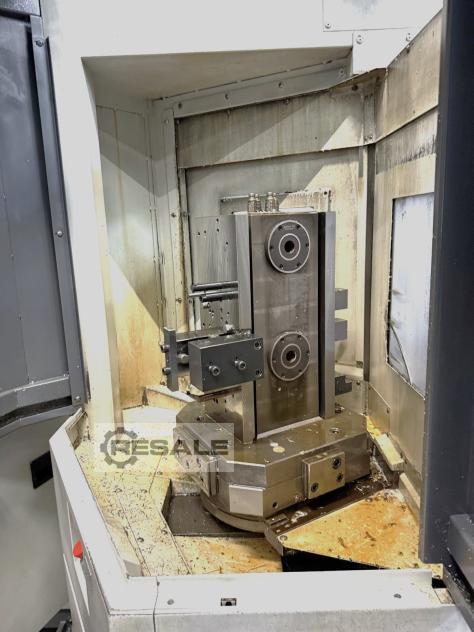

Worktable
Number of pallets: 3
Table dimensions mm: 400
Maximum workpiece size (D x H) mm: 560 x 800
Max. workpiece weight kg: 300
APC time s: 6

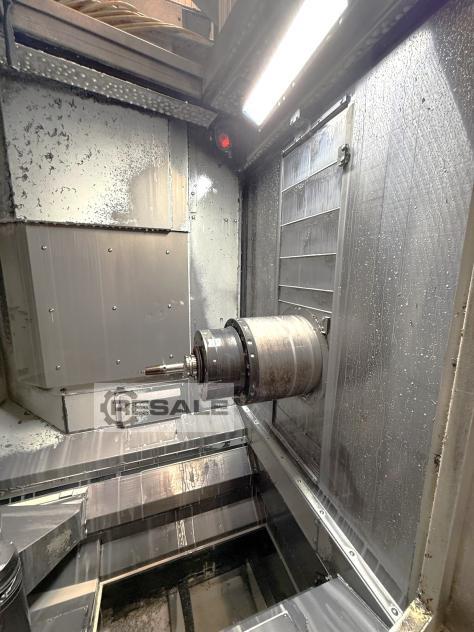

Spindle
Spindle speed rpm: 14.000
Spindle drive power kW: 18.5/11 KW
Spindle torque Nm: 120 Nm (10%ED)
Tool system
Tool holder: BT-40

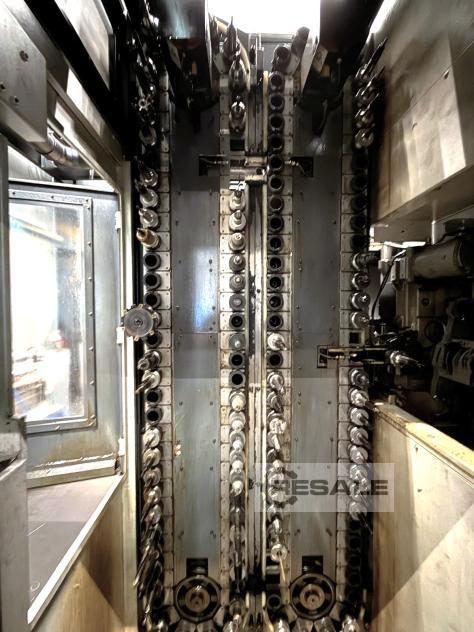

Tool magazine slots: 120
With free neighboring places mm: 140
With occupied neighboring places mm: 70
Max. Tool Length mm: 400
Max tool weight kg: 8
Tool-to-tool time s: 0,9
Chip-to-chip time s: 2,8
Equipment
Chip conveyor
Signal lamp
4th axis
Ready for internal cooling (40/80 bar)
RENISHAW OMP60
CE
Round pallet storage
Measuring system (worktable)
Cooling
Tank capacity: 500
High-pressure bar: 70
Machine running times
Under power: 135.042
Rated power kVA: 32,8
Operating Time: 37.165
Basic machine dimensions / weight
Length mm: 4.004
Width mm: 2.397
Height mm: 2.711
Weight kg: 9.600
Verkäufer Angebot Nr. resale CNC0644
