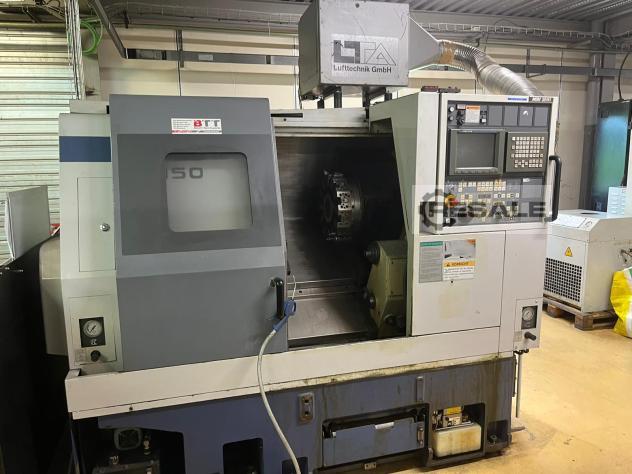

CNC Drehmaschinen MORI SEIKI SL 150

Machine-Details
Stock-No. 1105-03860
Type of machine CNC Lathe
Make MORI SEIKI
Type SL 150
Year of manufacture 1996
Type of control CNC
Storage location Lager
Country of origin Japan
Delivery time immediately
Freight basis ex Warehouse, free on truck
Price

Technical details
turning diameter 420 mm
centre distance 580 mm
turning length max. 500 mm
travel x / y 230 / 520 mm
spindle turning speed range 50 - 5000 U/min
spindle nose JIS A2-5
bar diameter round max 42 mm
spindle bearing diameter 90 mm
tool turret - number of stations 12 (12)
tool taper 20 x 20
tailstock adjustment 515 mm
tailstock quill diameter 85 mm
tailstock quill taper MT 4
tailstock travel 120 mm
rapid travel - longitudinal/face 24 / 18 m/min
coolant tank 160 l
connected load 21 kVA
weight of the machine ca. 4,1 t
dimensions of the machine ca. 7,5 x 2,5 x 1,8 m
Additional information
Fanuc CNC control 16T
tailstock
Chip conveyor

complete equipped with tools

Verkäufer Angebot Nr. resale 161423735
