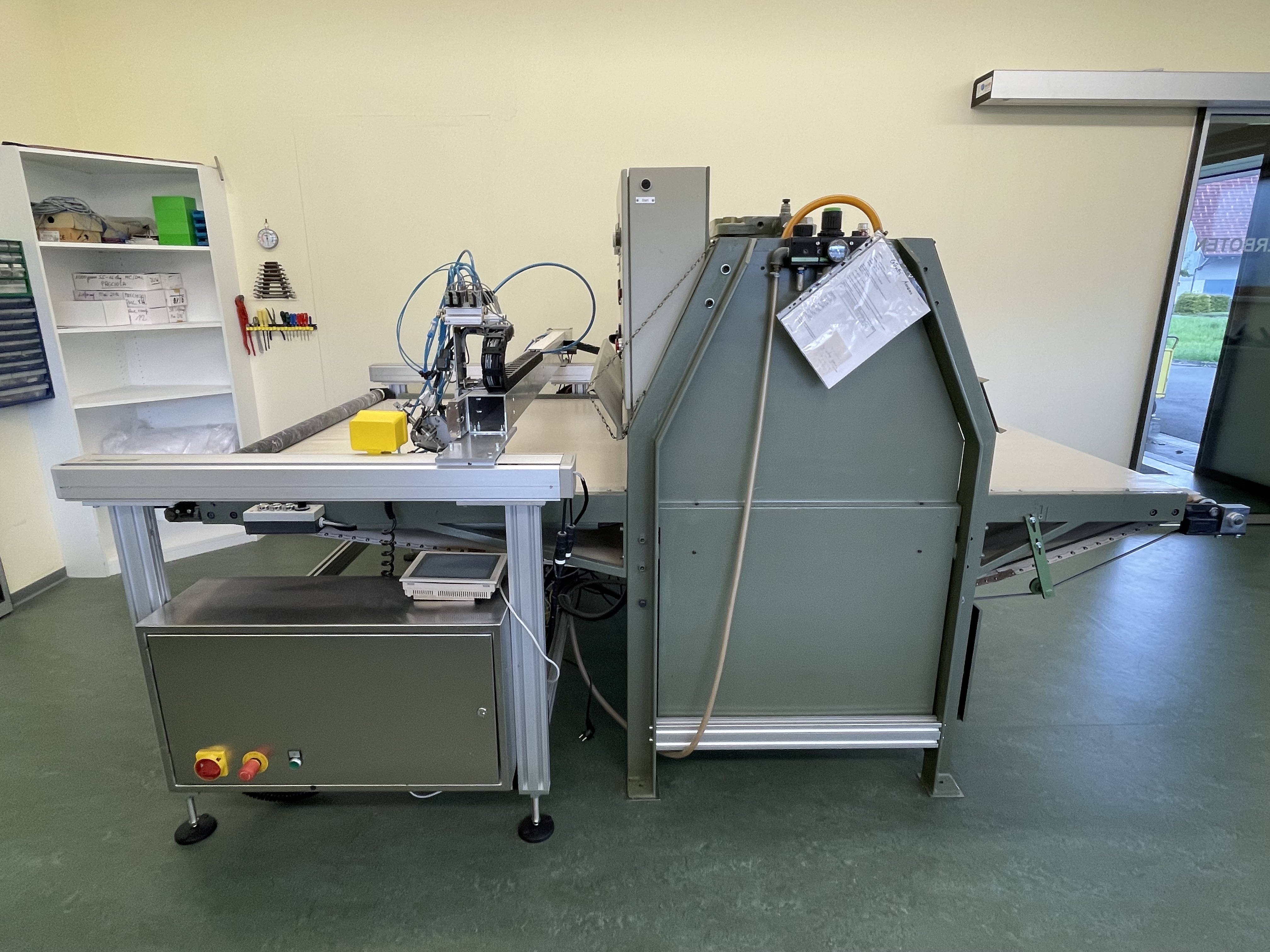

Fully functional ironing press (automatic) from N&H (Nagel & Hermann,
AT) with conveyor belt
Details:
- Pressing surface: 1,500 mm width – 800 mm depth
- Passage width: 1,700 mm

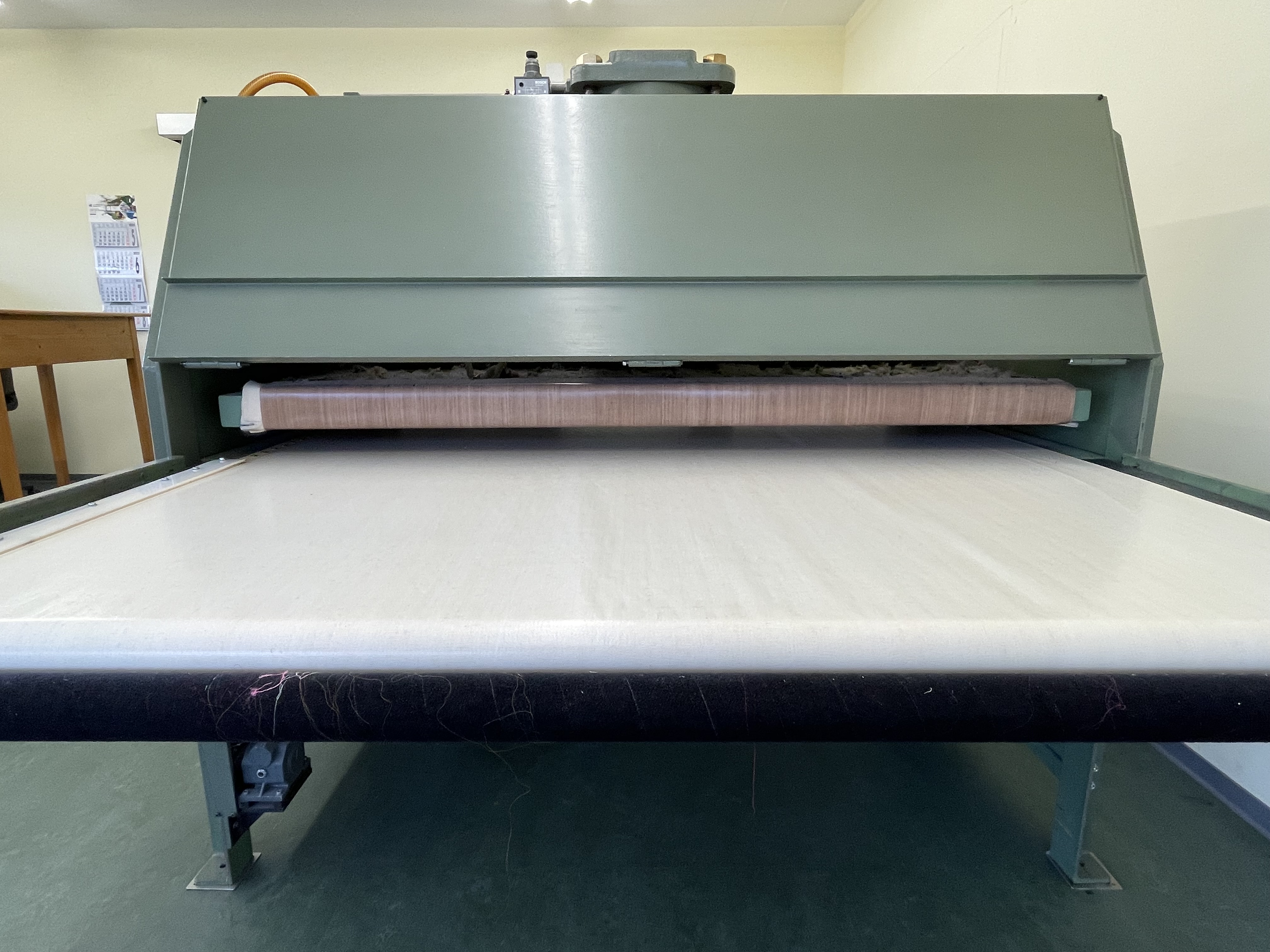

- Conveyor belt: Silicone/Teflon (5,900 mm long – 1,500 mm wide)
- Transport: Single cycle or automatic, forward or backward. Belt
movement without pressing process, speed infinitely variable
- Connection values: electricity 380 V/32 KW. Air 6bar/approx. 80L per
stroke
- Dimensions: 2.90 m long – 1.86 m wide – 1.70 m high
The ironing press has only been used sporadically (at most once per
month) in the last 5-6 years.
To optimize the transport function, additional rollers were installed
both at the back and at the front (see pictures in the appendix).
