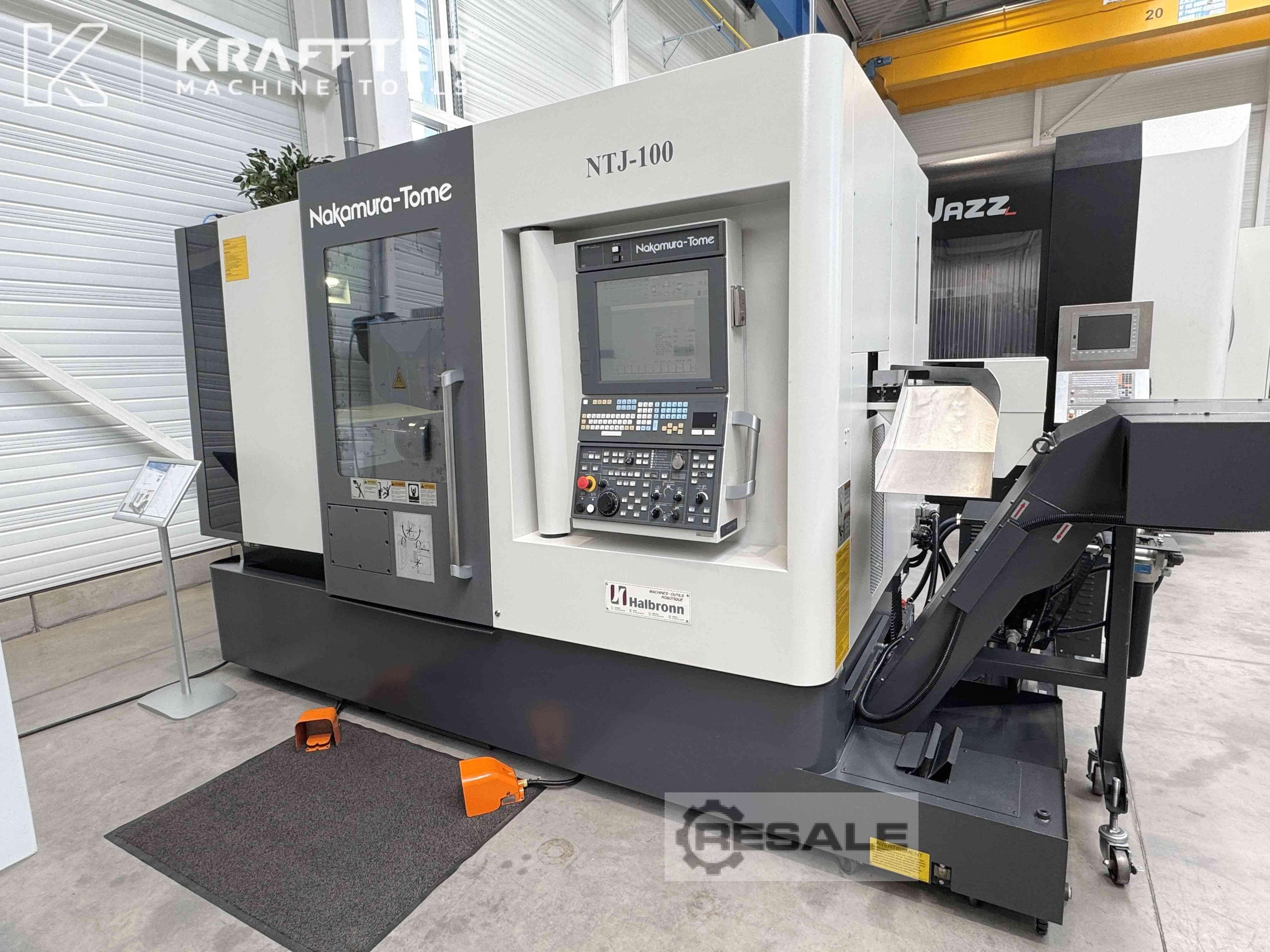

NAKAMURA CNC lathe type NTJ100
TECHNICAL FEATURES:
Year: 2014

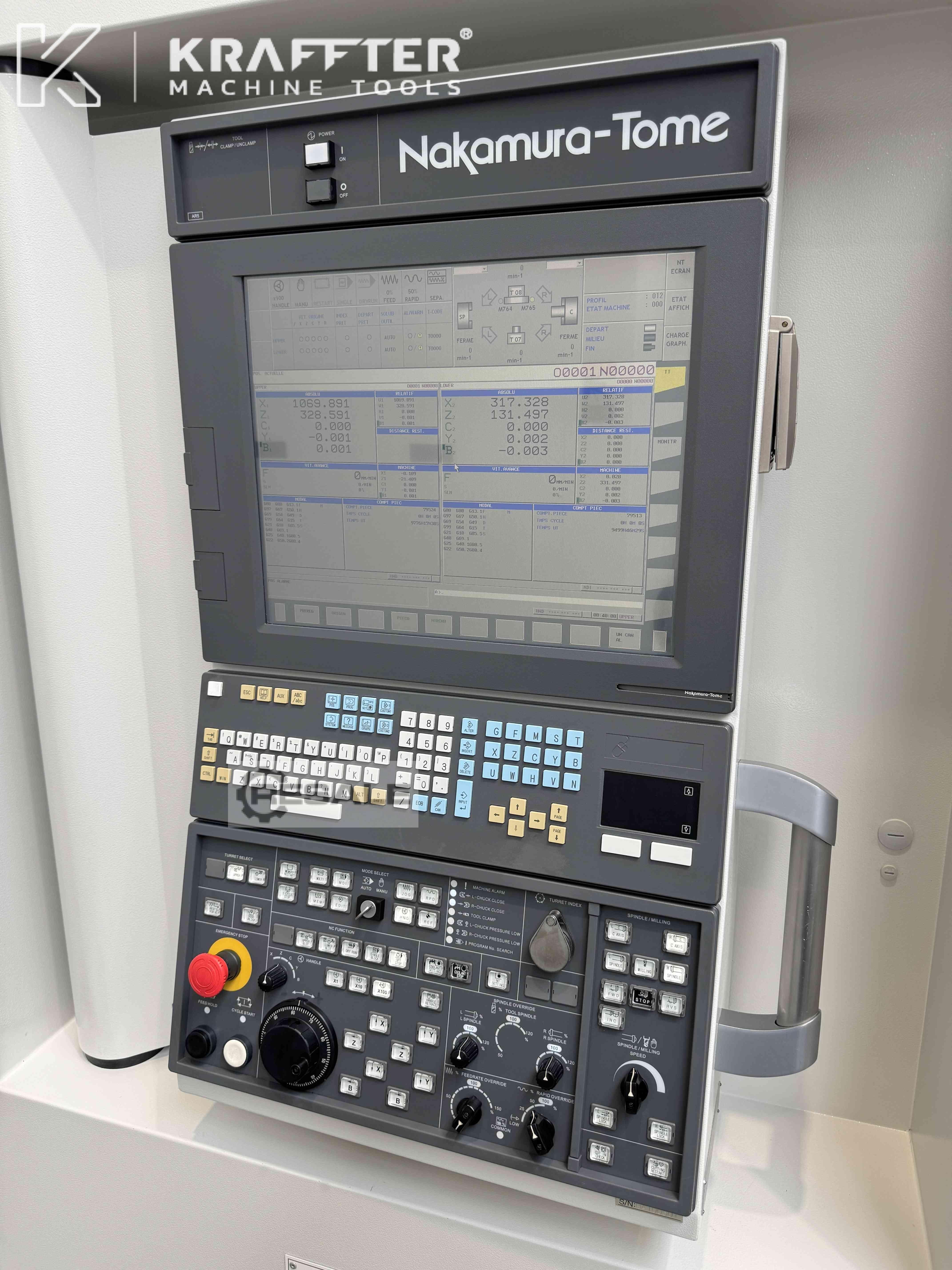

NC Type: FANUC 31i-B-NT-IPS
Colour touch screen: 19 ["]
Distance between spindles: 910 [mm]
Maximum diameter Turning time: 175 [mm]
Maximum length Machinable: 678 [mm]
Z1 axis stroke: 1040 [mm]
X1 axle stroke: 330 [mm]
Y1 axis travel: +/- 40 [mm]
Z2 axis stroke: 678 [mm]
X2 axle stroke: 127.5 [mm]
Y2 axis travel: +/- 32.5 [mm]
B-axis angular travel: 182 [°]
X-axis fast feed speed: 20000 [mm/min]
Z-axis fast feed speed: 40000 [mm/min]
Y-axis fast feed speed: 6000 [mm/min]
Spindle Nose: A2-6"
Maximum diameter in bar: 65 [mm]
Maximum speed Spindle: 4500 [RPM]
Hobn Ua H Rowu T Answep
C-axis indexing accuracy: 0.001 [°]
Spindle power: 11 [kW]
Counter Spindle Nose: A2-5"
Maximum diameter Counter-spindle bar 42 [mm]
Maximum speed Spindle: 5000 [RPM]
C-axis sub-spindle indexing accuracy: 0.001 [°]
Spindle power: 7.5 [kW]

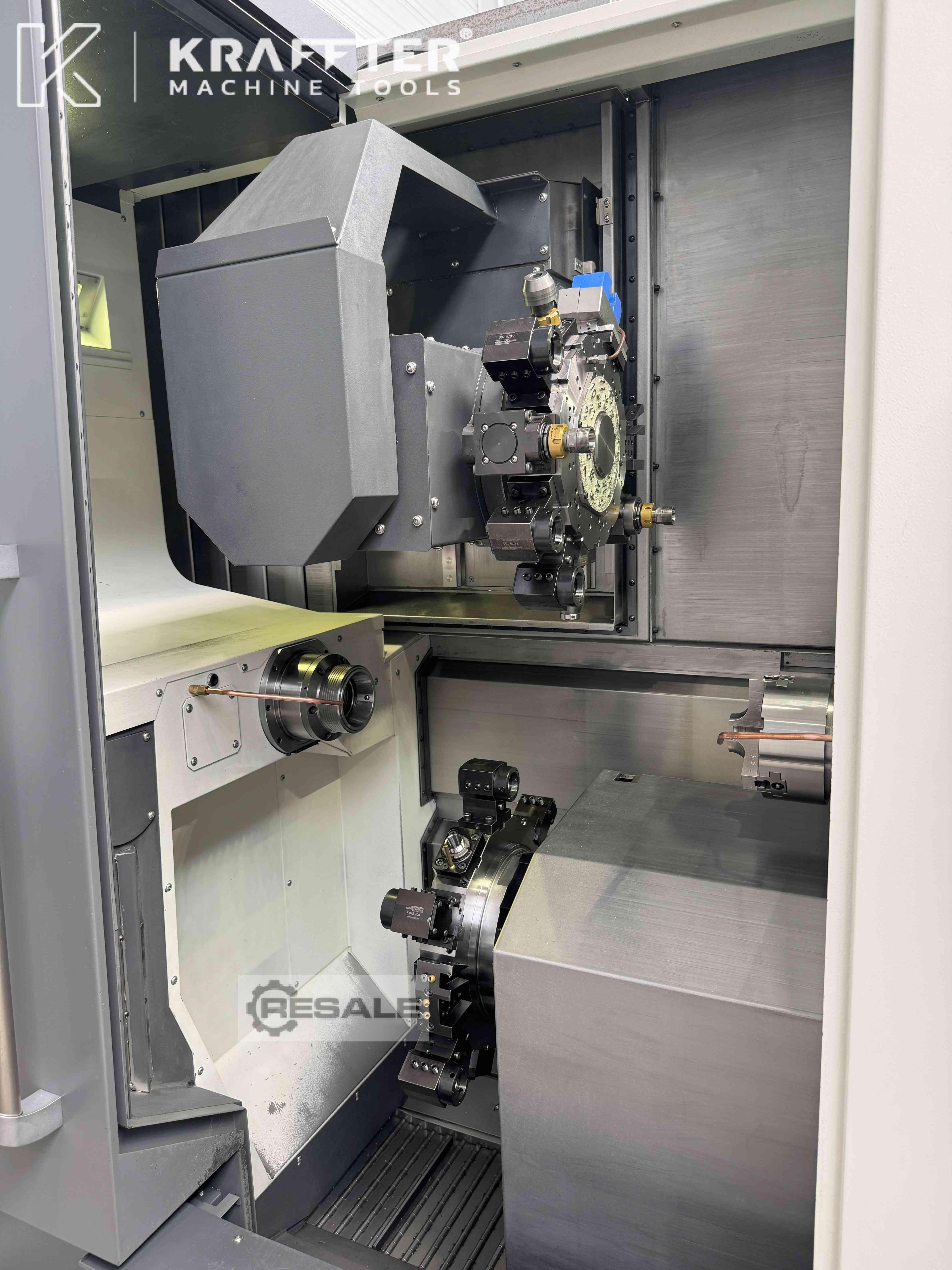

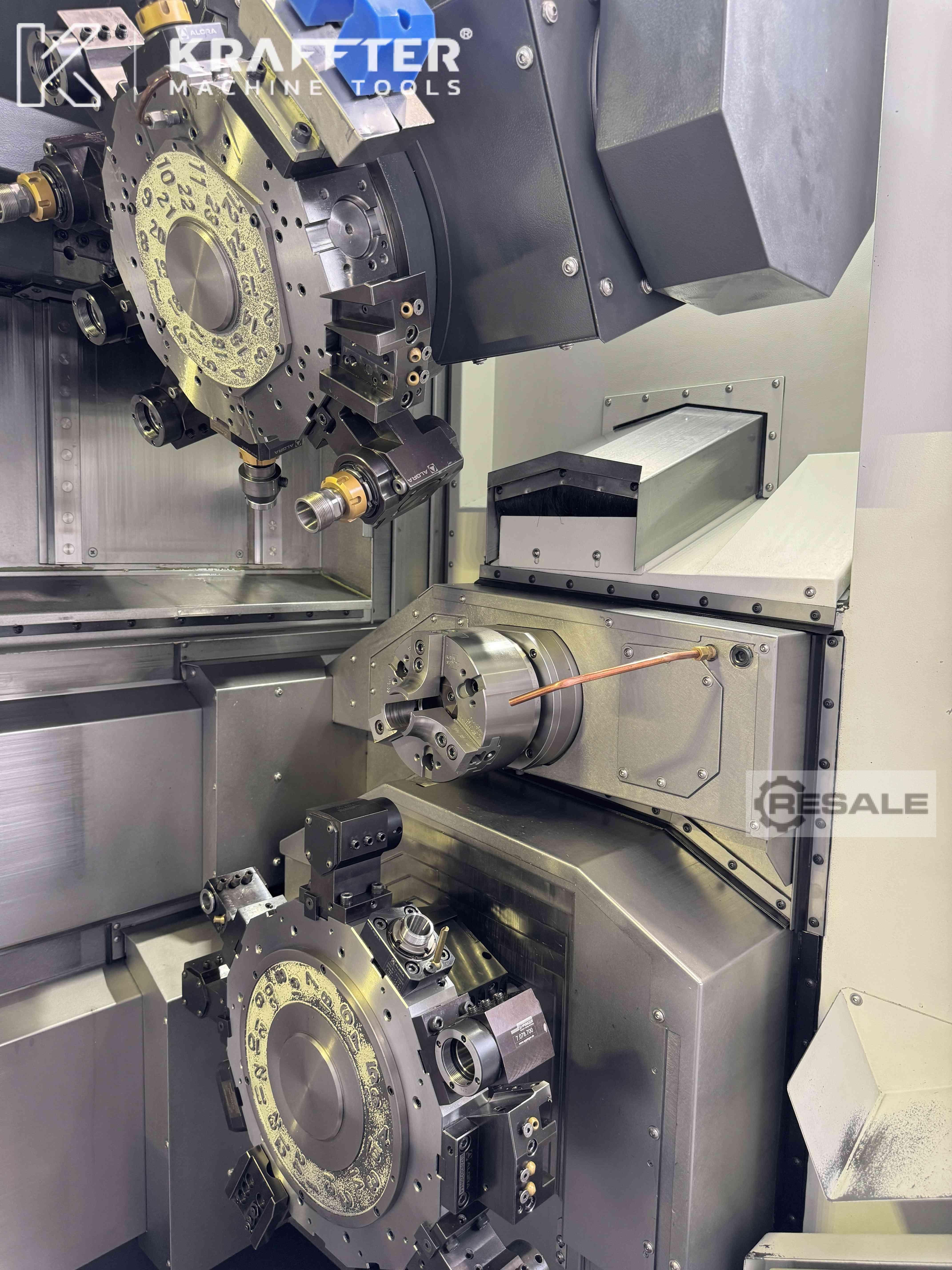

Number of Positions - Turret 1: 24
Number of motorized stations - Turret 1 : 12
Maximum speed Rotating Tools - Turret 1: 6000 [RPM]
Number of posts - Turret 2: 24
Number of motorized stations - Turret 2: 12
Maximum speed Rotating Tools - Turret 2: 6000 [RPM]
Rotating tool power: 7.1 [kW]
Installed power: 77 [kVA]
Supply voltage: 400 [V]
Machine dimensions: 3799 x 2100 x 2565 [mm]
Weight: 10000 [Kg]
EQUIPMENT INCLUDED:
x1 software "Luck-Bei II / NT Manual Guide i"
x1 "NT Work Navigator"
x1 "NT-Nurse"
x1 control opening and closing chucks by pedals
x1 Coin Scavenger on Top Turret + Mat
x2 HP pumps
x1 Washer through the sub-spindle
x1 Blowing jaws fixed type straight spindle

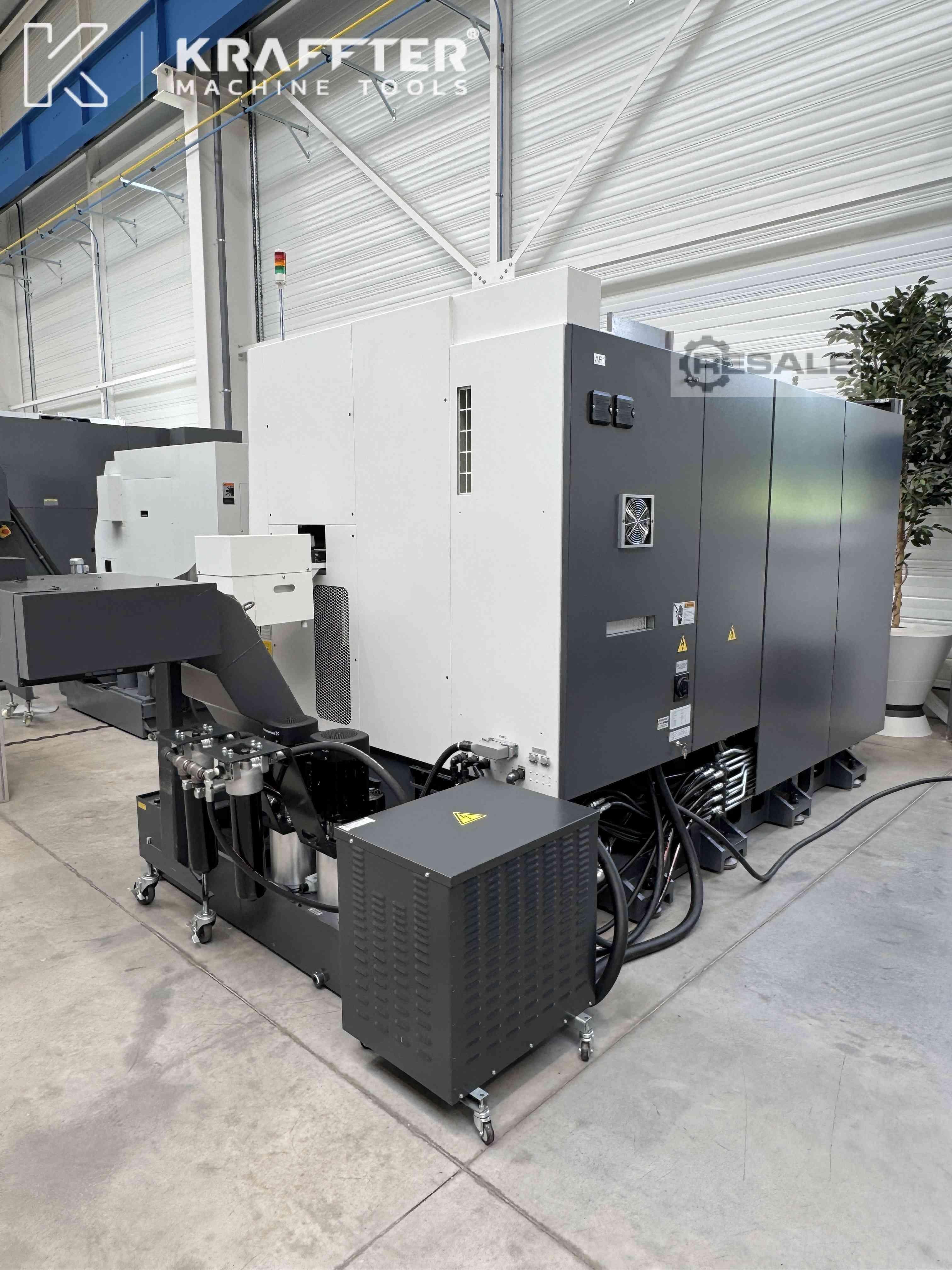

x1 IMECA bar feeder type MASTER 80HF/43MP
x1 Chip Conveyor

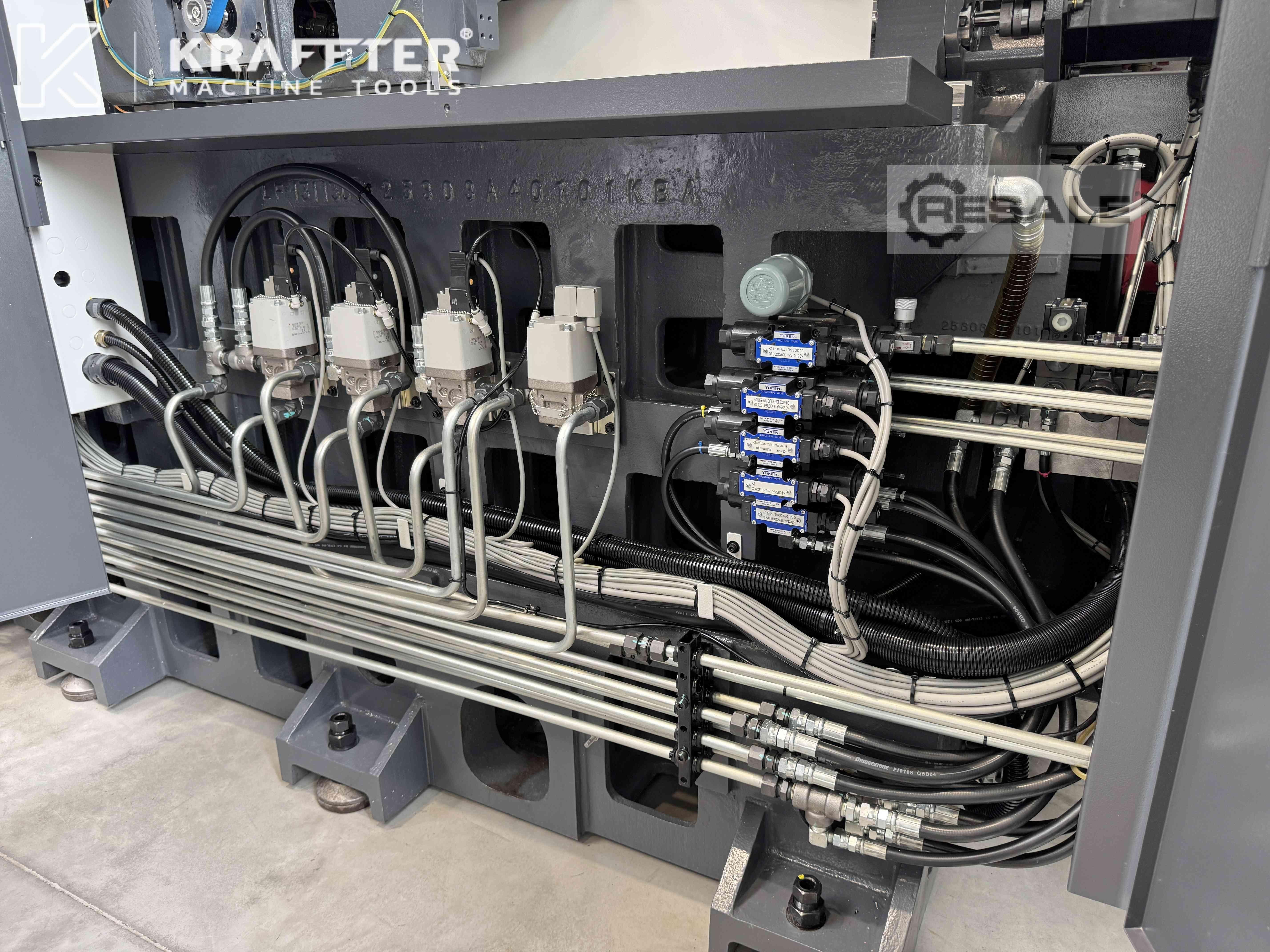

x1 Automatic Lubrication System
x1 collet chuck SMW-AUTOBLOK type KSZ-NZN-065-A06 (spindle)
x1 mandrel Ø175 [mm] SMW-AUTOBLOK 175 BB (sub-spindle)
x11 ALGRA Radial Motorized Tool Carriers
x3 ALGRA axial motorized tool holders
x10 EPPINGER axial static tool holders for adapters type PRECI-FLEX 32
(7.078.70)
x1 EPPINGER axial static tool holder for Ø200 bar [mm] (7.072.622)
x5 ALGRA static tool holders
x56 EPPINGER adapters type PRECI-FLEX 32
x10 EPPINGER adapters type PRECI-FLEX 20
x20 ER32 Collet (in box)
x15 ER25 Collet (in box)
x12 ER20 Collet (in box)
x4 IEMCA Service/Operator Manual
x1 IEMCA Service / Operator Manual in CD-ROM format
x9 NAKAMURA NTJ100 Service / Operator Manual
x40 Soft Bit Sets
Machine visible under tension for testing at our premises, by
appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as
internationally.
More photos and details on request.
Technical description for information purposes only, without
obligation on our part.
