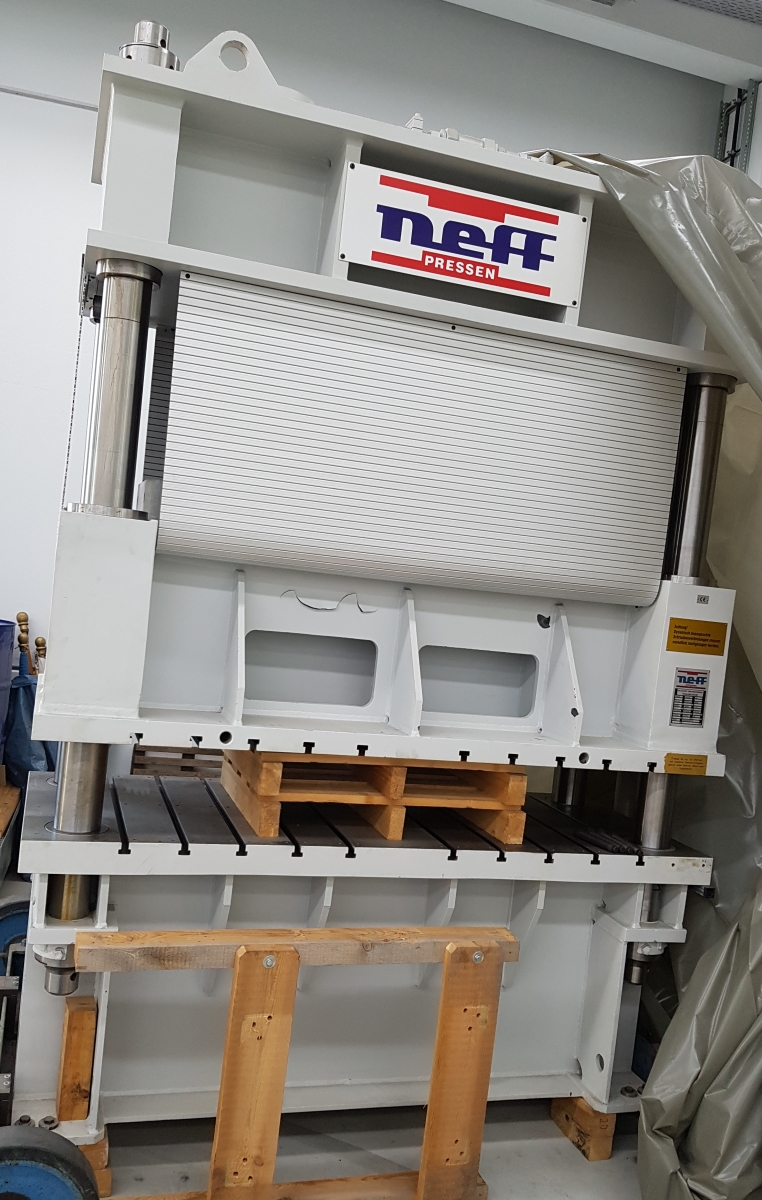

Hydraulische Presse NEFF 4SP 160

Manufacturer: NEFF

Model: 4SP 160

Year of Manufacture: 2011

Operating Hours: 25 aprox

Type of Machine: Hydraulic Press

Weight: 7000 kg

Condition: Used

Control System: Siemens S7 (PLC)

Technical Specifications

- Press Force: 1600 kN (adjustable from 160–1600 kN)
- Return Force: Approx. 160 kN
- Stroke (Hub): 500 mm
- Table Size (W x D): 2000 x 800 mm
- Ram Size (W x D): 2000 x 800 mm
- Clear Height (Ram Up): 700 mm
- Max. Daylight (Open Height): 2850 mm
- Table Height Above Floor: 800 mm
- Clearance Between Columns (W x D): 1600 x 410 mm
- Installation Space (W x D x H): 2000 x 800 x 700 mm

Electrical System

- Operating Voltage: 400V AC
- Control Voltage: 24V DC
- Valve Voltage: 24V DC
- Frequency: 50 Hz
- Voltage Fluctuation Tolerance: ±5%
- Max. Ambient Temp: 35°C
