NeoDen4, the brand new and long-awaited model of NeoDen, is a desktop
Pick and Place machine with vision system.NeoDen4 is with dual
cameras, auto rails, auto electronic feeders and 4 placement heads,
which could help to handle 0201, BGA, QFN and 0.8m/1.2m/1.5m LED
strip.NeoDen4 is the best choice to satisfy all demands of high
precision, high capacity,stable performance and low cost.
Manufacturer: NeoDen
Model: 4
Year of Manufacture: 2026
Type of Machine : Pick and Place Machine
Technical Specifications
- Number of heads: 4 (with vision enabled)
- Placement rate: 4,000 CPH
- Feeder capacity - tape reel feeders: 48
- Feeder capacity - vibrating feeders: 5
- IC tray capacity: 5
- Component range - smallest: 0201
- Component range - largest: TQFP240
- Maximum component height: 5 mm
- Resolution X/Y axis: 0.01 mm
- Resolution Z axis: 0.1 mm
- Rotation: +/- 180 degrees (360 degrees)
- Positioning accuracy: +/- 0.02 mm
- X-Y repeatability: +/- 0.02 mm
- Applicable PCB area with internal conveyor: 290x1500 mm
- Applicable PCB area without internal conveyor: 350x400 mm
- Placement area without waffle tray: 290x1500 mm
- Placement area with 1 waffle tray: 140x1500 mm
- Programming: software automatic and manual mechanical
- Power supply: 110V/220V
- Power: 180 W
- Machine dimensions: 870x680x480 mm (L x W x H)
- Net weight: 60 kg
- Gross weight: 80 kg
Key Features and Highlights
- Dual vision system with up-looking and down-looking high-speed
industrial CCD cameras,
identifying and calibrating all four components simultaneously for
superior placement accuracy
from 0201 to BGA
- NeoDen independently developed on-line dual rails supporting direct
connection to
conventional conveyors for continuous automatic board feeding,
adjustable feeding position, and
overlong board handling via Mark point relocated technology
- Electronic feeders with feeding error correction technique for
smooth component picking and
reduced deviation

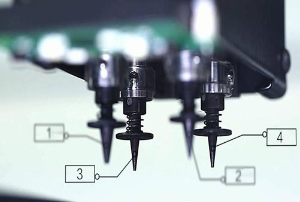

- Four high precision nozzles calibrated by vision software, picking
and placing four components
simultaneously with 360 degree rotation
- General conveyor support for fully automatic production without
manual labor
- Industrial PC motherboard with 32G solid state drive for faster
read/write speed, greater
stability, and power-off protection
- Newly designed mounting head with suspended, fully symmetric, high
coupling design for
greater precision and gentler component handling
- Remote system upgrade support with lifelong technical service from
NeoDen
- Lightweight and compact body, no extra pump or supporting facility
required
- User friendly interface, no professional SMT engineer required to
operate
