Manufacturer:NeoDen
Model: K1830
Year of Manufacture: 2026
Type of Machine : Pick and Place Machine
Technical Specifications
- Number of heads: 8 (fully closed-loop control system)
- Mounting speed: 16,000 CPH maximum
- Number of tape reel feeders: 66 (electric and pneumatic)
- Number of IC trays: 10
- Placement area: 540x300 mm (1500 mm optional)
- Maximum mounting height: 18 mm
- Mark camera recognition system: 2 groups, left and right, US ON
sensors
- Flying camera recognition system: 2 groups, front and rear, US ON
sensors
- Operation system: patented SMT Mounting Operation System V1.3
- XY motion feedback control: SPM/IBG magnetic linear encoder
- XY drive motor: Panasonic A6 750W servo motor
- Repeat position accuracy: 0.01 mm
- Compressed air: more than 0.6 MPa, maximum flow rate 37 L/min
- Voltage: AC 110V/220V, 50Hz/60Hz
- Machine dimensions: 1290x1060x1300 mm (L x W x H)
- Net weight: 360 kg
Key Features and Highlights
- 8 independent heads with fully closed-loop control system supporting
simultaneous pick-up
from all 8mm feeders at up to 13,000 CPH real speed
- Double mark camera plus double side high precision flying camera
system for high speed and
accuracy with real-time calculation
- 4th generation high speed flying camera recognition with US ON
sensors and 28mm industrial
lens for flying shots and high accuracy recognition
- Magnetic linear encoder system real-time monitoring of machine
accuracy with automatic error
parameter correction
- Marble body construction weighing 360 kg for rock-solid stability
without vibration during
high-speed operation
- Precision placement of 0201, QFN, and QFP fine-pitch IC components
with high accuracy

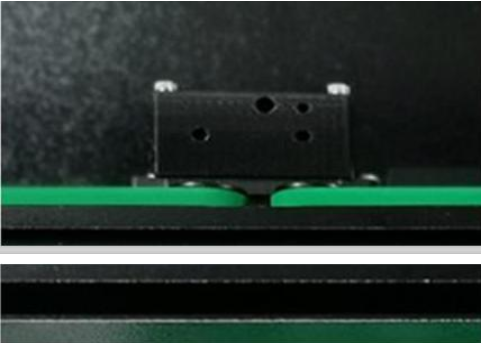

- Patented sensor technology supporting both standard and black PCB
mounting with high
accuracy
- Premium branded components: Panasonic A6 servo motor and Miki high
performance coupling
from Japan; Sungil base, WON linear guide, and Airtac valve from
Korea

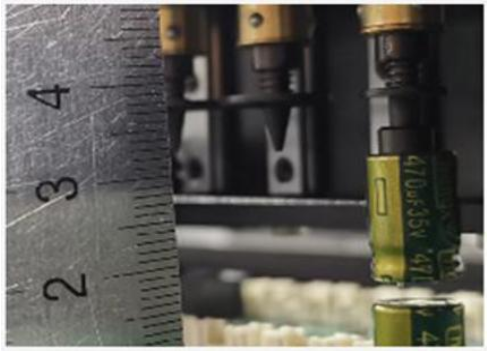

- Maximum mounting height of 18 mm with precision design and stable
performance

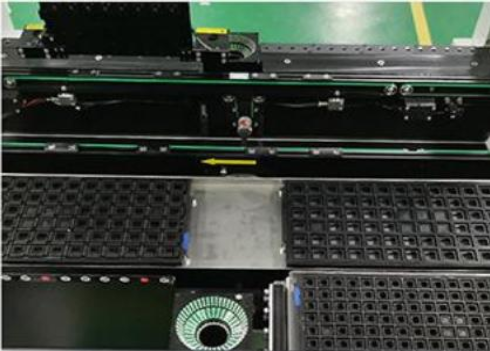

- Support for up to 4 pallet trays of chips (optional
configuration)

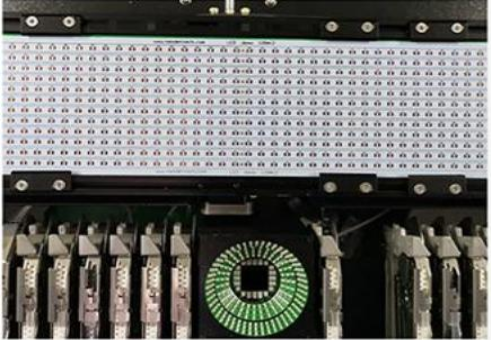

- Support for 1.5M LED light bar placement (optional configuration)
- Intelligent programming interface with 1-click coordinate import
identifying top and bottom
layers automatically
- Automatic component footprint library recognition with factory
standard library included
- Lifetime free software upgrades (FOC)
