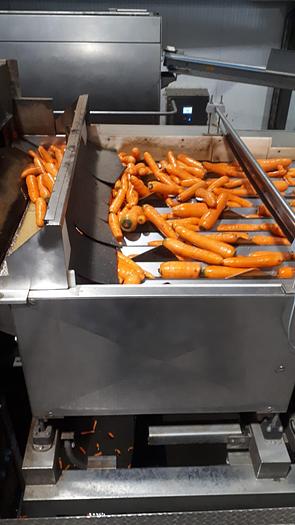

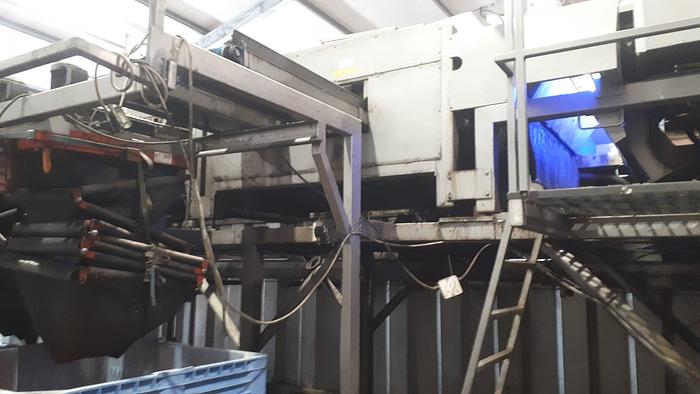

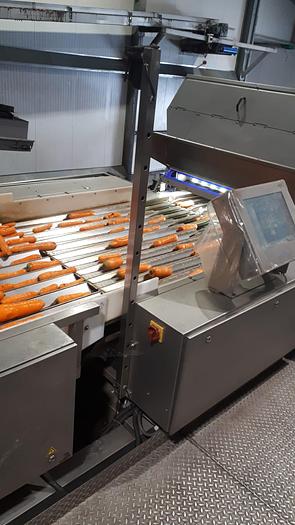

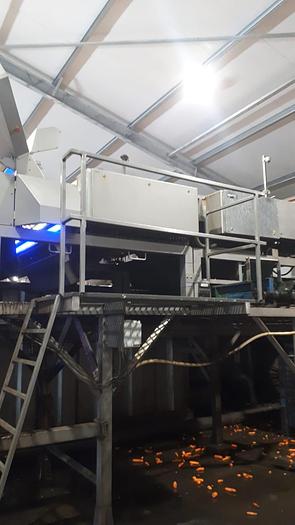

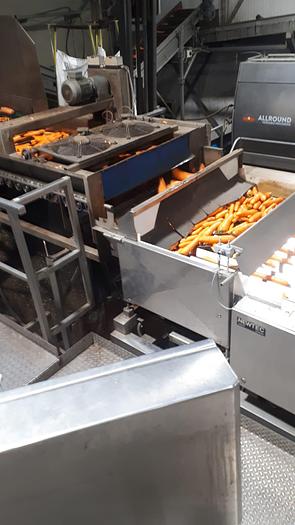

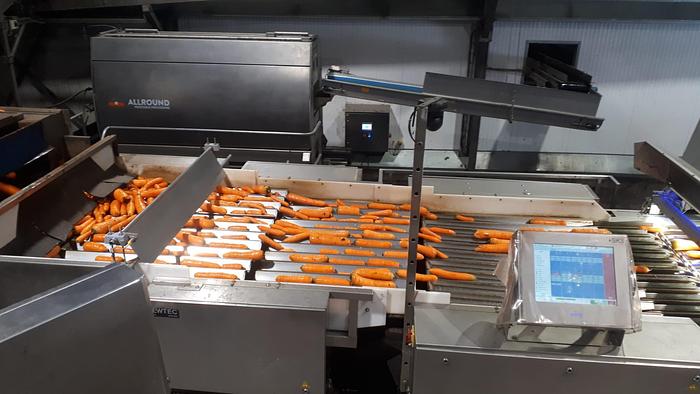

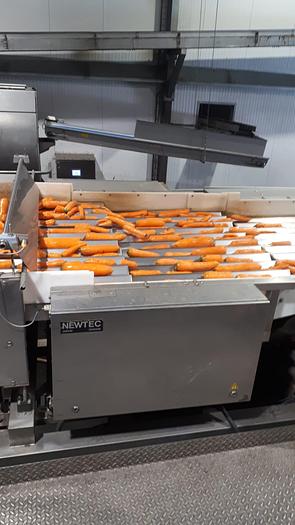

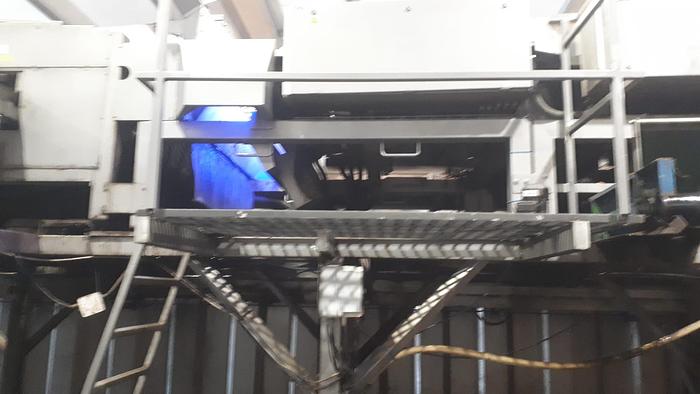

Newtec CELOX optical sorting line, Machine has been upgraded to the
newer type CELOX in 2016, The order is based on the following
specifications, Ambient temperature ± 5 – 25 ºC., Product Clean,
washed carrots, Capacity: 8 to 10 tons per hour, depending on the
batch, (quality and sorting), Product foreign materials The Celox
cannot detect foreign materials such as glass,, wood, stones etc.,
Functionality:, Length: +/- 3mm (less than 1% errors), Diameter: +/-
1mm (less than 1% errors), broken: 60-65% is removed (on normal broken
carrots) there will be 5-6% good, carrots among the errors, C/S shape:
85-90% is removed. There will be 3-4% good carrots among the errors,
Volume: +/- 5%, -Incl. conversion of complete camera unit to new
version, -9 Cameras with 8 megapixel resolution (current 2 magapixel),
Cameras look at the carrots from above and below at an angle, -Better
detection of root rot, -Better software for deformed products, -Better
software for quality and dimensions, -Incl. set of vibrating channels
for the new belts
Niederlande
