Technical Specifications & Performance Data The Used Capsuling Machine
Nortan Prisma 1996 is a robust, second hand solution for capsule
application in beverage production, ideal for wineries and spirits
producers within a used bottling line. The Prisma 4+4 configuration
provides dual technology for both heat-shrink capsules and roll-on
capsules, ensuring consistent presentation across a range of
cylindrical bottle formats. Manufacturer / Model: Nortan Prisma 4+4
Year: 1996 Application: Capsuling for decorative and protective
finishes over corked or screw-cap bottles No. of heads: 8 total (4
heat-shrinking + 4 rolling) Production speed: up to 3000 bph on shrink
capsules; up to 2000 bph on roll-on capsules (format-dependent)
Rotation direction: clockwise, infeed from the left Container types:
glass, PET, and compatible aluminum bottles (cylindrical formats)
Typical products: wine and spirits; can complement premium water,
juice, and beer presentations in industrial packaging Dimensions (W ×
L × H): 1800 × 2500 × 2400 mm Weight: 1250 kg Electrical: 380 V, 50
Hz, 7 kW Features: safety features included; manuals available
Condition: IN STORAGE Advanced Automation & Control Systems Engineered

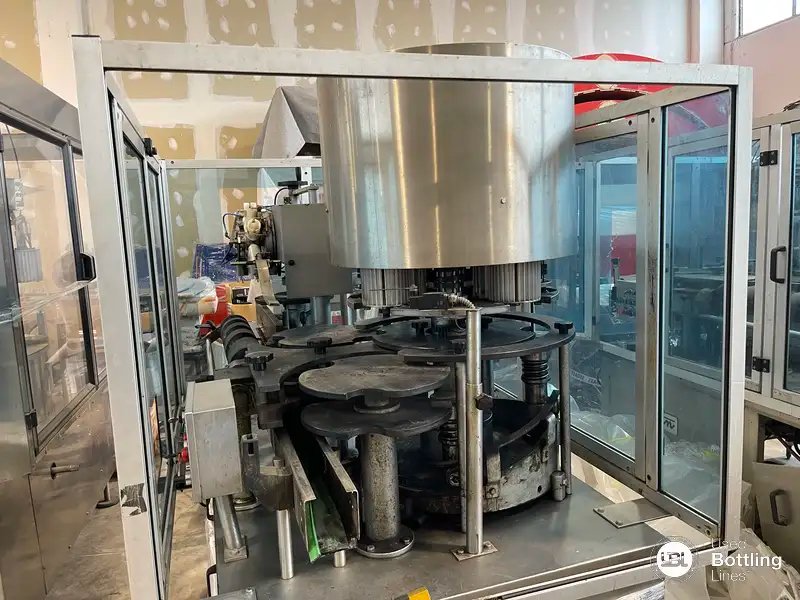

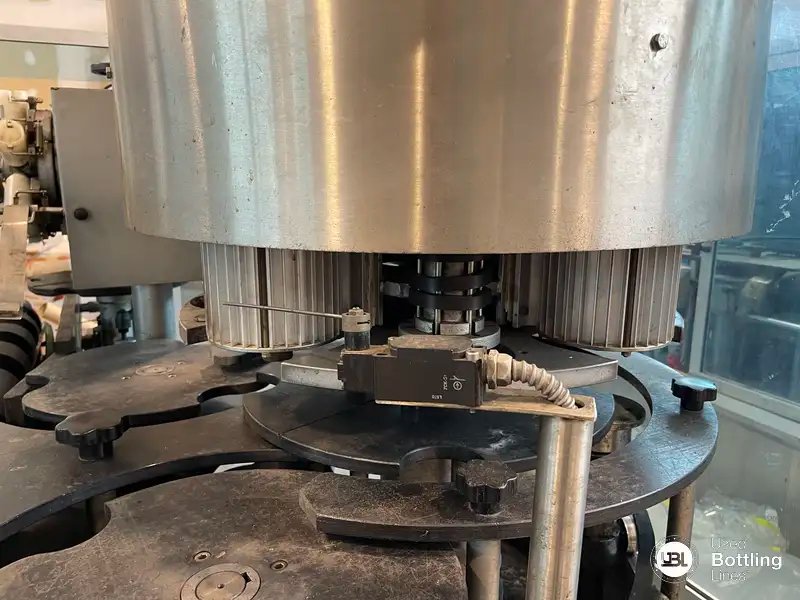

for reliable operation, the Nortan Prisma 4+4 combines a rotating
capsule pick-up system with dedicated stations for heat-shrinking and
rolling. The control panel provides straightforward operation and
adjustment of key parameters, including capsule application timing and
heat settings for consistent shrink performance. Integrated controls
for synchronization with upstream and downstream equipment Adjustable
heat-shrinking temperature and dwell parameters Precise rolling head
pressure for polylaminate/tin-style roll-on capsules Electrical
supply: 380 V, 50 Hz, 7 kW Full perimeter guarding with interlocks and
emergency stop circuits Production Line Integration Capabilities This
capsuler integrates seamlessly within a used bottling line, positioned
after corking or capping and before labeling. It is compatible with
standard conveyor systems common in beverage production and industrial
packaging environments. Interfaces easily with rinsing, filling,

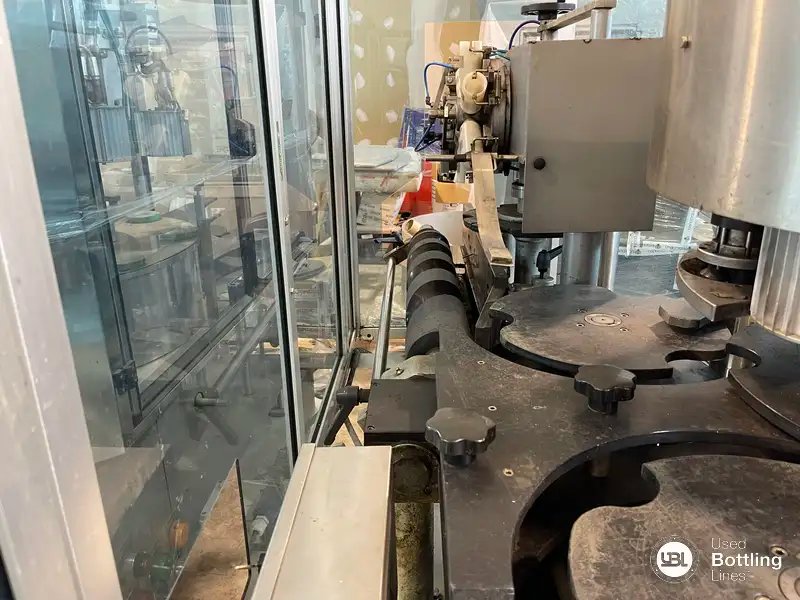

corking/capping, and labeling equipment Clockwise carousel with
left-hand infeed simplifies line layout planning Supports quick format
changes with appropriate change parts Suitable for glass and PET
bottle formats used for wine, spirits, premium water, juice, and beer
Machine Condition & Maintenance History The unit is currently IN
STORAGE and presents as a solid second hand option for producers
seeking proven Nortan reliability. Manuals are available to support
installation, setup, and routine maintenance. A thorough inspection
and commissioning by qualified technicians is recommended prior to
reintroduction into production to ensure optimal performance and
compliance with site-specific standards. Operational Performance &
Versatility With its dual 4+4 head arrangement, the machine can handle
shrink capsules and roll-on capsules on the same platform, offering
operational flexibility for brand presentation across multiple SKUs.
The design is well-suited to cylindrical bottles and excels in wine
and spirits applications, while also enhancing premium lines in water,
juice, and beer where decorative capsules are desired. Consistent
capsule placement and finish at speeds up to 3000 bph (shrink) Stable
handling for glass, PET, and compatible aluminum containers Rotating
pick-and-place system ensures accurate capsule positioning
Installation Requirements & Site Preparation Plan installation with
adequate space for operation, maintenance, and safe access. The
machine footprint is 1800 × 2500 mm with a height of 2400 mm; allow
additional clearance for guards opening, format change, and
ventilation around the heat-shrink stations. Electrical: 380 V, 50 Hz,
7 kW dedicated supply Level, clean floor suitable for industrial
equipment Ventilation recommended near heat-shrinking areas to manage
warm air Integration with existing conveyor heights and line controls
as required Safety Standards & Compliance Certification Designed for
industrial packaging environments, the Nortan Prisma 4+4 includes
guarding and safety devices to protect operators during beverage
production. Interlocked doors, emergency stops, and protective covers
support safe operation when used as intended. Safety guards and
interlocks on access points Emergency stop buttons at strategic
locations Manuals included to support safe setup, operation, and
maintenance Hygienic, easy-to-clean machine surfaces suitable for
beverage applications This used capsuling machine offers a dependable,
cost-effective addition to a used bottling line, combining Nortan’s
mechanical robustness with the flexibility required for diverse
product portfolios in modern beverage production.
