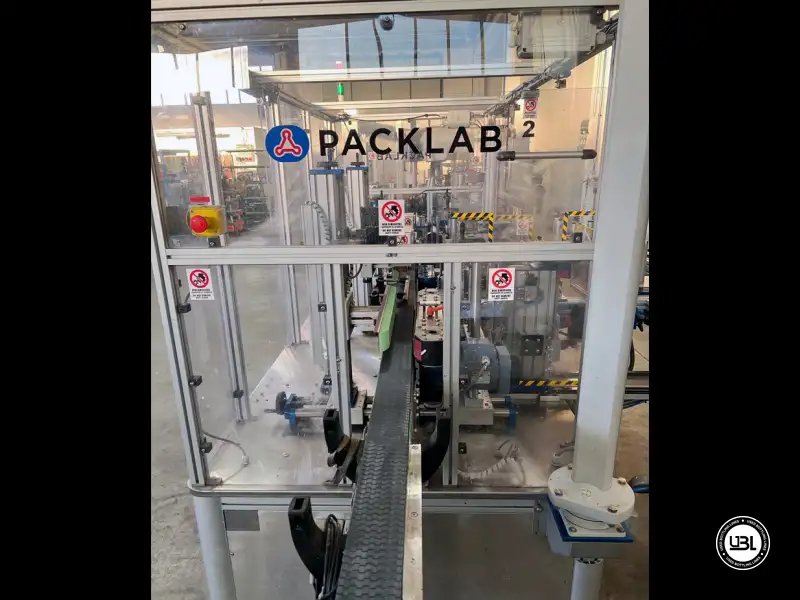

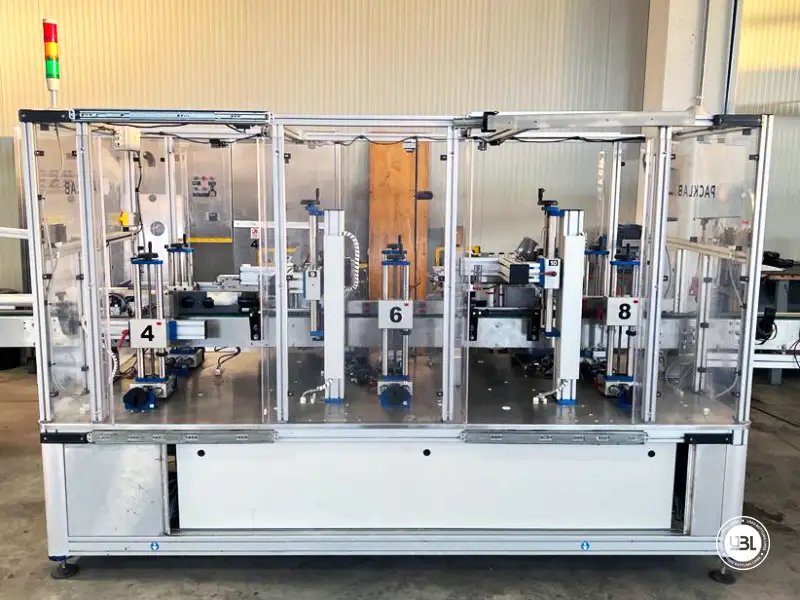

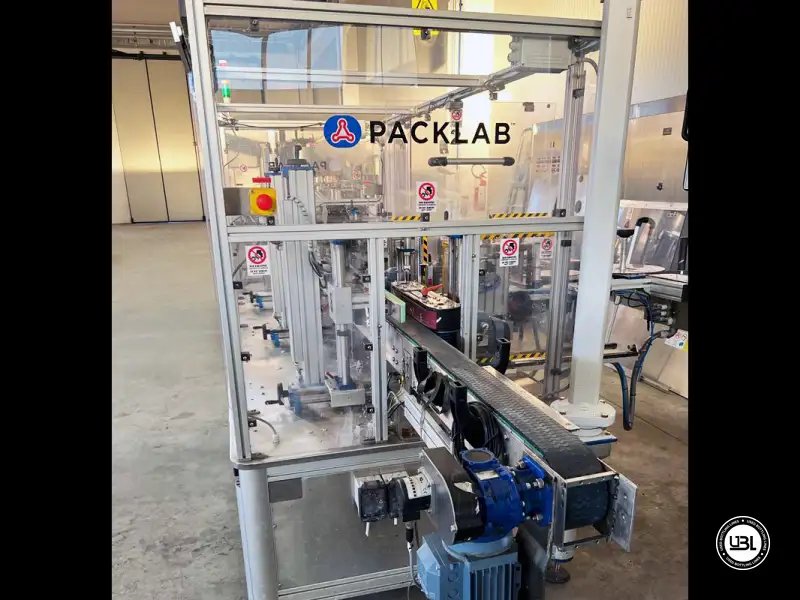

Technical Specifications & Performance Data The Used Linear Labeler
Non Stop PackLab 2019 WING CWW 20 is a high-efficiency, second hand
self-adhesive labeling solution designed for continuous operation in
beverage production and industrial packaging environments. Optimized
for wrap-around and front/back applications, it integrates seamlessly
into a used bottling line alongside rinsing, filling, and capping
equipment. Manufacturer: PackLab Model: WING CWW 20 Year of
manufacture: 2019 Machine type: Linear self-adhesive labeler with
non-stop dual stations Production speed: up to 20,000 bottles/hour
(format and label dependent) Label applications: Wrap-around body
labels on cylindrical containers; partial front and back labels on
shaped containers Number of labeling stations: 2 (automatic
interchange at end of reel, web break, or label absence) Container
types handled: Glass bottles, metal cans (aluminum/steel), brik
cartons, bag-in-box Product compatibility: Water (still), beer,
sparkling wine, alcohol/spirits, dairy, flat drinks, edible oil
Control system: Schneider PLC with 5-inch touchscreen HMI; up to 500
stored recipes Motion & handling: Motorized wrapping belts with
encoder synchronization; motorized upper belts with stabilizers
Sensors: Inlet and outlet overflow sensors for automatic flow
regulation Electrical: 400 V, 50 Hz, 5 kW Weight: approx. 1100 kg
Safety: Full CE-compliant guarding and safety features; manuals

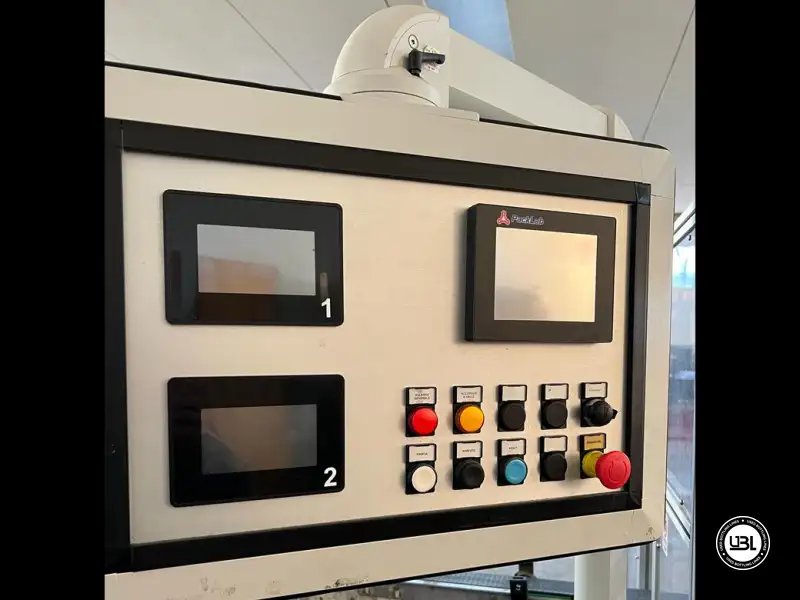

available Advanced Automation & Control Systems The WING CWW 20
leverages robust automation to maintain consistent labeling accuracy
at high speeds. A Schneider PLC with an intuitive 5-inch touchscreen
provides centralized control, recipe management, and diagnostics to
support quick format changes and reliable day-to-day operation.

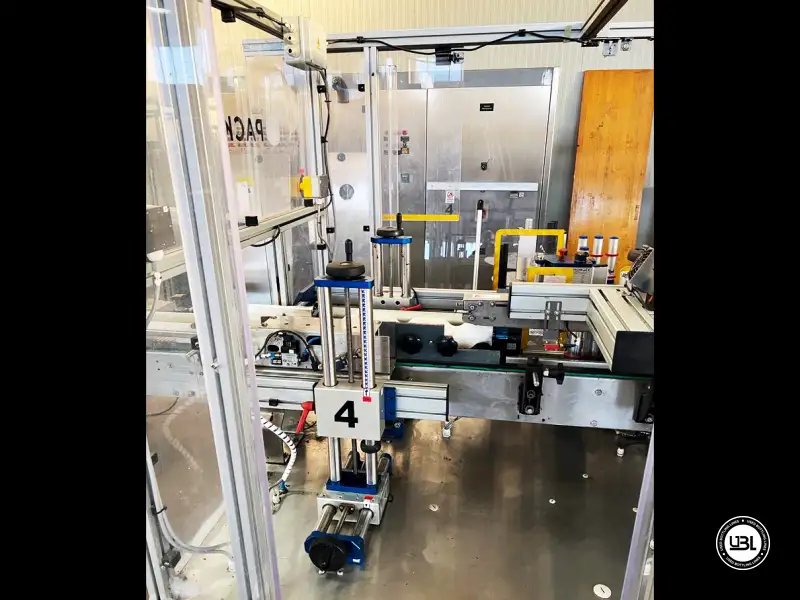

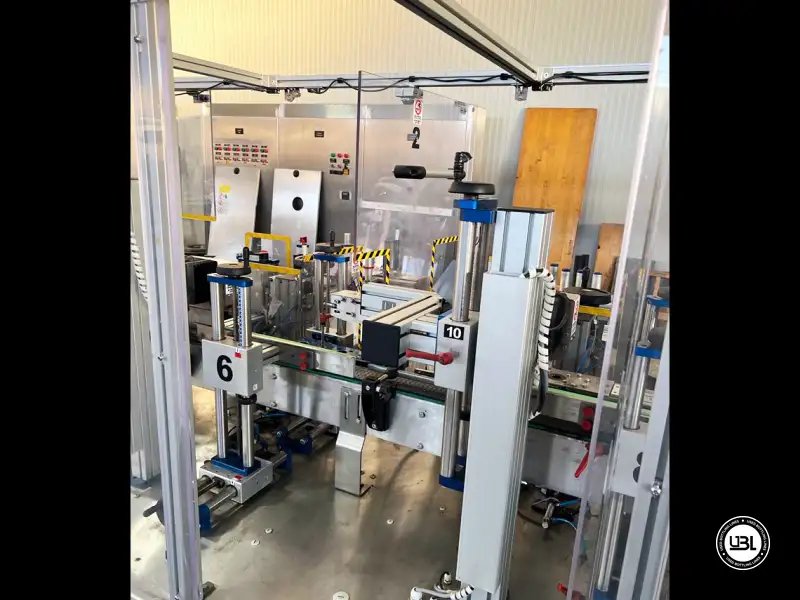

Non-Stop Labeling Architecture Two self-adhesive labeling stations
operate in non-stop mode. Automatic roll changeover ensures
uninterrupted labeling during end-of-reel events, backing paper
breakage, or missing-label detection, minimizing downtime and

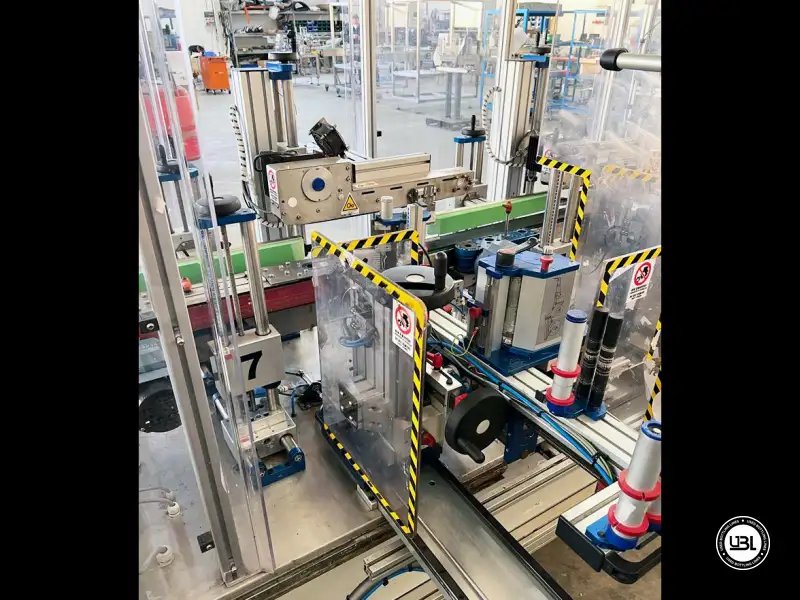

protecting OEE. Synchronized Motion & Stability Encoder-linked
wrapping belts synchronize with line speed for precise label
placement. Motorized upper belts with stabilizers keep containers
straight and secure, enhancing alignment on both cylindrical and
shaped formats. Process Monitoring & Recipes Infeed/outfeed overflow
sensors regulate product flow to match upstream filling and downstream
packing. Up to 500 format recipes can be stored, reducing setup time
and ensuring repeatable results across product variants. Production
Line Integration Capabilities Engineered for seamless integration into
a used bottling line, this labeler communicates effectively with
upstream rinsing and filling machines and downstream capping,
inspection, and case packing systems. It supports standard I/O
handshakes and speed-following logic for smooth line balance.
Compatible with glass bottle and metal can lines; suitable for brik
and bag-in-box labeling stations within multiproduct facilities
Flexible enough to operate alongside PET, glass, and aluminum
container handling on mixed beverage production lines Rapid format
changeovers supported by stored recipes, aiding SKU proliferation in
modern industrial packaging operations Machine Condition & Maintenance
History Condition: READY FOR OPERATION. Built in 2019 and lightly
used, this second hand PackLab labeler presents in excellent operating
condition. It is delivered with full CE safety protections and
comprehensive user manuals to support commissioning, operation, and
maintenance. The non-stop configuration and robust mechanical design
contribute to low wear and stable long-term performance. Operational
Performance & Versatility Designed for a wide range of beverage and
liquid food applications, the WING CWW 20 supports wrap-around for
cylindrical formats and partial front/back for shaped containers. Its
versatility makes it a strong choice for water, juice and flat drinks,
beer, sparkling wine and other alcohol, dairy beverages, and edible
oils. Accurate self-adhesive labeling at high speed for premium
presentation Handles glass bottles, metal cans, brik cartons, and
bag-in-box outer surfaces Ideal as a labeling module in mixed
filling/capping lines across beverage production and broader
industrial packaging Non-stop dual stations minimize changeover
downtime and keep throughput stable Installation Requirements & Site
Preparation This compact linear unit is straightforward to integrate
into existing conveyors between filling and capping or before final
inspection/packing. Ensure adequate clearance for roll changes, access
to guards, and routine maintenance. Power supply: 400 V, 50 Hz, 5 kW
Line integration: Level and aligned infeed/outfeed conveyors for
smooth product transfer Environment: Clean, dry area typical for
beverage production; non-slip floor and service access on operator
side Utilities: Compressed air may be required depending on site
options and peripherals Safety Standar
