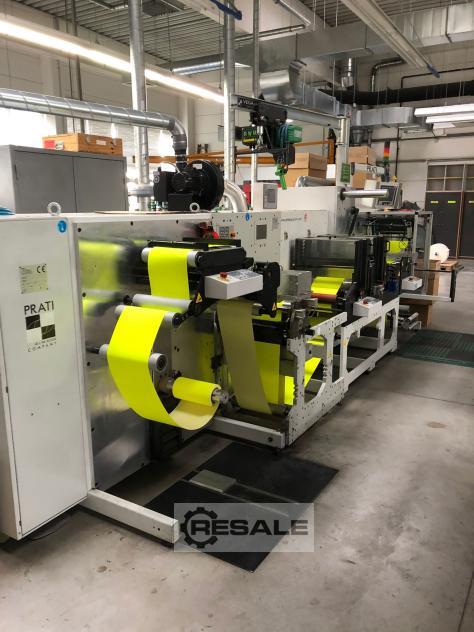

Prati Vega Plus LF330 CNT Slitter / cutter / rewinder with inspection
and label checking
Age: 2011
Unwinder
Rewinder
Slitting Unit
1 x Flexoprinting Unit - Varnish
UV Dryer
2 x Rotary Die-Cutting Unit
Sheeter
Perforation Unit
Cores: 25 mm, 40 mm, 45 mm, 50mm, 76 mm - wall thickness 3mm
Material width paper and film: min.: 150 mm / max.: 340 Print
width: max. 310
Printing capacity: Punching only max. 200 m / min., printing max.
70 m / min.
max. roll Ø - down: 1000 mm / max. roll Ø - up: 400 mm Punching
width: max. 320
Slitter / cutter / rewinder with inspection and label checking.
Unwind with tension control and single edge guiding.
Pneumatic bars on the splice tables for changing rolls.
Color touch screen operation for all functions, programs and jobs.
For automatic non-stop rewinding (3-spindle turret) and cutting
rolls in register to smaller size rolls.
Waste suction removal.
During the process the labels can be counted (numbers and meters)
and checked for quality and missing labels with a missing label
system.
Speed: 0 – 200 m/min
Electrics 400 V, 3 Ph, 28 kW, 50 Hz.
Dimensions 1x 20ft container: 590x230x220 cm – 3.000 kgs
