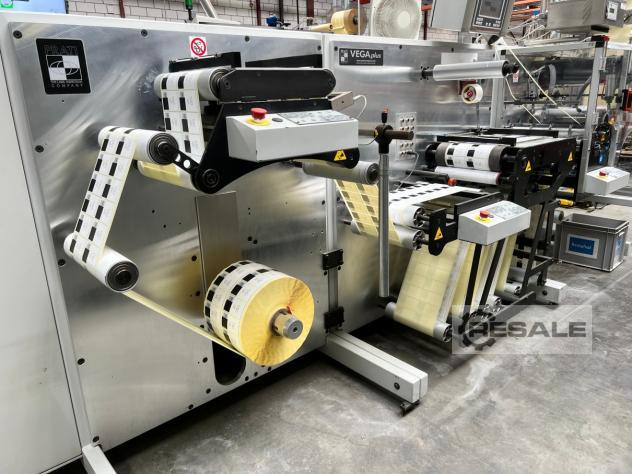

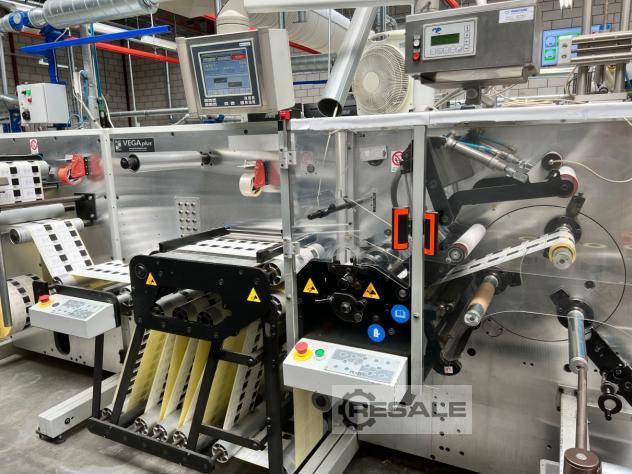

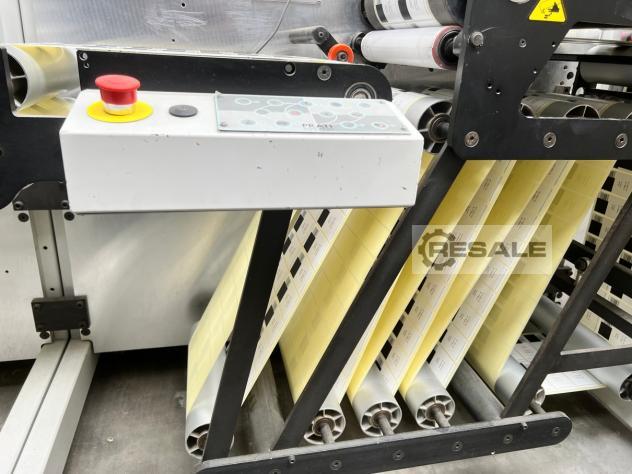

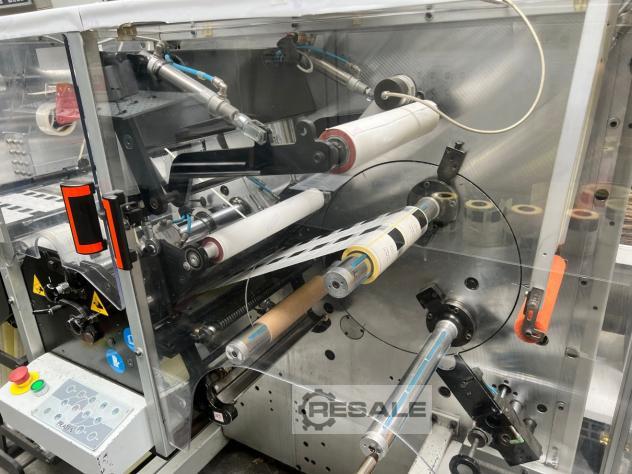

PRATI – VEGA PLUS LF330 CNT
Brand / model Prati / Vega Plus LF330 CNT (2008)
Type converting machinery
Year / SN 2008 / LF 020
HS Code 8441 1010
Description:
Slitter
Cutter
Rewinder with inspection and label checking.
Unwind with tension control and single edge guiding.
Pneumatic bars on the splice tables for changing rolls.
Color touch screen operation for all functions, programs and jobs.
For automatic non-stop rewinding (3-spindle turret) and
cutting rolls (including 12 roll knives and a bar with 14 fixed
knives)
in register to smaller size rolls.
Waste suction removal.
During the process the labels can be counted (numbers and meters)
and checked for quality and missing labels with a missing label
system.
Size Min. / max. web width: up 150 – 330 mms
Min. / max. paper weight: 90 – 160 gsm
Roll diameter max. unwind: 1000 mms
Roll diameter max. rewind: 400 mms (280 mm when in use with the 3
shafts turret)
Shaft diameter unwind: 76 mms
Shafts diameter rewind: 12 with different sizes
(3×25 mm, 3×40 mm, 3×45 mm, 3×76 mm)
Speed: 0 – 200 m/min
Electrics 400 V, 3 Ph, 28 kW, 50 Hz.
