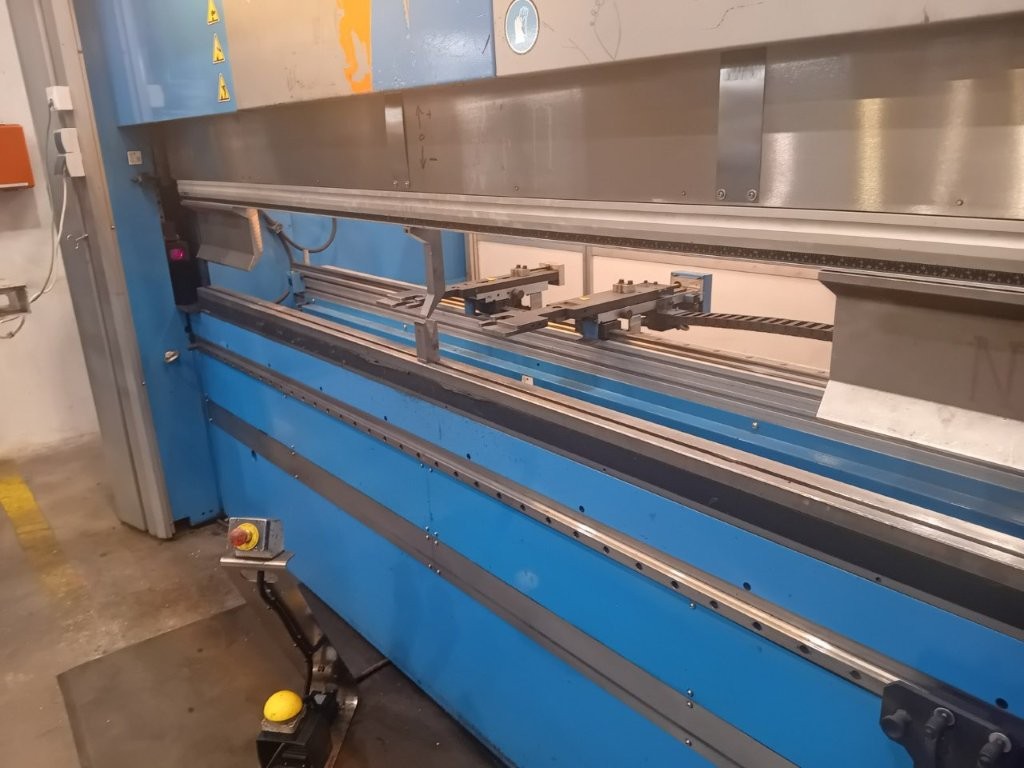

Abkantpresse PRIMA POWER EP1030

Manufacturer: Prima Power

Model: EP1030

Year of Manufacture: 2012

Technical Data:

- Power Supply Range: 340–440 V
- Frequency: 50/60 Hz
- Max. Power Consumption: 10 kW
- Operating Temperature (standard): +5°C to +30°C
- Operating Temperature (with Fan - optional): +5°C to +35°C
- Operating Temperature (with Air Conditioner - optional): +5°C to +42°C
- Relative Humidity: 20% to 75% (temporarily up to 90%)
- Sound Pressure Level at Workplace: 72 dB(A)
- Max. Pressing Force: 105 kN
- Max. Beam Opening: 600 / 650 / 700 mm
- Stroke of Press Beam: 310 mm
- Approach Speed (Y-axis return): 110 mm/s
- Approach Speed (Y-axis approach): 110 mm/s
- Working Speed (Y-axis): 10 mm/s
- Stroke (X-axis): 550 / 1000 mm
- Stroke (R-axis): 200 mm
- Positioning Speed (X1-axis): 800 mm/s
- Positioning Speed (R-axis): 200 mm/s
- Positioning Accuracy (X1-axis): 0.01 mm
- Positioning Accuracy (R-axis): 0.1 mm
- Repeatability (X1-axis): ±0.03 mm
- Repeatability (R-axis): ±0.1 mm
- Max. Tool Length: 3060 mm
- Machine Weight: 7000 kg
