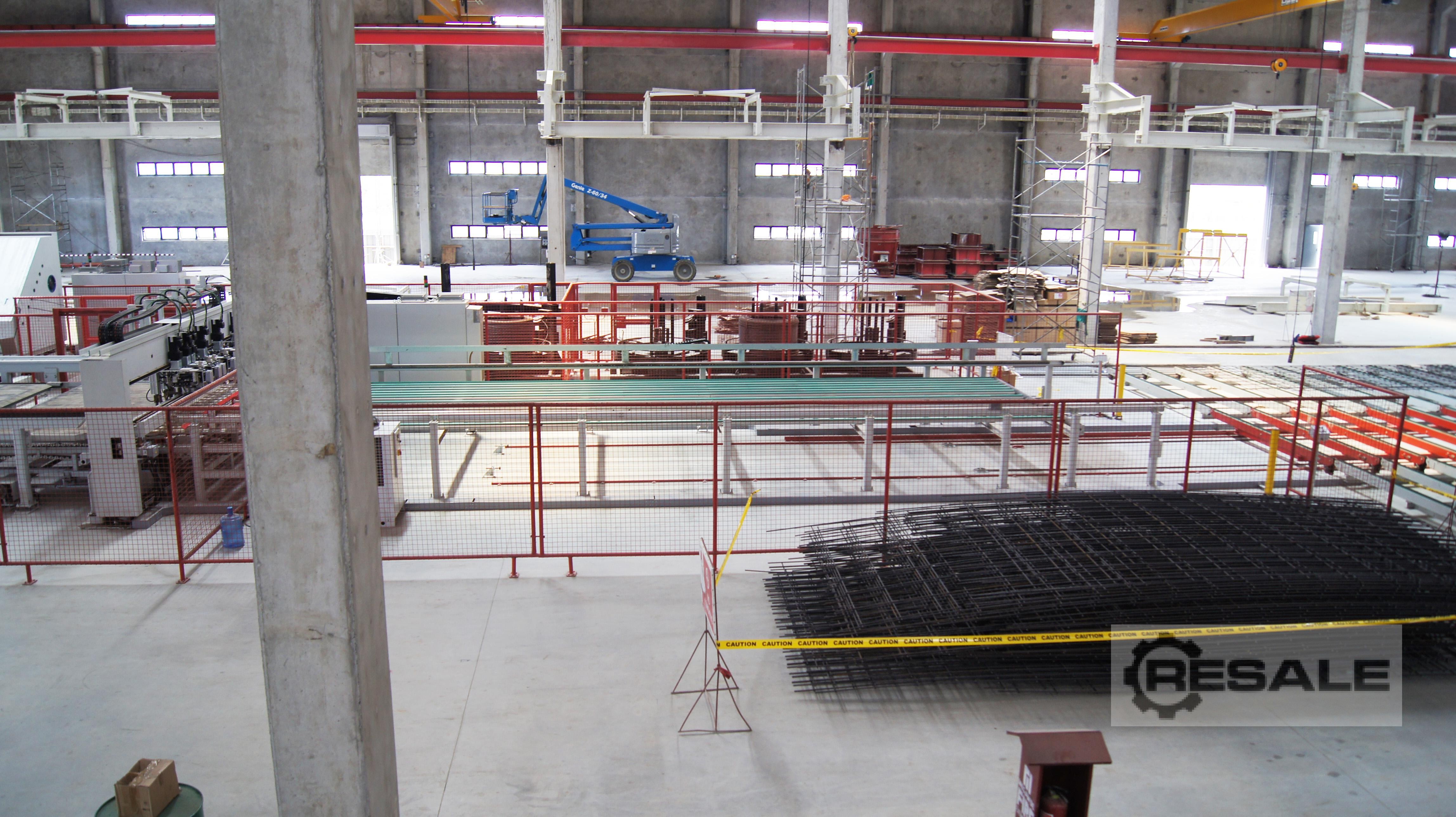

PROGRESS MESH WELDING M-System Evolution Model 2012 M25576
• MMR – Straightening Machine Model 2012
• SWR – 6 Welding Heads Model 2012
Max mesh size: 3.5 m width and 9.0 m length
Cross & length wires diameter: 6, 8, 10, 12, 16mm
Mesh characteristics:
Width: up to 3,500mm, Length: up to 9,000mm
Min. Width: 500mm, Min. Length: 1,000mm
Max. Bar Length: 9,000mm, Min. Bar Length: 500mm
Bar Length Tolerance: +-5mm, Bar Placing Accuracy: +- 10mm
Crosswire Diameter: 6, 8, 10, 12 and 16mm
Line Wire Diameter: 6, 8, 10, 12 and 16mm
Bar on Bar Welding: 12mm on 12mm
Placement Angle of Bars: 0° or 90°
Minimum Flying End Length: 25mm
A Bar must have at least two welding nodes
Only one Bar per receiver is permissible
Standard centres:
Cross Wires: Infinetely variable (minimum 35mm)
Line Wires: Multiple of 25mm
Minimum Centres:
Cross Wires: 25mm
Line Wires: 25mm
Power Supply:
Connected load welding: 120kW
Connected load other equipment: 65kW
Supply voltage: 440V AC/60Hz
Control tension: 24V
Connection Power:
• Straightener (MMR), 65KWA, 3 x 440 +N + PE / 60 Hz, FUSING
120A,
Cable cross section 5 x 50 mm²
• Welding system (SWR) 120KWA 3 x 440 +N + PE / 60 Hz FUSING
250A,
Cable cross section 5 x 150 mm²
Performance:
Reinforcement mats with different grids, dimensions and wire diameters
can be manufactured individually according to CAD specifications. The
modular system of the welding plant enables precise implementation of
customer-specific requirements. Each reinforcement mat is produced
without waste and without time-consuming cutting, as is usually the
case with standard mats.
