x-Weg:7320 mm
y-Weg:530 mm
z-Weg:510 mm
Machine-Details
Stock-No. 1105-04062

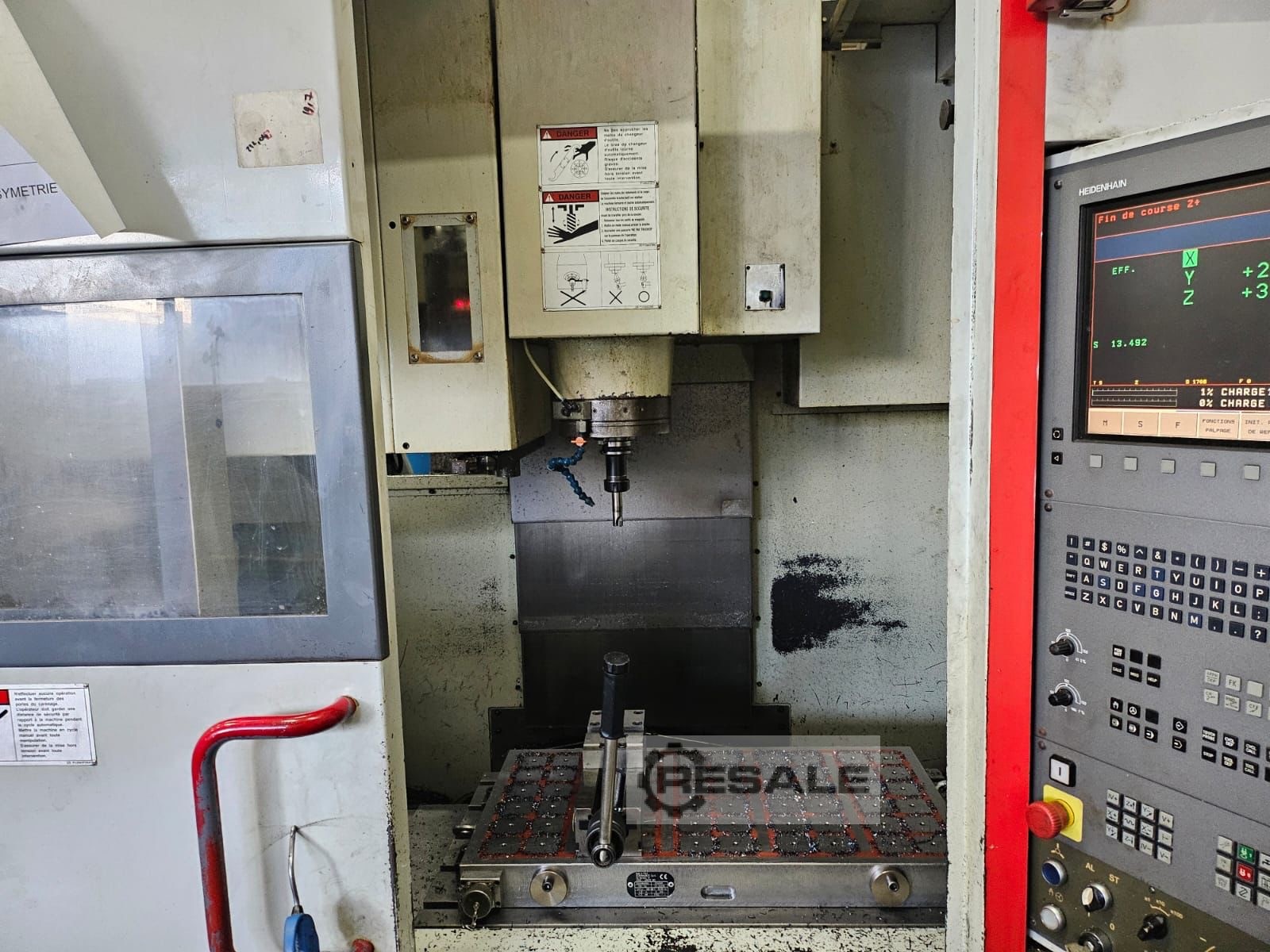

Type of machine Machining Center - Vertical
Make QUASER
Type MV 154 P
Year of manufacture 2009
Type of control CNC
Storage location FRANKREICH
Country of origin taiwan
Delivery time immediately
Freight basis EX WORK
Technical details
x-travel 762 mm
y-travel 530 mm
z-travel 500 mm
tool taper BT 40
spindle drive 25 kW
spindle turning speed range 60 - 10000 U/min
tool change unit 30-fach BT 40
tool changing time 4 sec
table-size 900 X 500 mm
table load capacity - central/maximum 500 kp
rapid travel x/y/z 30 m/min
feeds x/y/z -stepless 20000 mm/min
total power requirement 40 kVA
Additional information

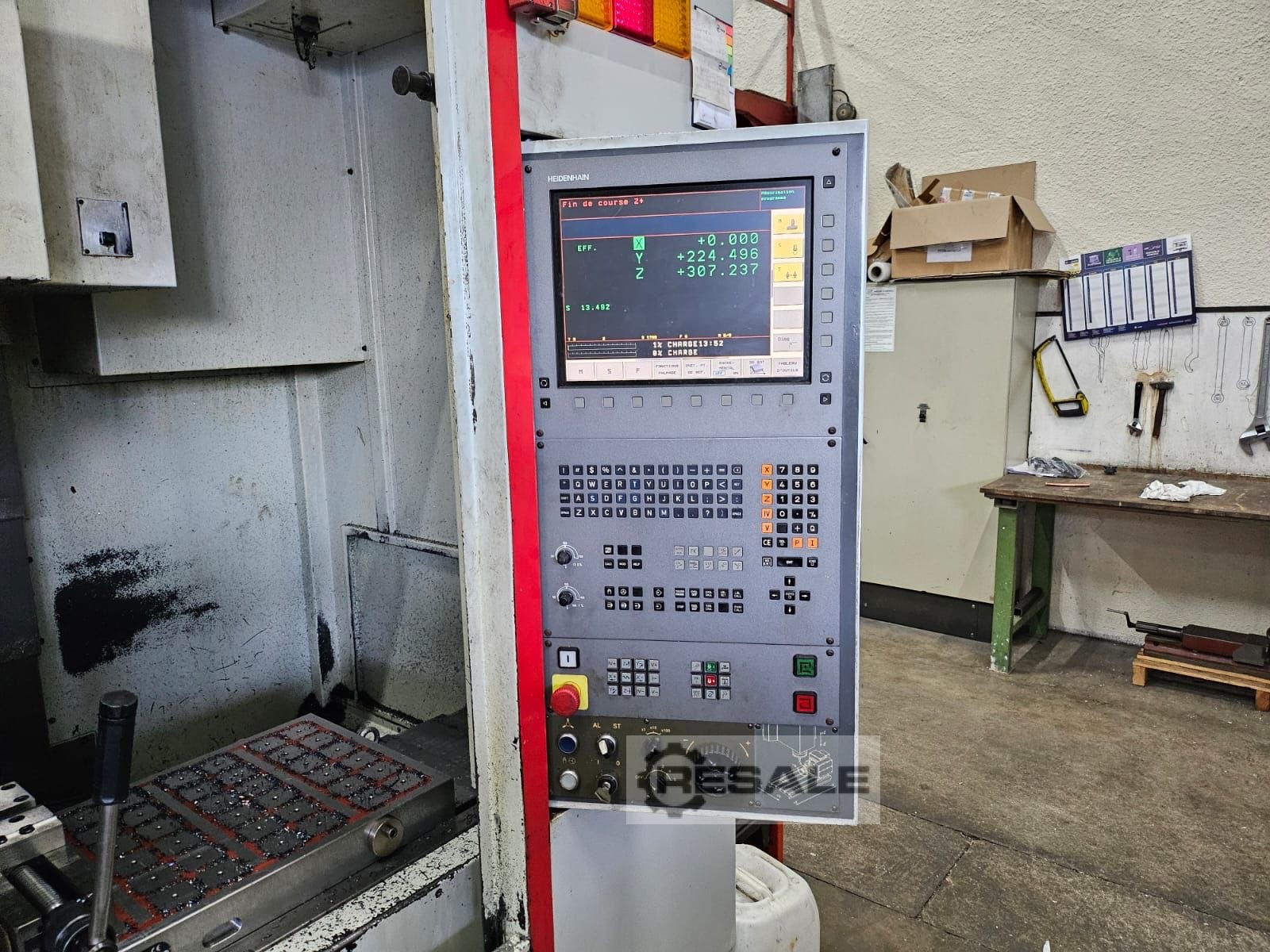

NC control CNC HEIDENHAIN I TNC 530
complete covering,
A.T.C. for 30 tools BT 40
COOLING TROUGHT THE SPINDEL 20 BARS
TABLE 900 X 500
25 KW 10000 RPM
CHIP CONVOYER
Verkäufer Angebot Nr. resale 166895837
Frankreich
