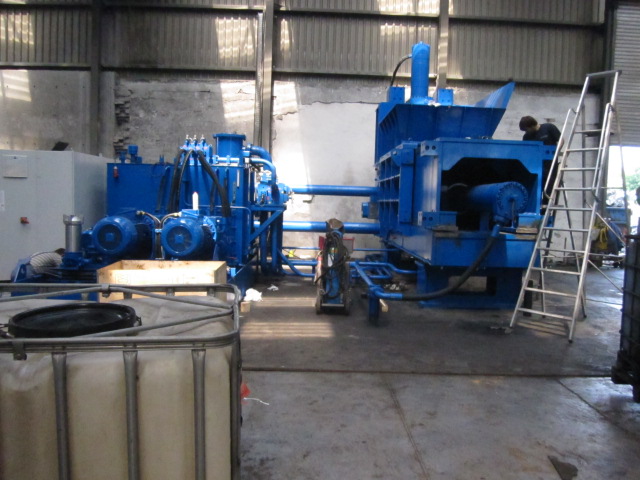

RECUPERMA RECU 3

Manufacturer: Recuperma

Model: RECU 3

Year of Manufacture: 2014

Type of Machine : Scrap Baling Press

Technical Specifications

- Bale Size: approx. 400 x 400 mm
- Main Drive: 2 x 90 kW (400V, 50Hz)
- Overall Dimensions (L x W x H): 6950 x 8900 x 5500 mm
- Press Box (open): 2300 x 1500 x 1300 mm
- Total Weight: approx. 77.5 t (without oil)
- Color: Blue

Hydraulic System

- Operating Pressure: 315 / 335 bar
- Hydraulic Power Unit: Recuperma
- Control Valves: Moog
- High-Pressure Pump: A4V Axial Piston Variable Pump
- Tank Volume: approx. 5000 litres hydraulic oil
- Oil Grade: HLP 46
- Auxiliary Drive: approx. 15 kW cooling and filtration

Cylinder Configuration

- Pre-compaction Cylinder: diameter 280/200 mm x 2400 mm stroke
- Intermediate Compaction Cylinder: diameter 320/250 mm x 955 mm stroke
- Final Compaction Cylinder: diameter 380/280 mm x 2325 mm stroke
- Door Cylinder: diameter 160/110 mm x 575 mm stroke

Additional Equipment

- Travel measurement sensors
- Radio remote control
- Central lubrication system
