Ryobi 756GP 6-color offset printing press with inline UV varnish and
IR drying unit
66 mil
Year of Manufacture: 2012
Max. Sheet Size:
788 × 600 mm (31.02″ × 23.62″)
Straight Printing Mode: 279 × 200 mm
Perfecting Mode: 325 × 295 mm
Max. Printing Area:
Standard (S-Type): 765 × 545 mm (30.12″ × 21.46″)
Paper Thickness: 0.04–0.6 mm
Printing Speed 16,000 sheets/hour
Coating Unit:
Inline coater for aqueous or UV varnish, extra after 2 and after 6
unit UV Lamps, delivery 2 UV Lamps
Drying Options:
Infrared (IR) dryer. 2 Lamps in delivery
Interdeck UV curing unit 2 Lamps in Delivery 2 extra lamps 2 and 4
unit
Feeding & Delivery System:
Vacuum feeder
Ultrasonic double-sheet detector
Skew control
Anti-static system
Electronic registration system
Automation & Controls

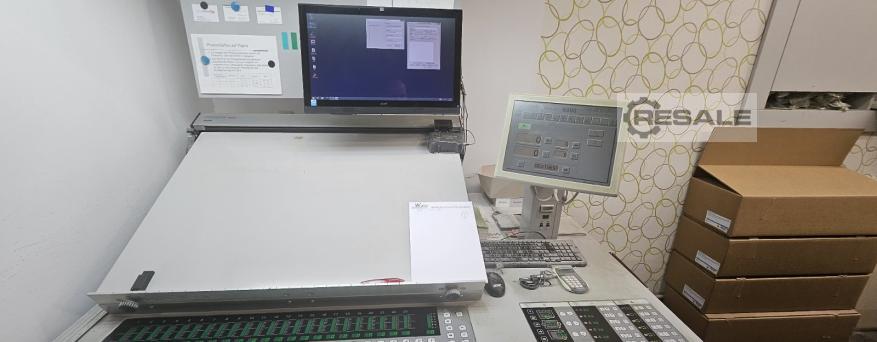

Control Console:
PCS-G (Ryobi Print Control System) for centralized operation
Automation Features:
Ink presetting (Ink Volume Setter)
PDS or PDS-E for density control
Job Manager software
CIP4/JDF compatibility
Auto blanket and ink roller, cylinder washing
Quality control scanner
Register adjustment
UV integration
Remote diagnostics & maintenance
Coating System Details
Chamber-type doctor blade with automatic cleaning
Drying :
IR drying
UV interdeck systems
Extended delivery with optional dryer module
Summary Table
Located: Europe Western
Deutschland
41460 Neuss/düsseldorf
