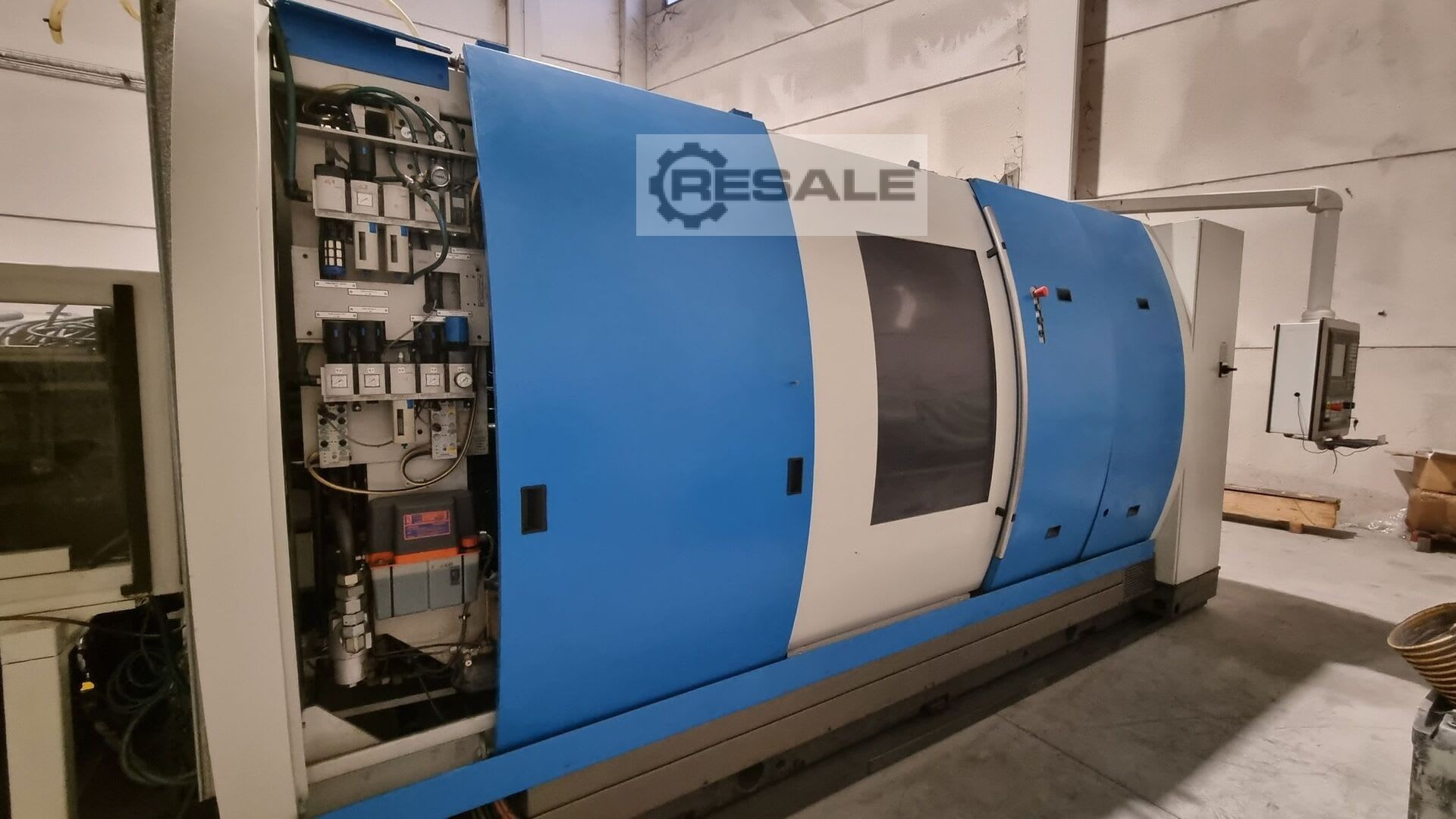

Mehrspindeldrehautomaten SCHÜTTE SC9-26

Excellent condition - Fully operational - Loading / Transport possible!

Workpiece:

max. clamping diam. 26 mm

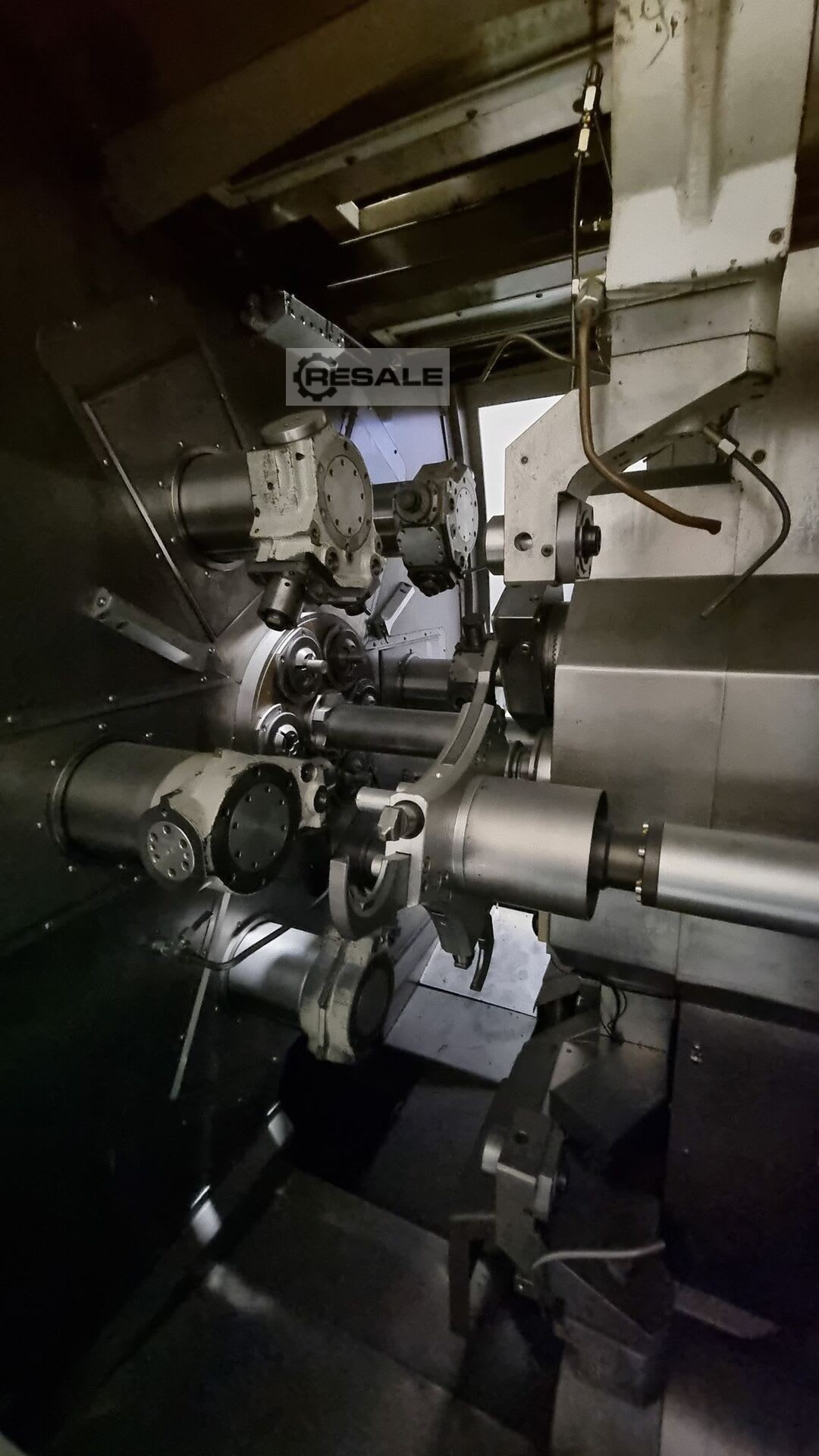

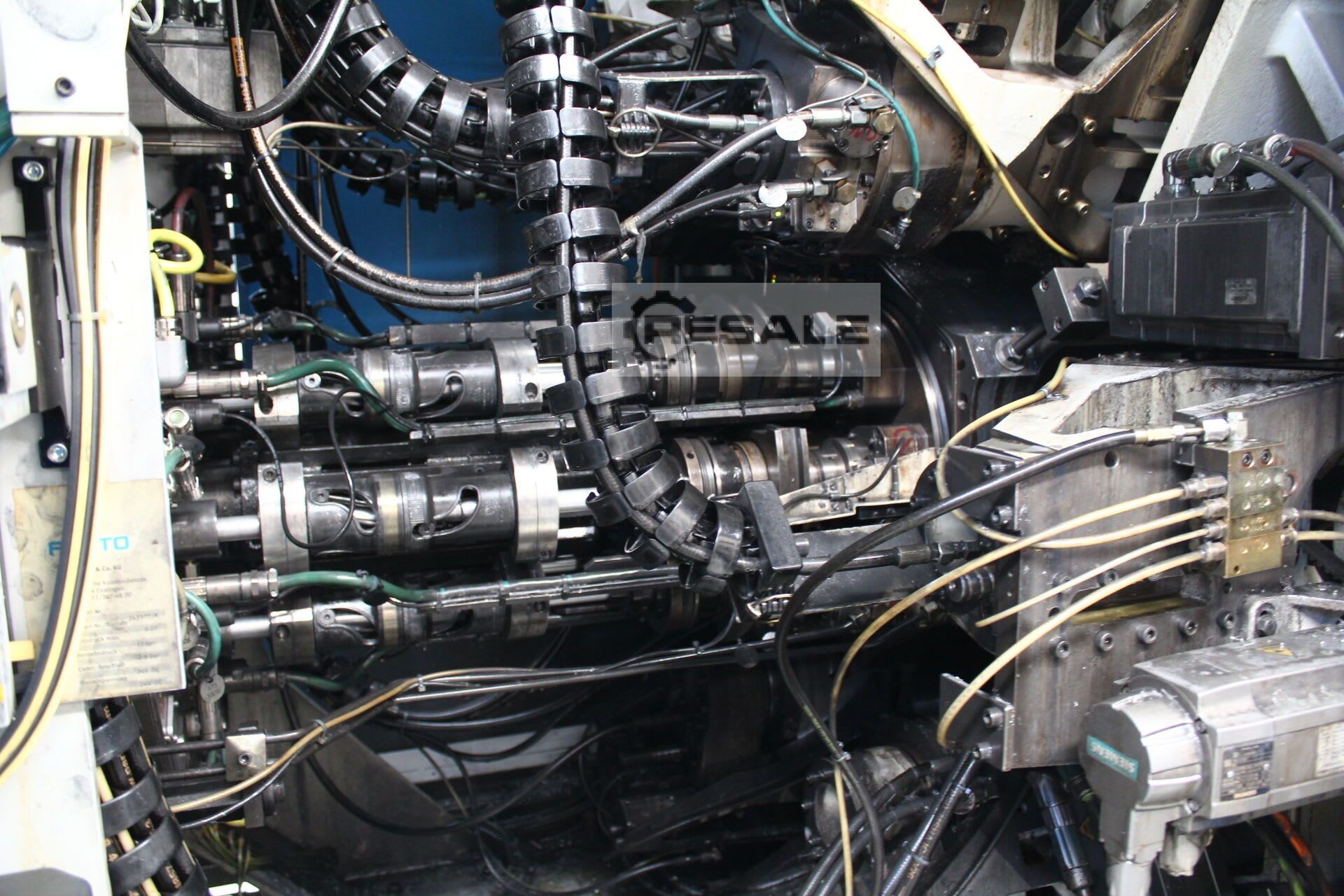

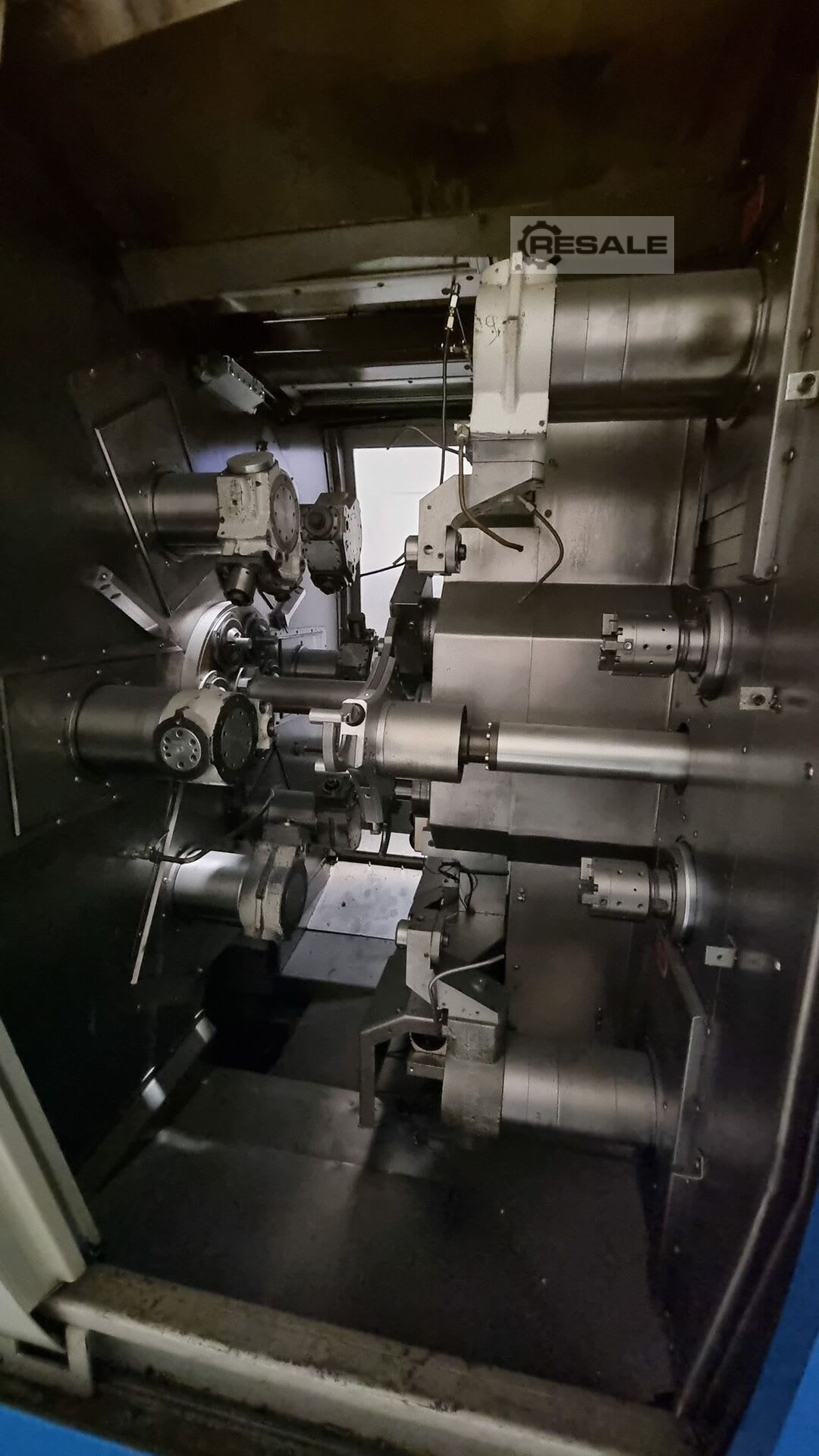

9 main spindles:
Spindle 1 to 6: rated torque 18,5 Nm
max. torque 50 Nm
max. speed 7,000 rpm
Spindles 7 to 9: rated torque 15 Nm
max. torque 30 Nm
max. speed 10,000 rpm
Travels (cross slide):

X (spindles 1 to 6): 70 mm
X (spindles 8 to 9): 110 mm
Z: 125 mm
Feeds: 30 m/min
Feed power: 3kN
Travels (longitudinal slide):

X: 16 mm
Z: 300 mm
Feed power 3kN
Feeds: 30 m/min

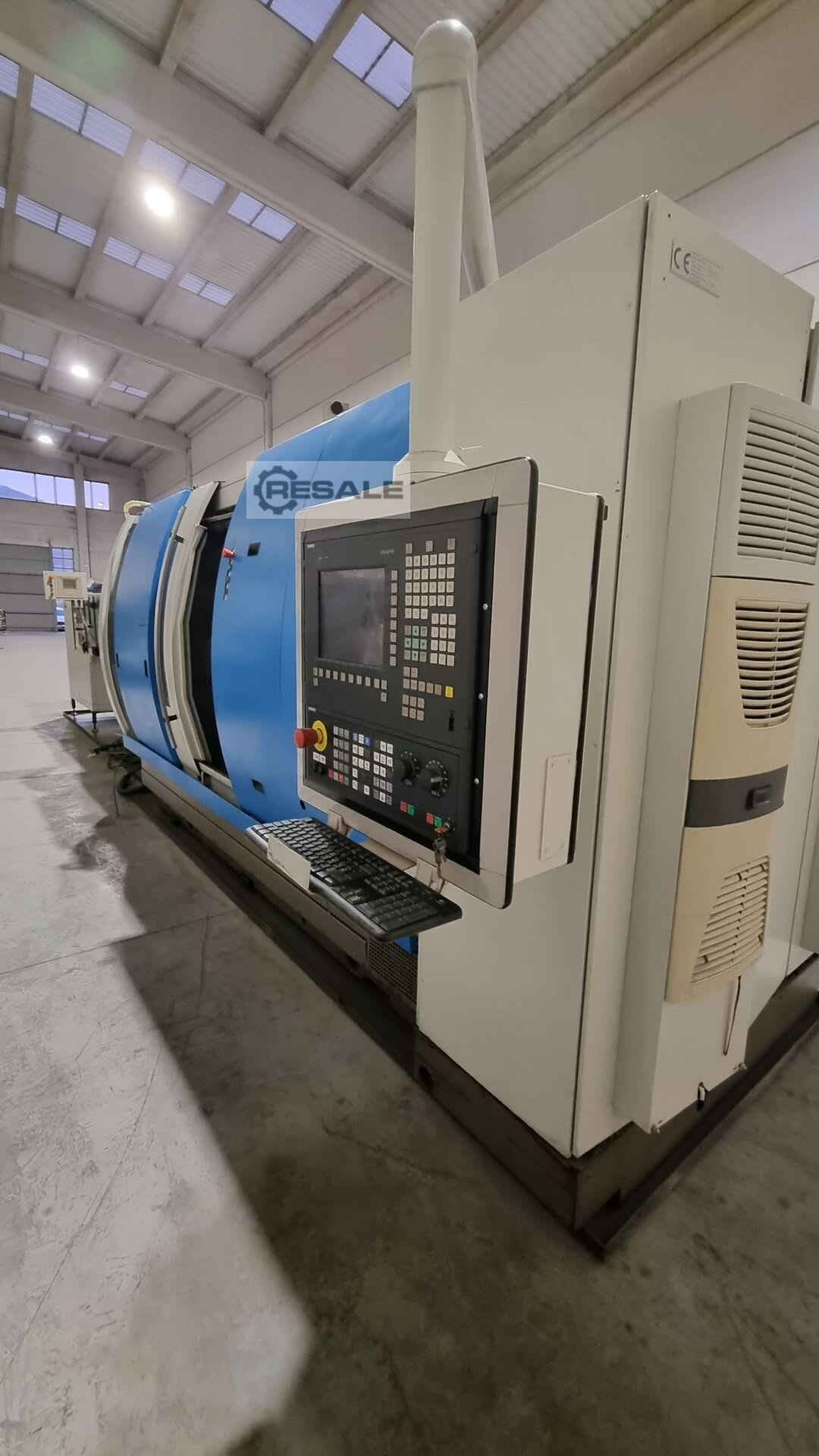

CNC Siemens 840 D

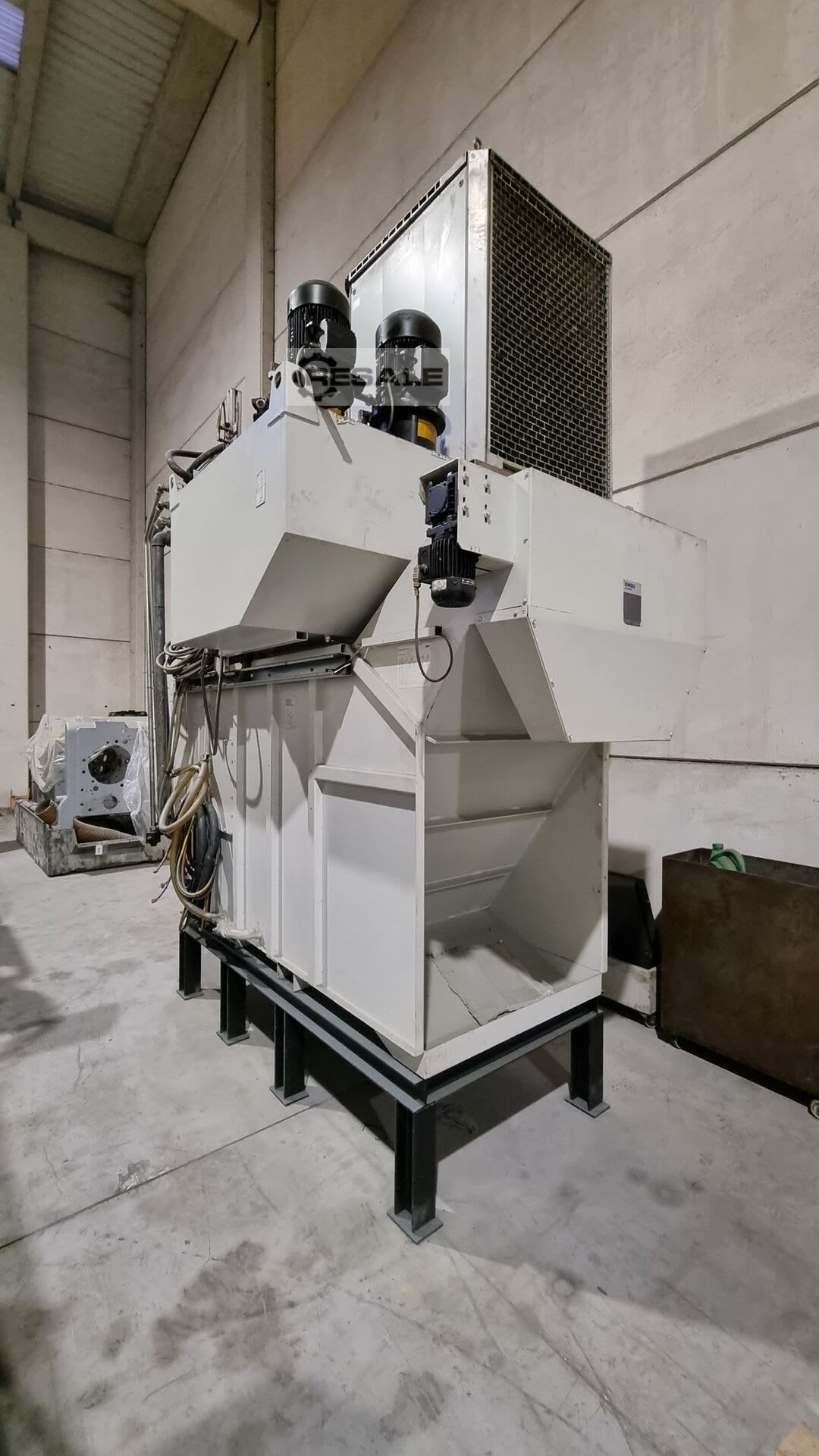

Swarf conveyor and chiller 21,1 Kw
Knoll chiller

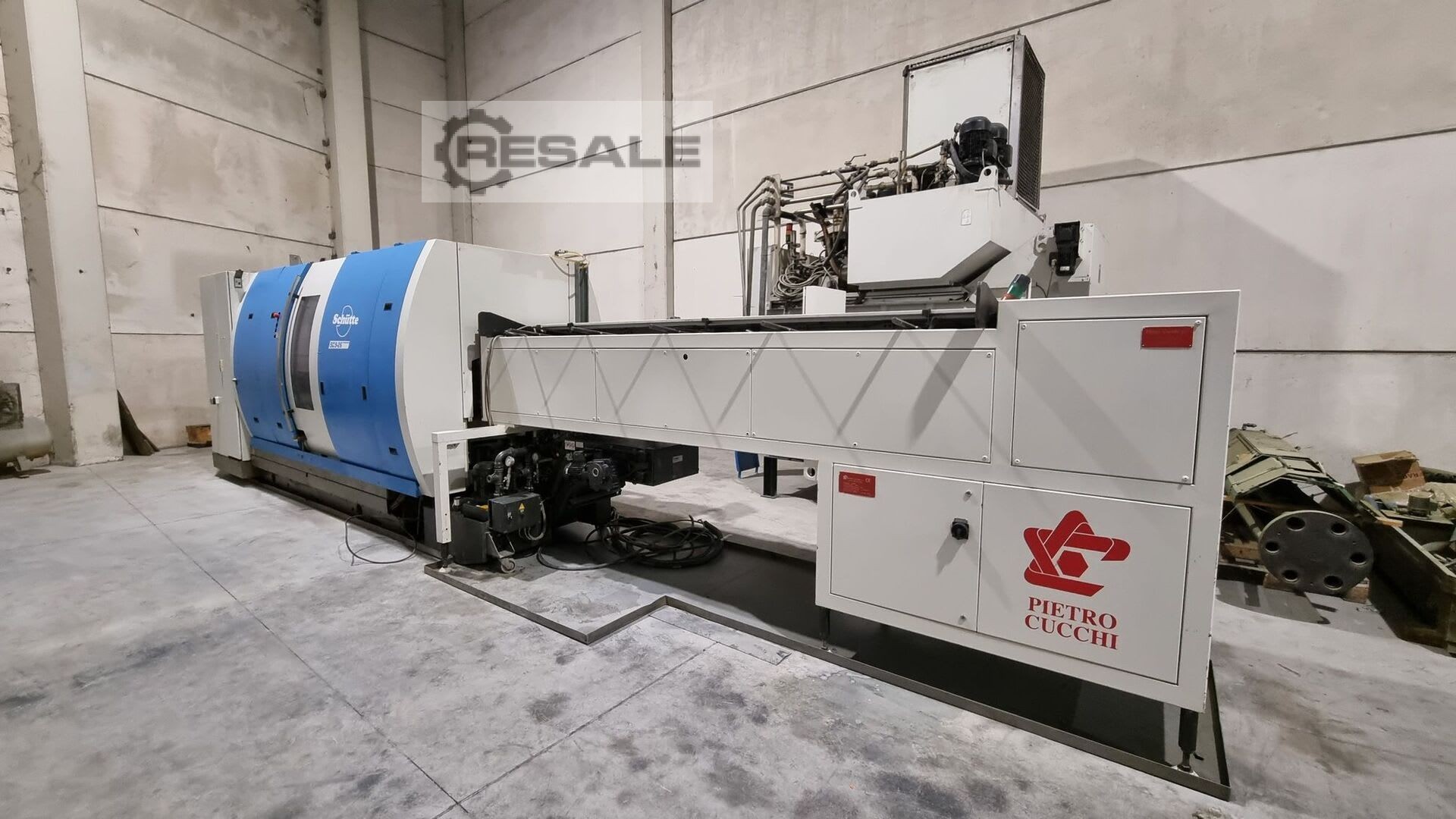

With CUCCHI compact bar feeder 26 mm (rounded), 19 mm (squared), 22 mm (hexagonal)
bar length: 4200 mm
