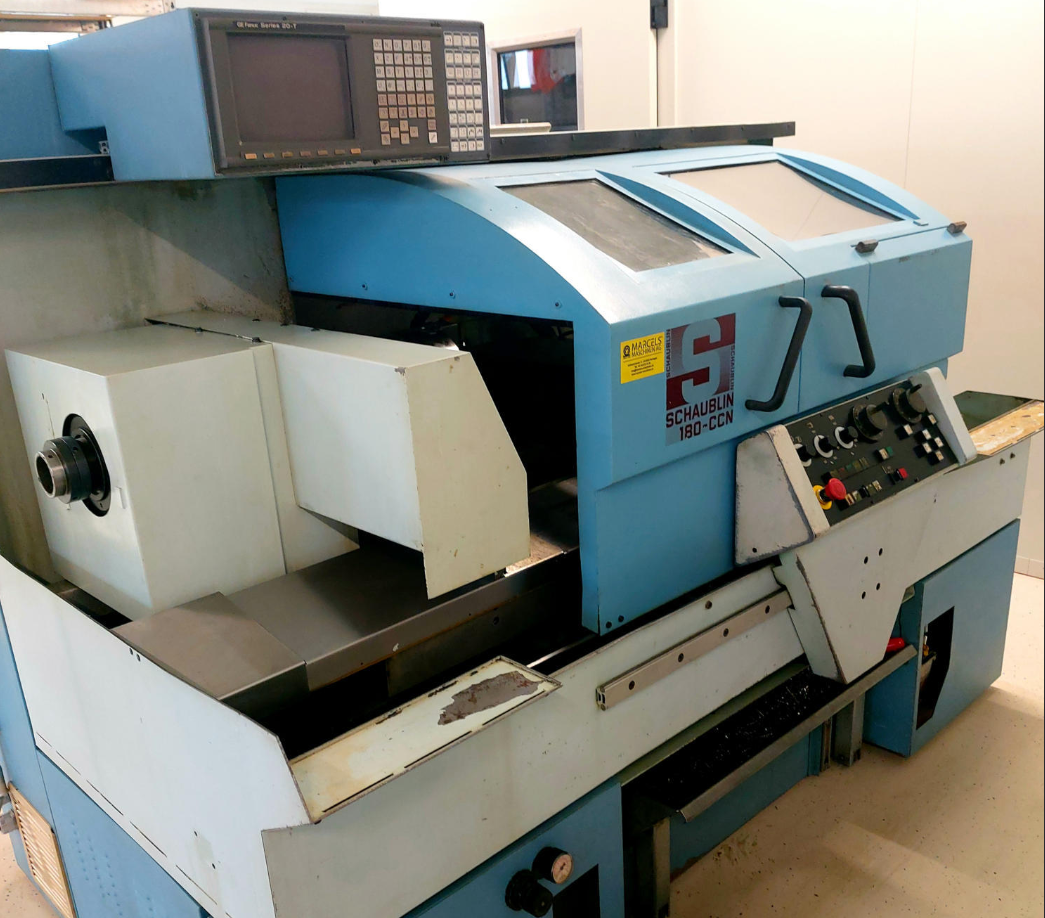

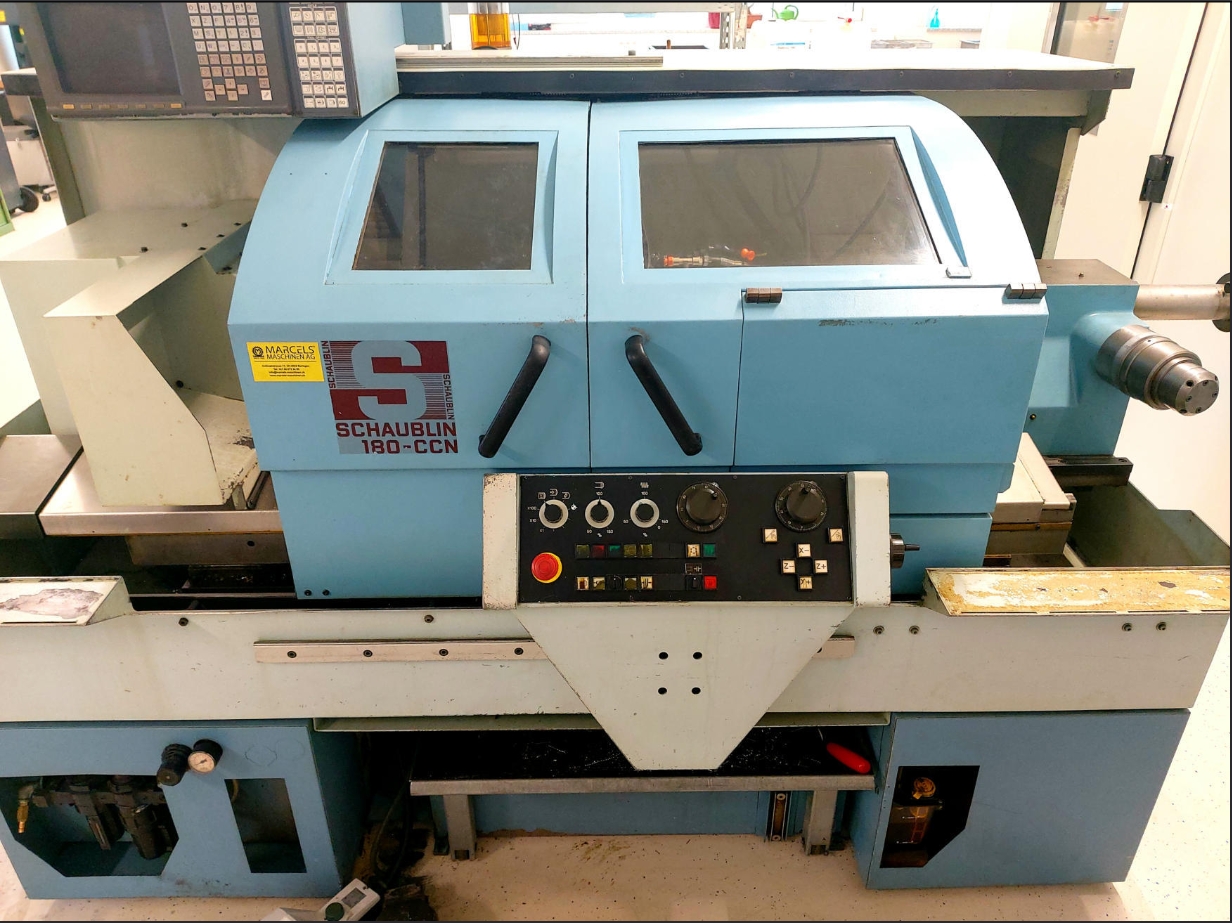

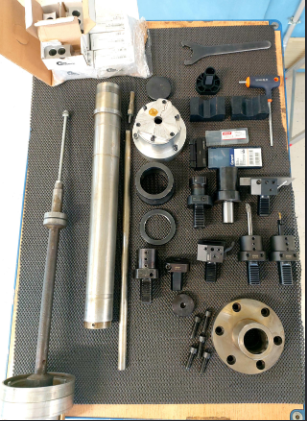

SCHAUBLIN 180-CCN

Manufacturer: Schaublin

Model: 180-CCN

Year of Manufacture: 1997

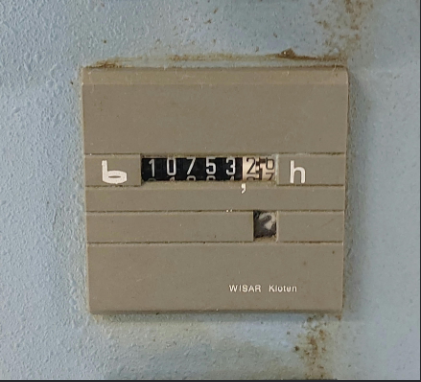

Spindle Hours: 10,753 h

Machining Capacities

- Max. turning diameter over the bed (with revolver only): 330 mm
- Max. turning diameter over the cross slide: 160 mm
- Max. admissible diameter over the bed: 430 mm
- Spindle centre height over cross slide: 83 mm
- Max. distance between centres: 650 mm
- Max. workpiece weight - with spindle A2-5: 25 kg
- Max. workpiece weight - with spindle A2-6: 35 kg

Spindle

- Spindle nose ISO: A2-5 or A2-6
- Collet chuck compatibility (Schaublin): B45 / F48 (A2-5) | F66 (A2-6)
- Max. bar diameter with B45 collet: 36 mm
- Max. bar diameter with F48 collet: 42 mm
- Max. bar diameter with F66 collet: 60 mm
- Auto collet chuck through bore - A2-5: 170 mm | A2-6: 210 mm
- Collet clamping force at 5 bar - A2-5: 2700 daN | A2-6: 3400 daN
- AC motor drive: 15 / 18.5 kW (100% / 50% DE)
- Motor torque: 140 / 180 Nm
- Spindle speed range - A2-5: 30 to 5000 rpm
- Spindle speed range - A2-6: 30 to 4000 rpm

Cross Slide (X and Z Axes)

- X-axis travel: 220 mm
- X-axis resolution: 0.0005 mm (on radius)
- X-axis AC motor torque: 3 Nm
- X-axis ballscrew: 32 x 5 mm pitch
- Z-axis usable travel with revolver: 650 mm
- Z-axis resolution: 0.001 mm
- Z-axis AC motor torque: 6 Nm
- Z-axis ballscrew: 32 x 10 mm pitch

Turret / Tool System

- Turret type: Fixed-tool revolver
- Number of tool positions: 8
- Tool holder mounting: VDI 30 (normalised)
- Full VDI system usable without restriction
- Max. tool shank cross-section: 20 x 20 mm
- Integrated coolant supply, indexing in both directions of rotation

Feed Rates

- Working feed rates Z / X axes (stepless): 0 to 5000 mm/min
- Rapid traverse: 8 / 10 m/min
- Feed force at 100% DE - Z / X axes: 420 / 670 daN

Electrical Data

- Mains supply: 3 x 400 V / 50 Hz (380 V indicated on nameplate)
- Rated current: 44 A
- Max. permissible variation: +/- 5%
- Input current: 63 A
- Installed capacity: 24 kVA / 24 kW
- Control voltage: 220 V

Pneumatic Requirements

- Air pressure: 5 to 7 bar
- Connection: 3/8 inch G
- Air quality: Clean and dry
- Average air consumption: 4 to 6 m3/h

Dimensions and Weight

- Machine dimensions (L x W x H): 2210 x 1290 x 1670 mm
- Approximate weight: 2400 kg
- Spindle centreline height from floor: 1080 mm
- Floor load: 950 kg/m2
